All-O-Matic SW-325 DC 1/2HP Swing Gate Opener (Mount Not Included) | All-O-Matic SW-325 DC 1HP Swing Gate Opener

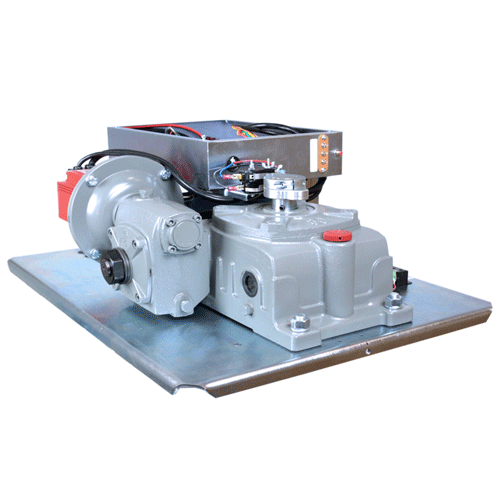

All-O-Matic SW-325 DC 1HP Swing Gate Opener - motor construction

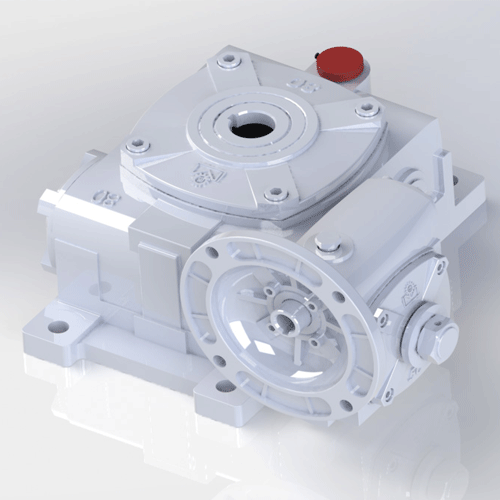

All-O-Matic SW-325 DC 1HP Swing Gate Opener - gearbox

All-O-Matic SW-325 DC 1/2HP Swing Gate Opener (Mount Not Included)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,454.97
Shipping calculated at checkout.

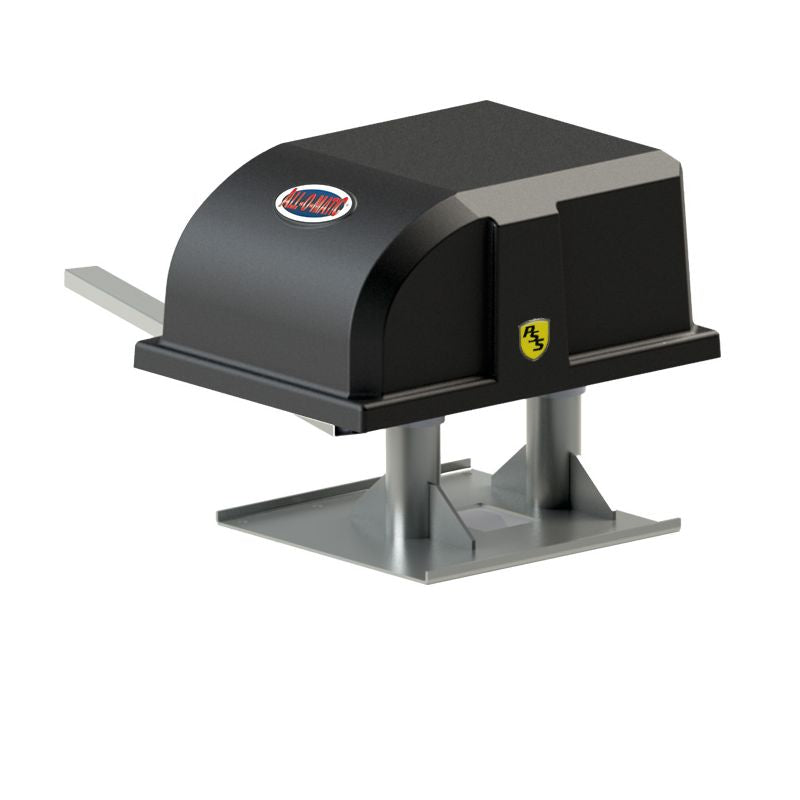

All-O-Matic SW-325 DC Swing Gate Opener

  • Max gate size: 22ft
  • Max gate weight: 2,000 lbs.
  • 1 horsepower motor
  • Low profile

The All-O-Matic SW-325 DC can move both heavy commercial/industrial gates in high traffic locations.  Its underarm was designed to have the gate bracket installed at the bottom of the gate in order to preserve the design of a gate.  Its easy slide quick release arm was designed to make all installation quick and easy. It could either be pad mounted or post mounted.  The type of mount must be specified when you add order to cart.  The All-O-Matic SW-325 DC will run a gate that is a max 2,000Lbs or a max 22 feet.  All-O-Matic DC operators have control boards that offer many features that include: programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.


Limited Warranty: 7 Year Residential, 5 Year Commercial
Classes I, II, III & IV: Classes I, II, III & IV
Motor: 24V Brushless DC (Equivalent to 1/2 HP AC Continuous Duty)
Power Source Options: 120/220 VAC Single Phase and 12/24 VDC for Solar Panel
Gearbox: 750:1 Ratio - Double compound with internal clutch, high precision gears lubricated with synthetic oil
Cover: Rotationally molded plastic (polyethylene)
Opening Speed: 90º opening 14-25 second (electronically adjustable)
Weight: Gates up to 2,000Lbs and up to 22ft
Dimensions: 19” W X 25 ½” L X 21” H
Soft/Start Stop: Soft start/stop (electronic and mechanical) for smooth operation during reversal in mid-travel
Mounting Options: Pad and Post mount options (specify when placing the order)
Built-in Looprack: Hassle free pre wired loop detector install
Batteries: Two 7Ahr Batteries 12VDC
Battery Backup: Integrated Battery Backup up to 250 Continuous cycles
Emergency Release: Easy slide arm release for manual operation with tab for pad lock
