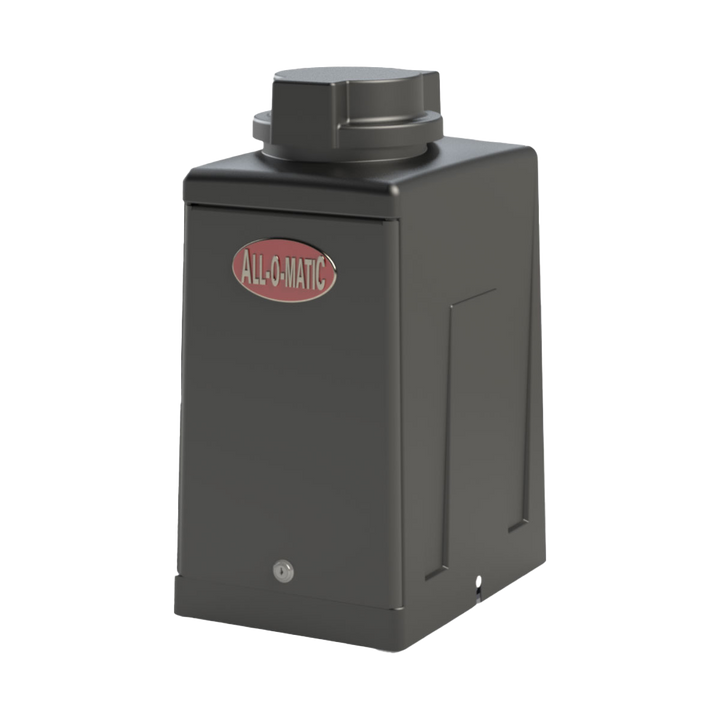

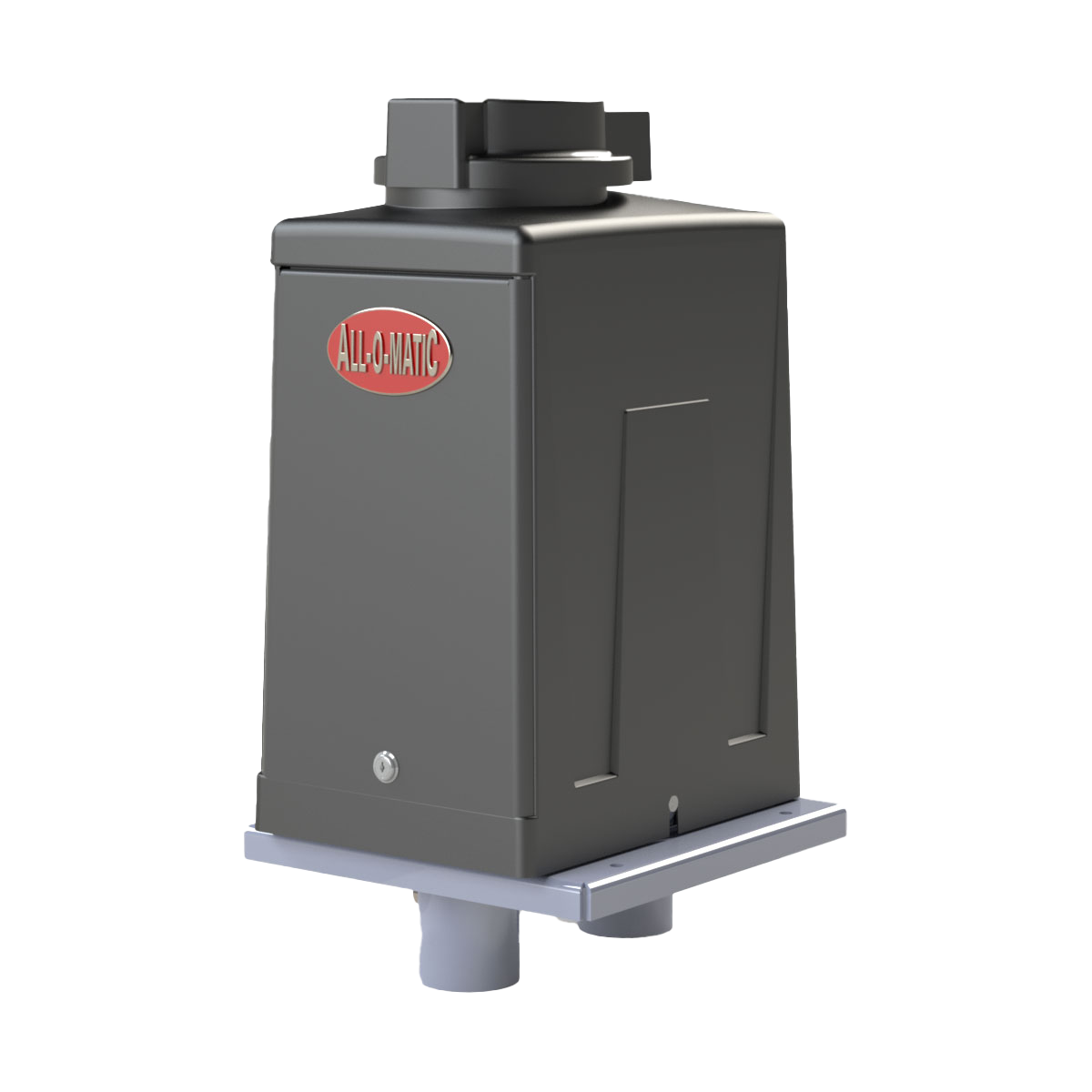

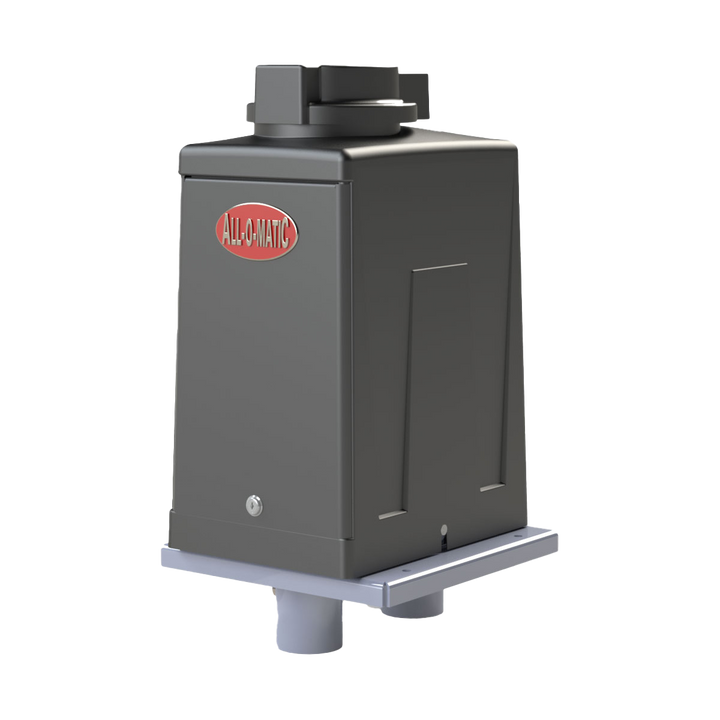

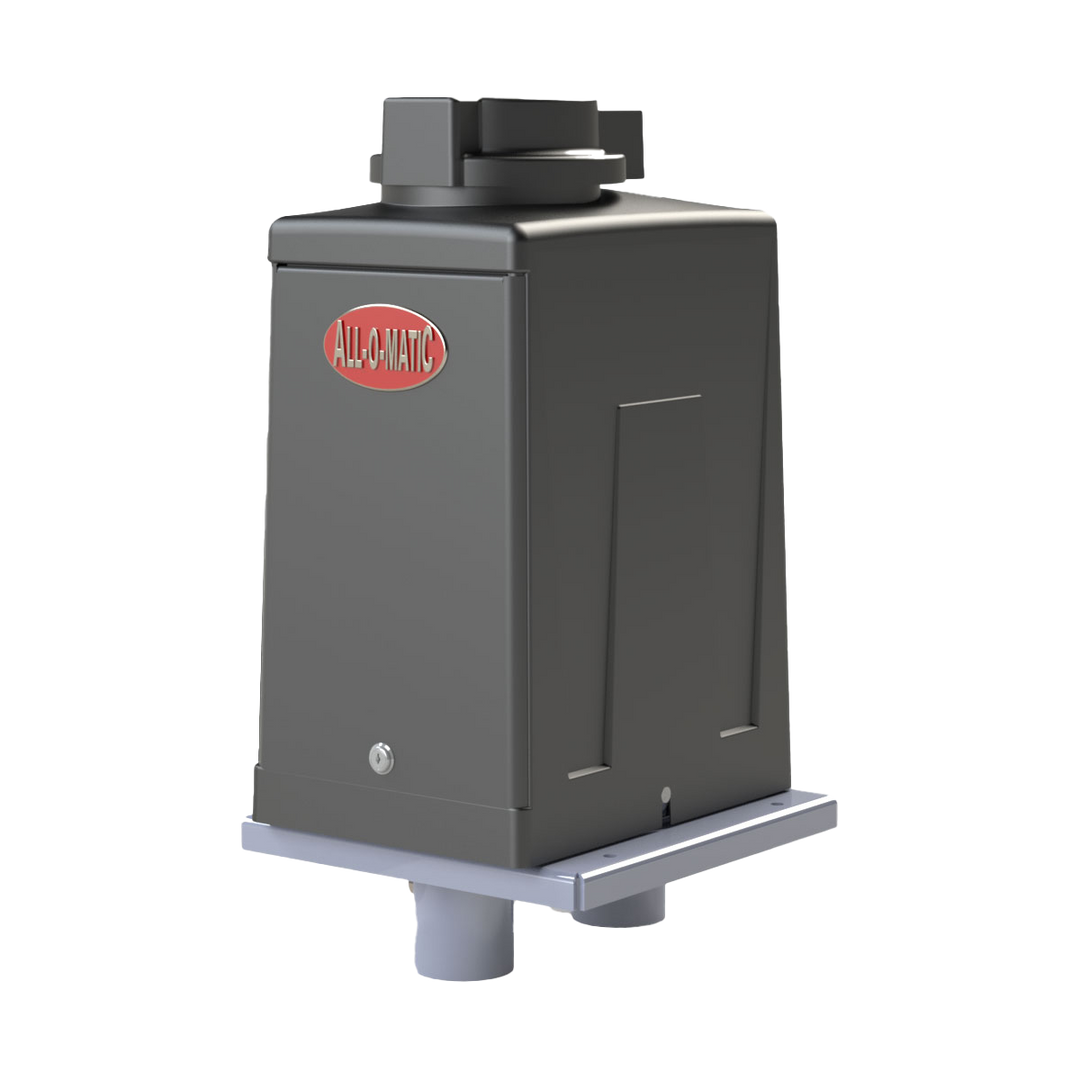

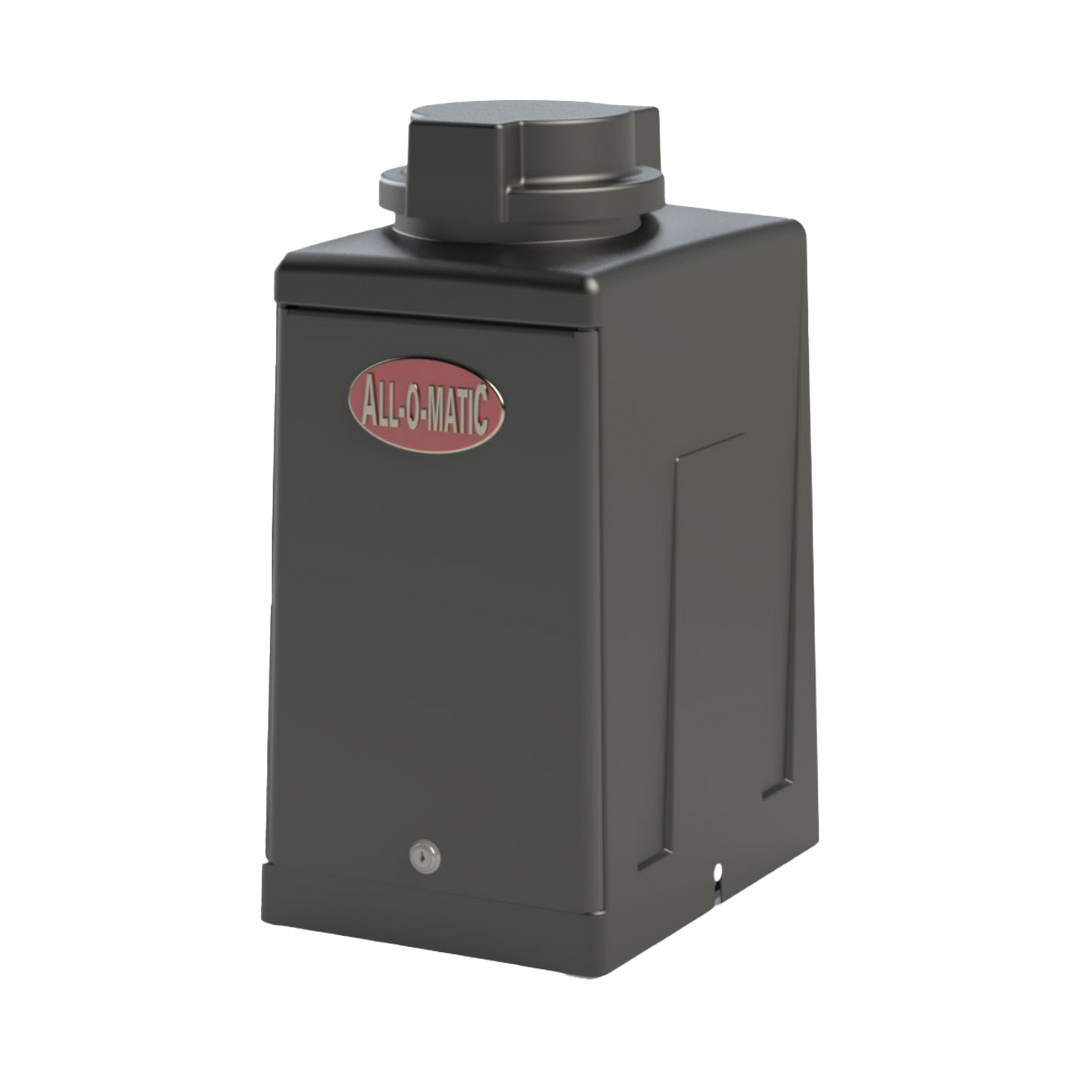

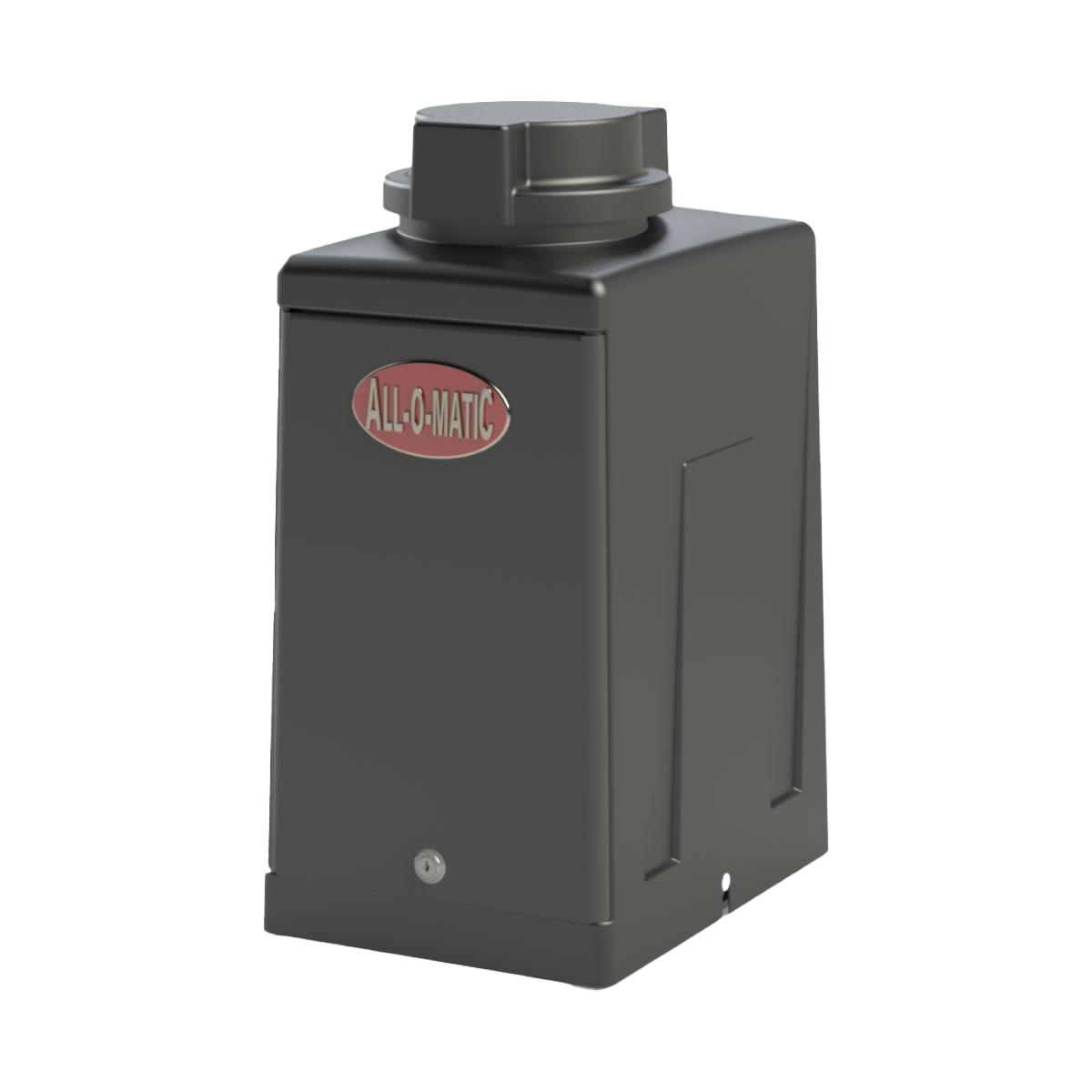

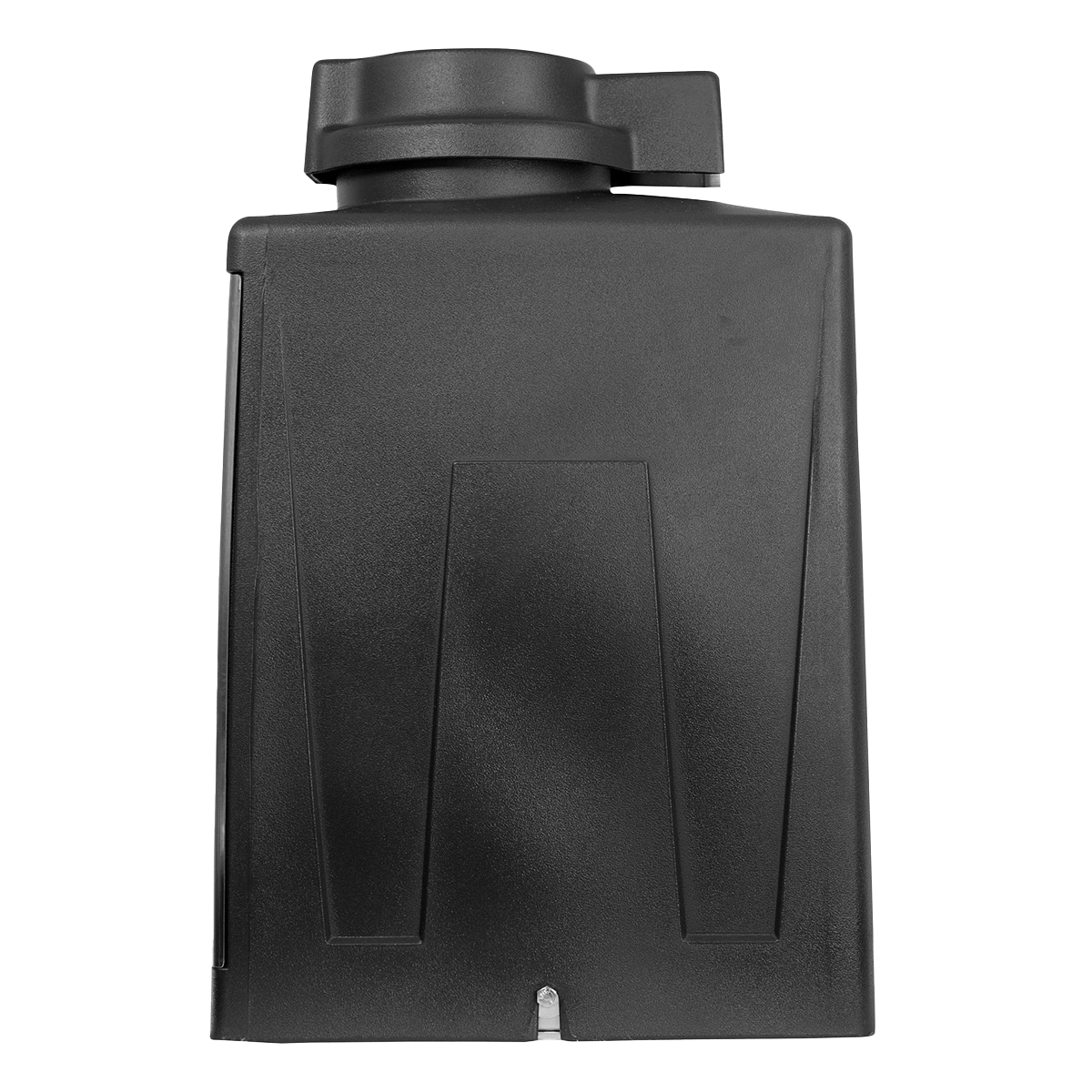

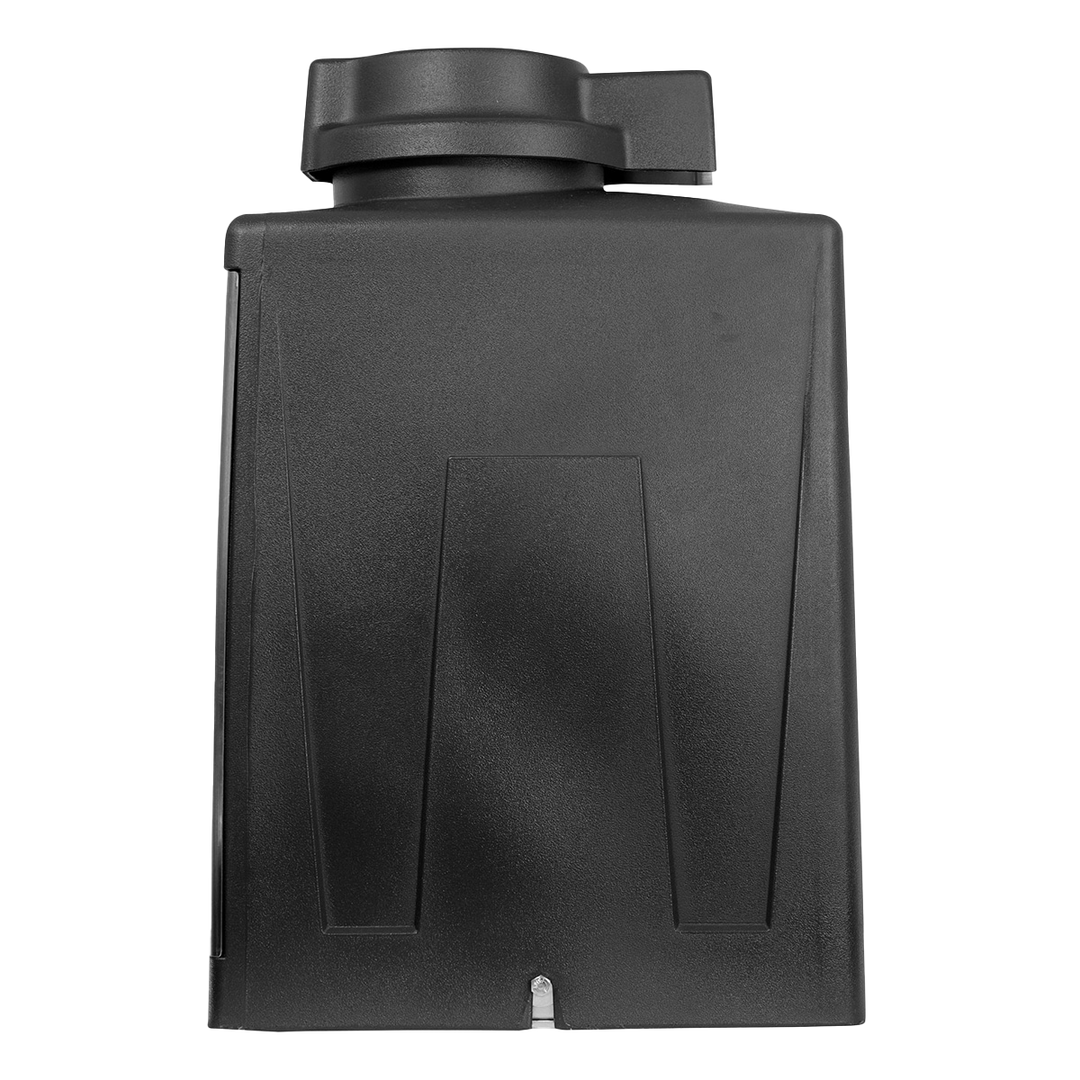

ALL-O-MATIC SW-300 DC PRO Premium Swing Gate Operator with Battery Backup
The ALL-O-MATIC SW-300 DC PRO delivers unrivaled performance for swing gate automation, building on the solid foundation of the SW-300 AC while adding industry-first brushless DC motor technology. This advanced operator handles gates up to 20 feet wide and 1,200 pounds in weight, offering smooth, quiet operation with zero maintenance requirements. With integrated battery backup and solar compatibility, the SW-300 DC PRO ensures continuous operation even during power outages, making it ideal for both residential and commercial applications.
Advanced Brushless Technology
- 24VDC brushless ½ HP motor eliminates maintenance concerns
- Enhanced capacity handles gates up to 1,200 lbs. and 20 feet in length
- Adjustable opening speed from 17-25 seconds per 90° operation
- Continuous duty cycle for high-traffic applications
- Zero maintenance motor design for long-term reliability
Intelligent Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- Integrated wireless primary/secondary capability for dual gate setups
- USB port for diagnostic data extraction and firmware updates
Uninterrupted Operation
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 250 cycles of operation during power outages
- Solar power compatibility for remote installations
- Dual voltage input capability (115/230 VAC)
- Quick release arm for manual operation when needed
Specifications
Gate Capacity
- Maximum Gate Weight: 1,200 lbs.
- Maximum Gate Length: 20 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 24 VDC brushless – ½ HP motor
- Gate Speed: Adjustable 15-30 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: Up to 250 cycles
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 60:1
- Dimensions (W×L×H): 12" × 17" × 25.5"
- Shipping Weight: 140 lbs. + 35 lbs. arm

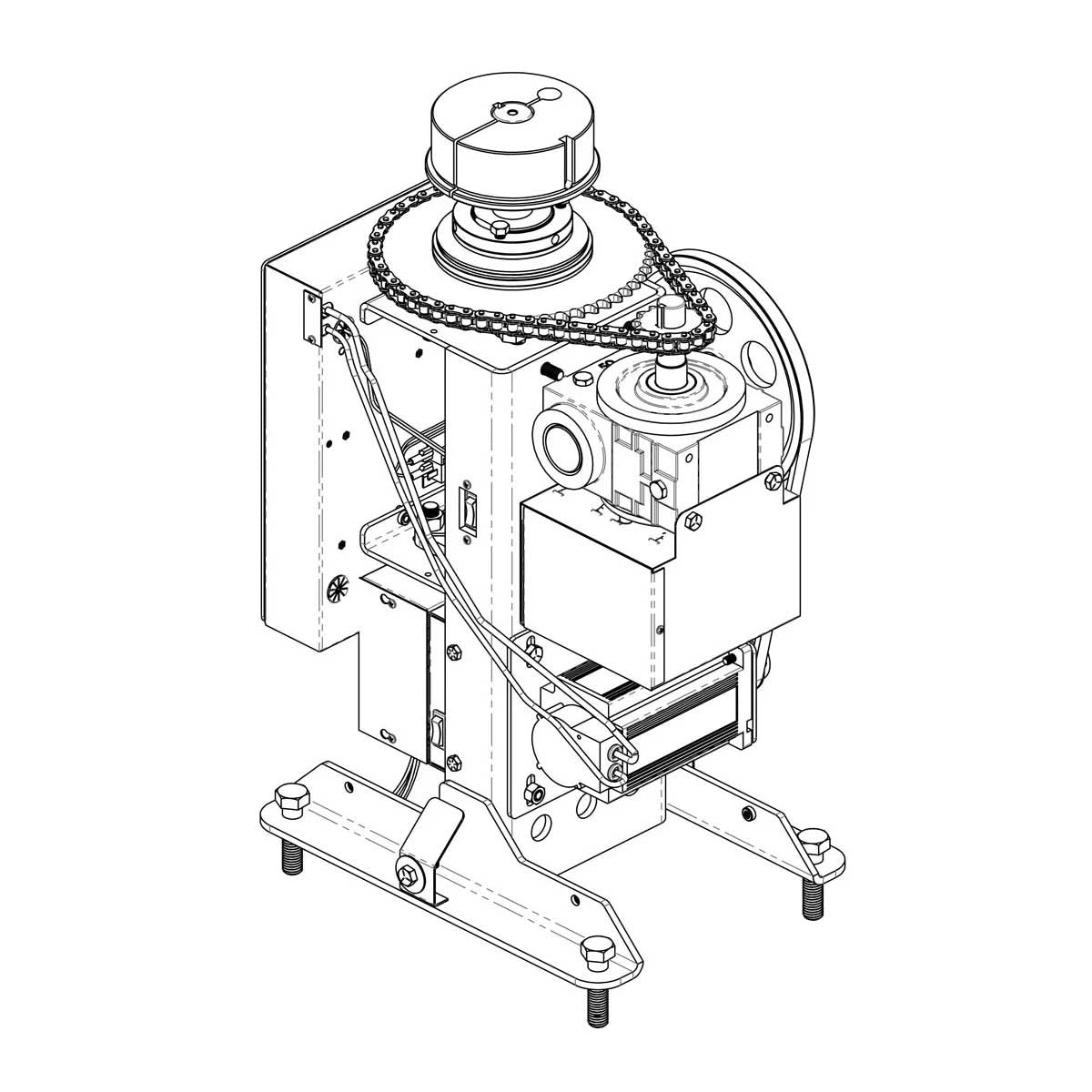

Drive Components
- Belt Size: 4L-370 (AX35)
- Main Sprocket Size: 40A54T×2 with torque limiter
- Chain Size: 40NP
- Gearbox Sprocket: 41B14×7/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 8" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Quick release arm
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- 7-day timer functionality for scheduled operations
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, 24V solar panels, magnetic locks, and gate hinges.
