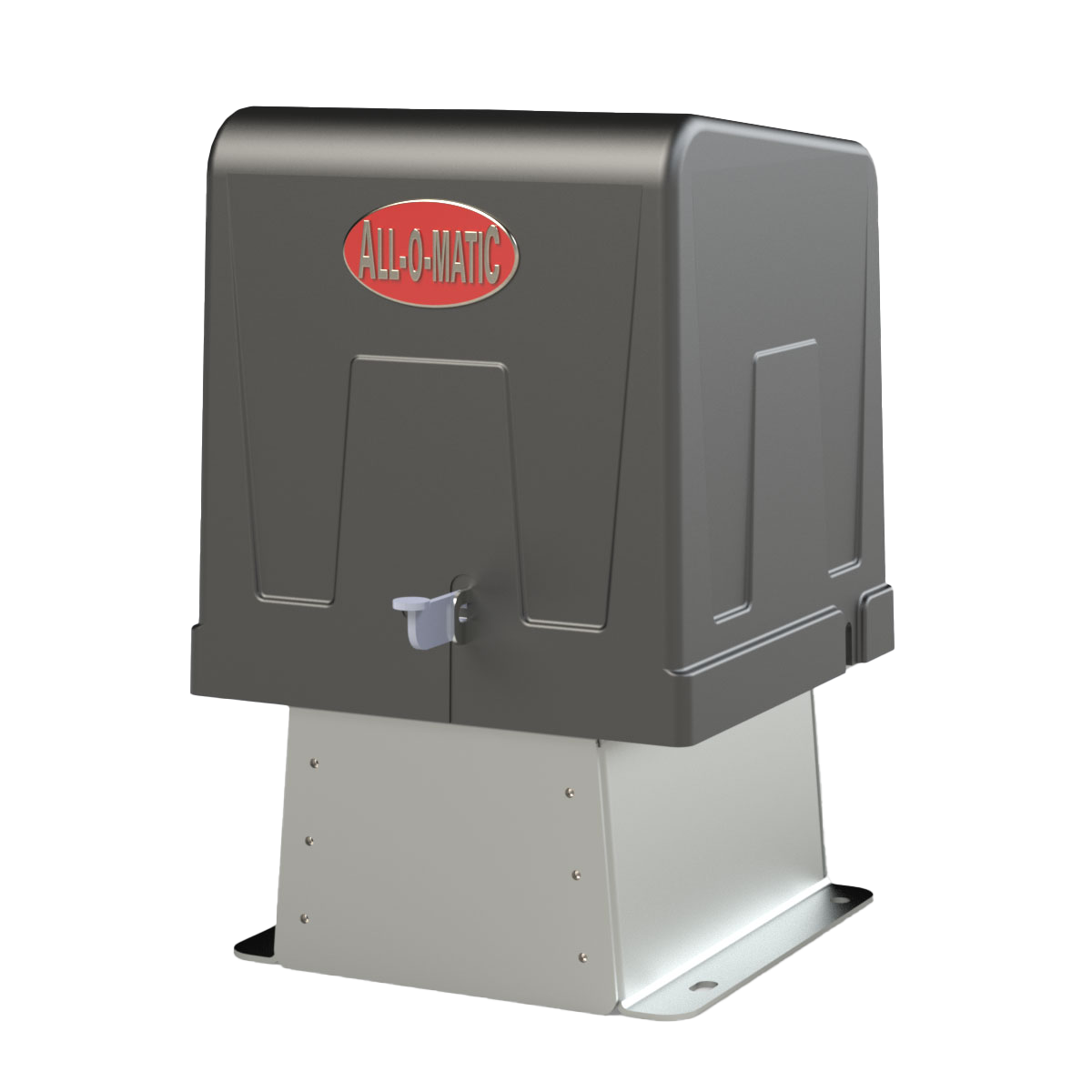

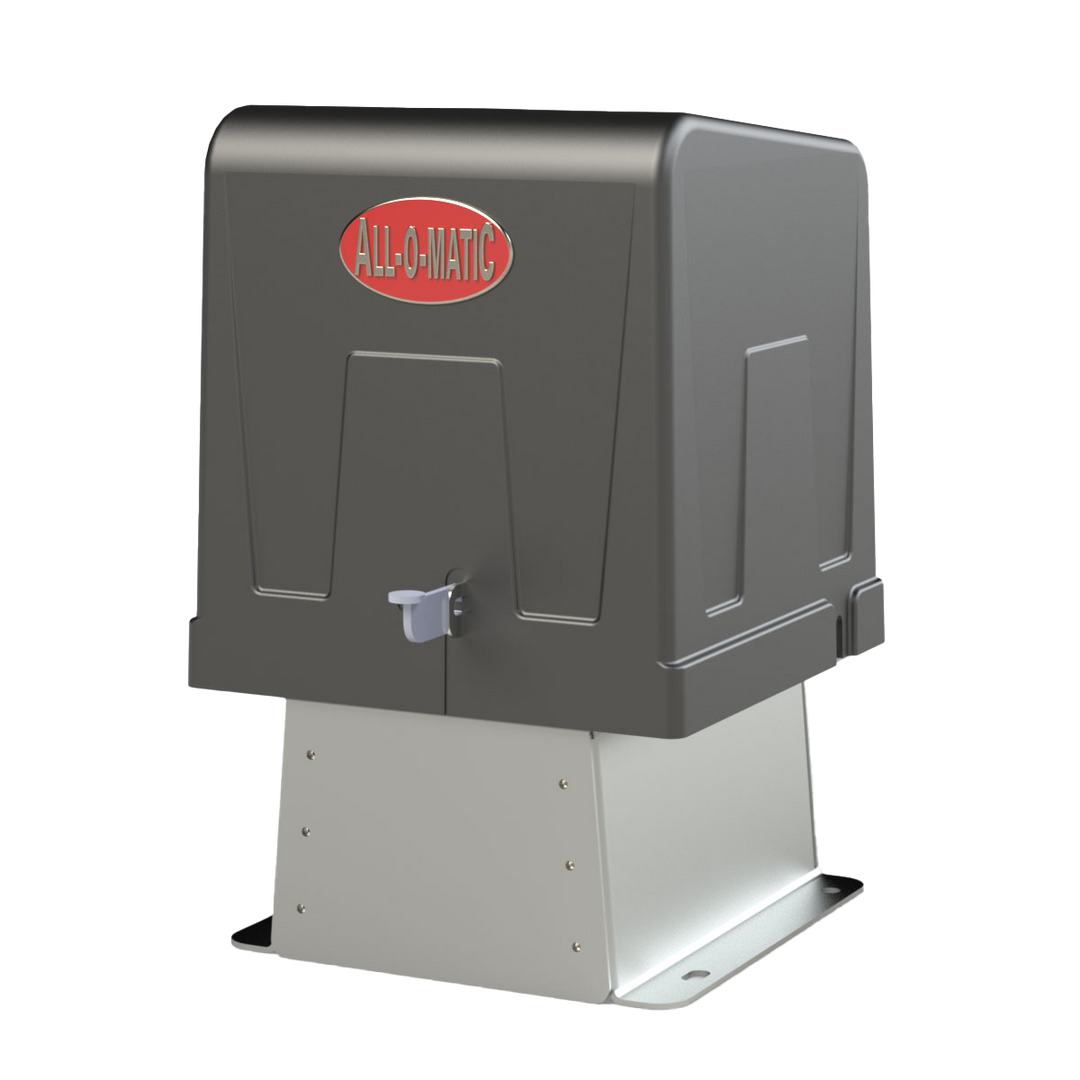

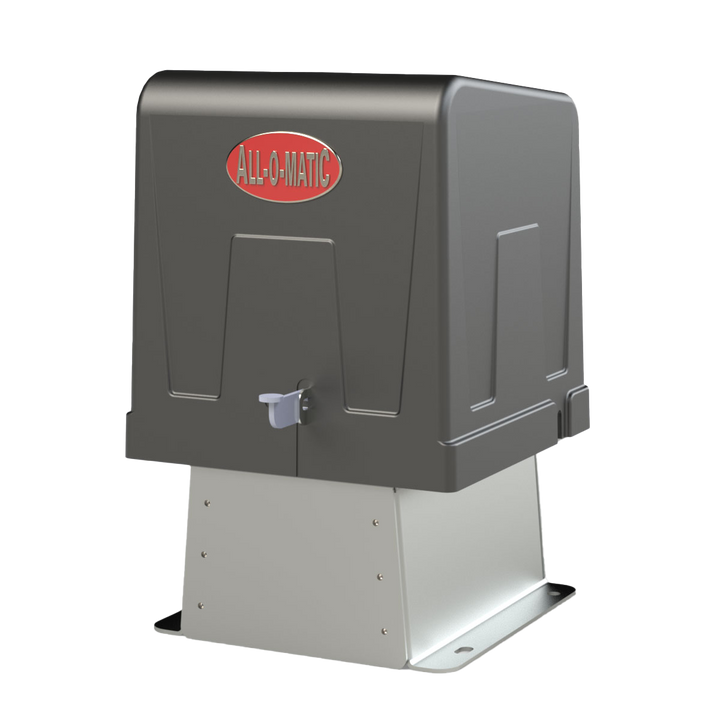

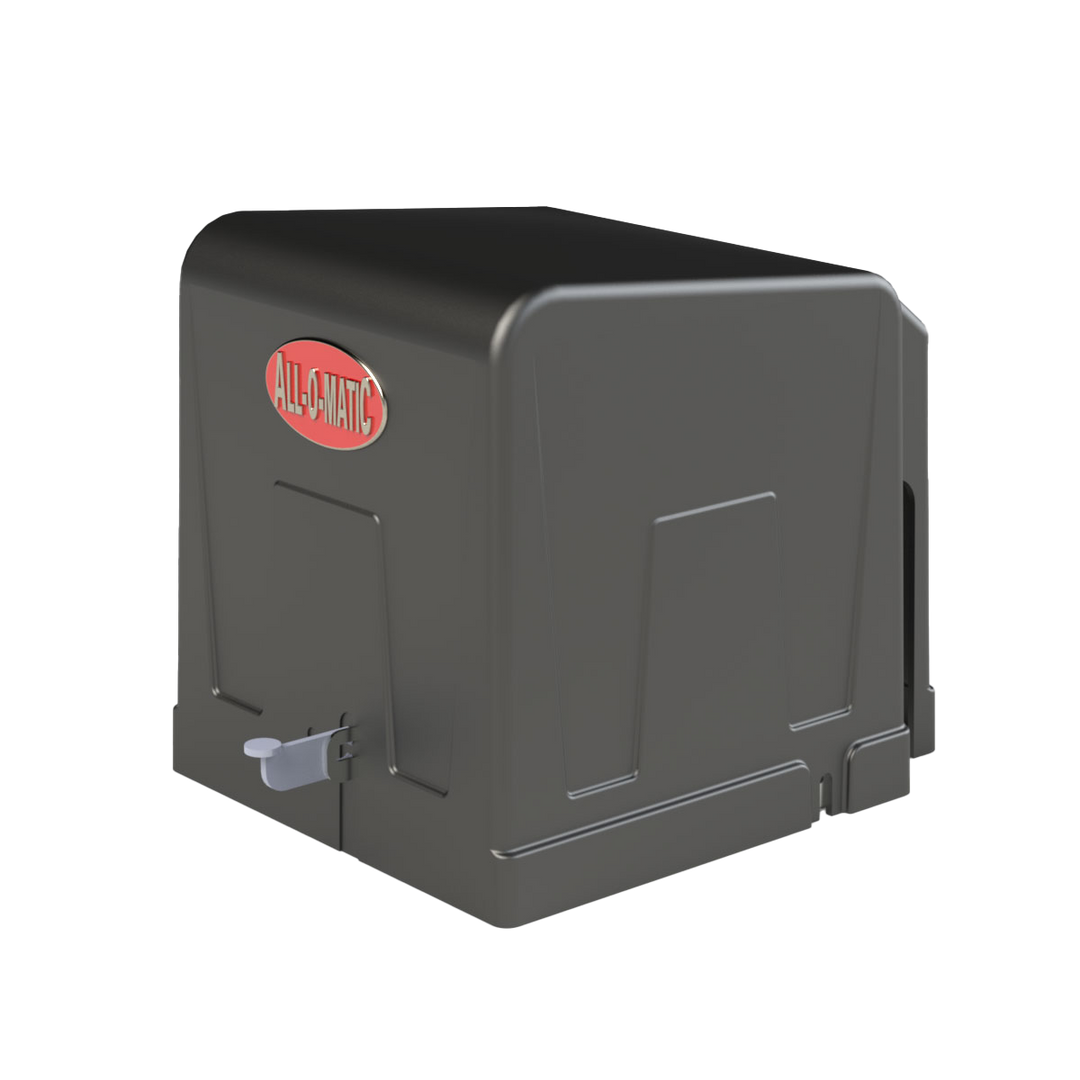

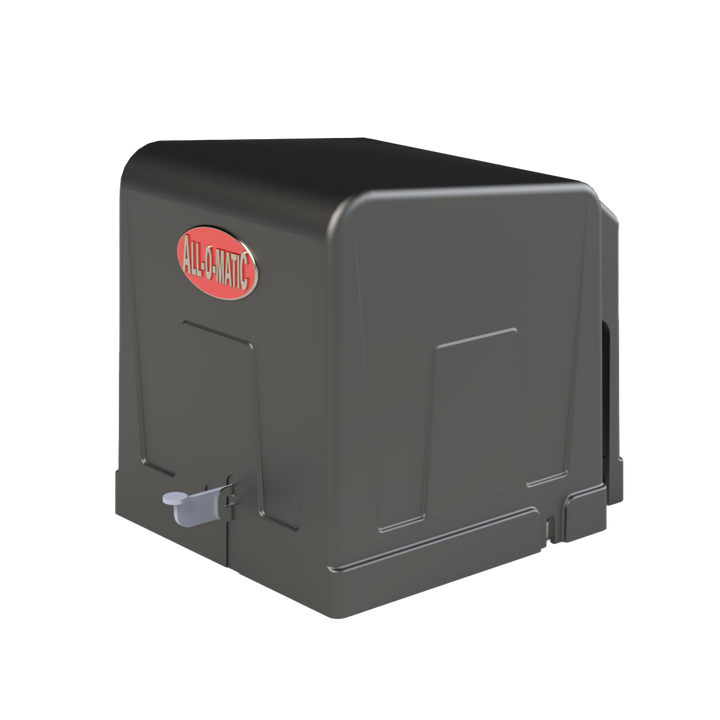

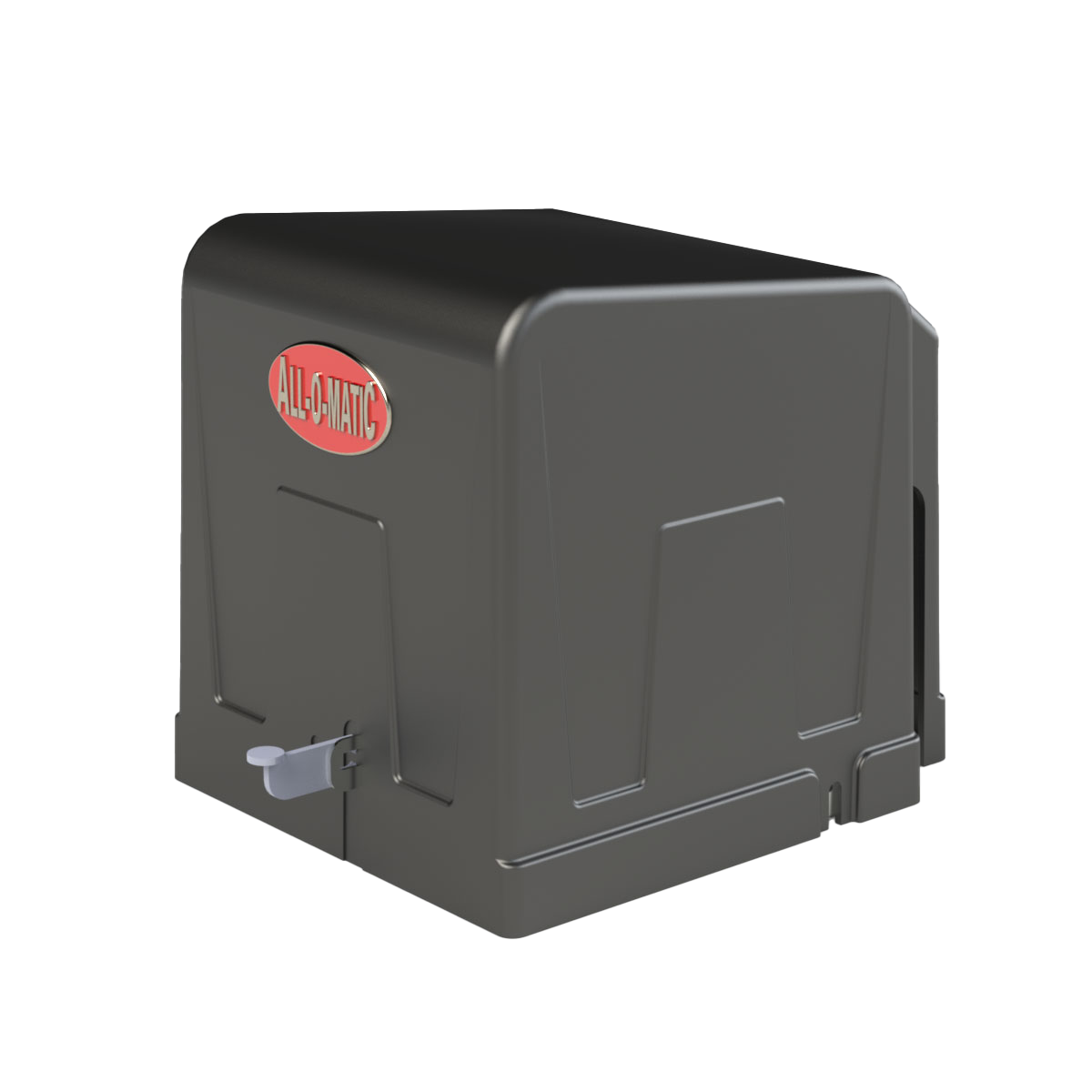

ALL-O-MATIC SL-90 DC PRO 24VDC Heavy-Duty Slide Gate Operator
The ALL-O-MATIC SL- 90 DC PRO is a newly redesigned heavy-duty slide gate operator that combines compact dimensions with exceptional power. Equipped with a standard mechanical foot pedal release and enhanced internal gearbox with disconnect feature, this operator easily handles gates up to 1,600 pounds and 50 feet long. The industry-leading brushless DC motor technology ensures smooth, quiet operation with zero maintenance requirements.
Powerful Performance
- Handles gates up to 1,600 lbs. and 50 feet in length
- 24VDC brushless motor delivers superior torque and reliability
- Adjustable gate speed from 6-12 inches per second
- Continuous duty cycle for high-traffic applications
- Mechanical foot pedal release for easy manual operation
Advanced Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- Integrated wireless primary/secondary capability
- Built-in voltmeter through LCD display for system monitoring
Reliable Backup & Power Options
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 150 cycles of operation during power outages
- Solar power compatibility for remote installations
- Dual voltage input capability (115/230 VAC)
- Extreme temperature operation range (-40°F to 160°F)
Specifications
Gate Capacity
- Maximum Gate Weight: 1,600 lbs.
- Maximum Gate Length: 50 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 24 VDC brushless – ½ HP motor
- Gate Speed: Adjustable 6-12 inches per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: 150 cycles on a 1,000 lb. gate
Construction & Dimensions
- Gearbox Ratio: 20:1 with internal disconnect
- Dimensions (W×L×H): 15.5" × 18.5" × 16"
- Shipping Weight: 95 lbs.
- Operating Temperature Range: -40°F to 160°F

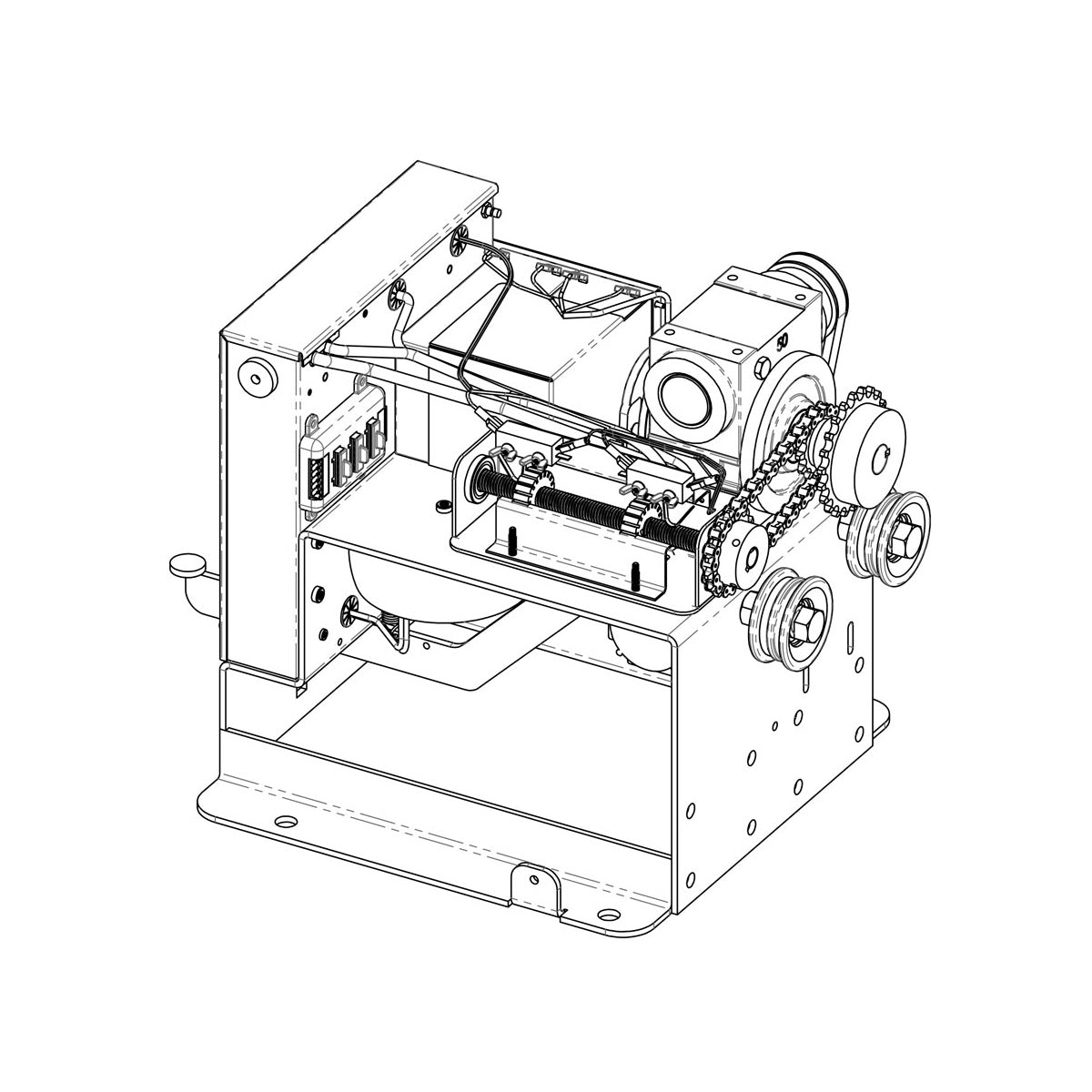

Drive Components
- Belt Size: 4L-230 (AX21)
- Main Sprocket Size: 41B22×7/8
- Chain Size: 41NP (20' included)
- Limit Shaft Sprocket: 41B15×5/8
- Gearbox Pulley: 2 ½" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- Breaker Requirement: 20 amp dedicated
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately.
