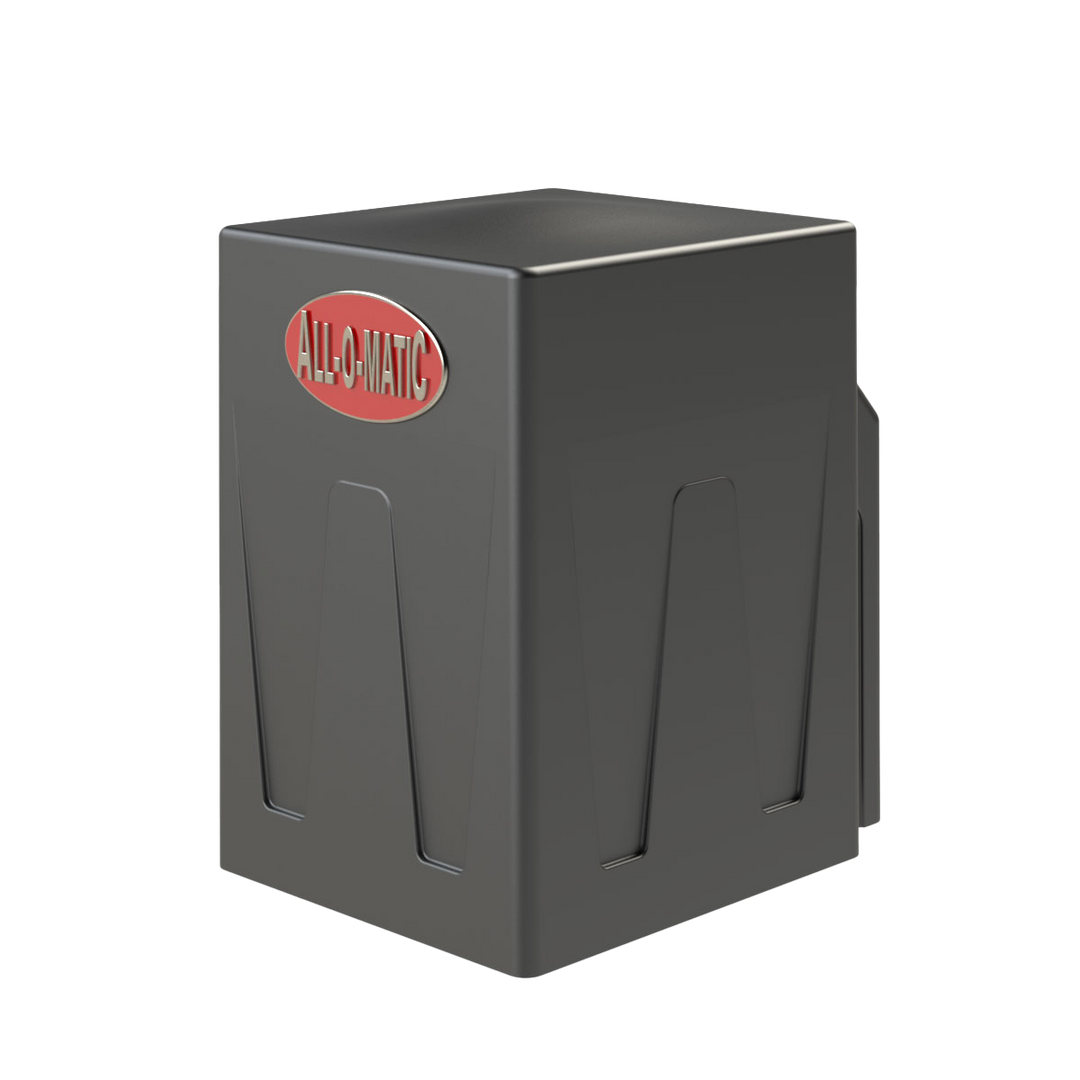

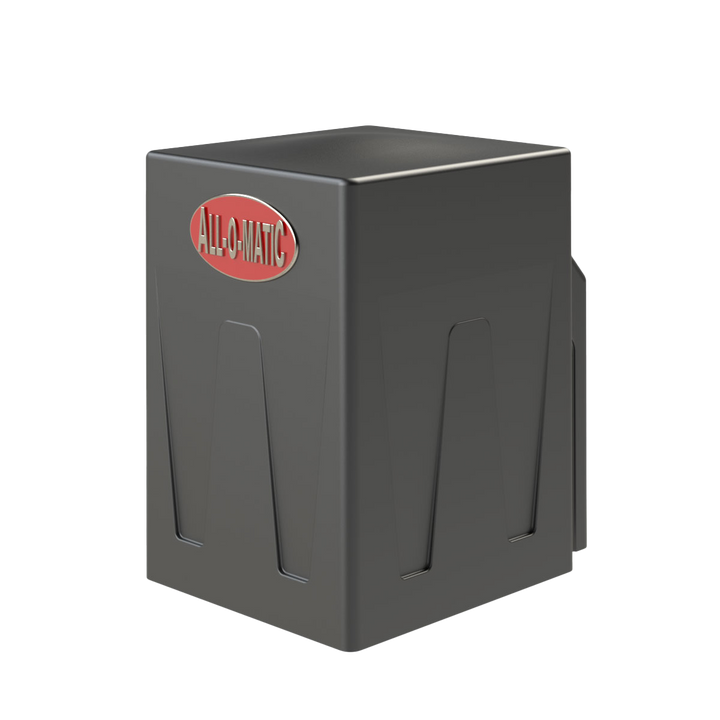

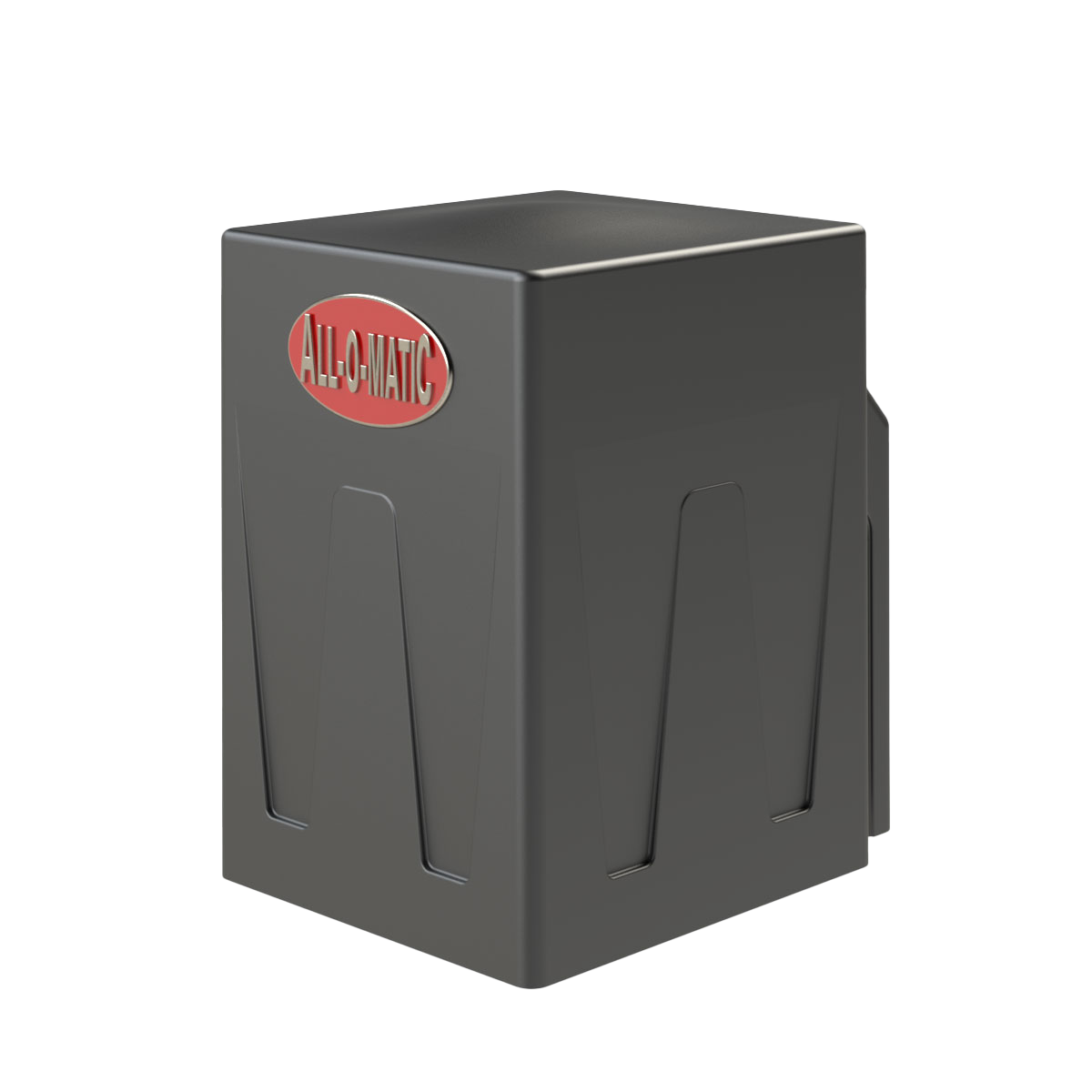

ALL-O-MATIC SL-45 DC PRO 24VDC Residential Slide Gate Operator
The SL-45DC PRO is the most compact, efficient, and reliable residential DC gate operator in the industry. Despite its small footprint, this powerhouse delivers exceptional performance through its premium planetary gearbox and maintenance-free brushless DC motor technology. Designed for residential gates up to 30 feet in length and 800 pounds in weight, this operator combines convenience with uninterrupted security – even during power outages.
Advanced DC Technology
- 24VDC brushless motor with planetary gearbox for superior efficiency and torque
- Integrated battery backup with up to 250 cycles during power outages
- Adjustable gate speed from 6-12 inches per second
- Zero maintenance motor design eliminates routine service requirements
- UL 325 2018 compliant for maximum safety and code compliance
Intelligent Control Features
- LCD display with on-board diagnostics for easy troubleshooting
- Digital adjustments for precision performance tuning
- Programmable auto-close timer and obstruction sensing
- Wireless primary/secondary capability for dual gate setups
- 7-day timer functionality for scheduled operations
Convenience and Reliability
- Back-drivable gearbox allows manual operation during emergencies
- Solar power compatible for off-grid installations
- USB port for diagnostic data extraction and firmware updates
- Built-in volt meter through LCD display for system monitoring
- Cycle counter for maintenance tracking
Specifications
Gate Capacity
- Maximum Gate Weight: 800 lbs.
- Maximum Gate Length: 30 feet
- Duty Cycle: Intermittent
Power & Performance
- Motor: 24VDC brushless with planetary gearbox
- Gate Speed: Adjustable 6-12 inches per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated with (2) 7Ah 12VDC batteries
- Battery Capacity: 250 cycles on a 600 lb. gate
Construction & Dimensions
- Gearbox Ratio: Approximately 24:1
- Dimensions (W×L×H): 11" × 14.5" × 15.5"
- Shipping Weight: 60 lbs.
- Operating Temperature Range: -40°F to 160°F
Chain & Hardware
- Chain Size: 41NP (20' included)
- Main Sprocket Size: 41B15×5/8
- Limit Shaft Sprocket: 41B10×5/8
- Breaker Requirement: 20 amp dedicated
Safety & Compliance
- Emergency Release: Push open in the event of a power failure
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced safety
Warranty: 5-year residential warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately.
