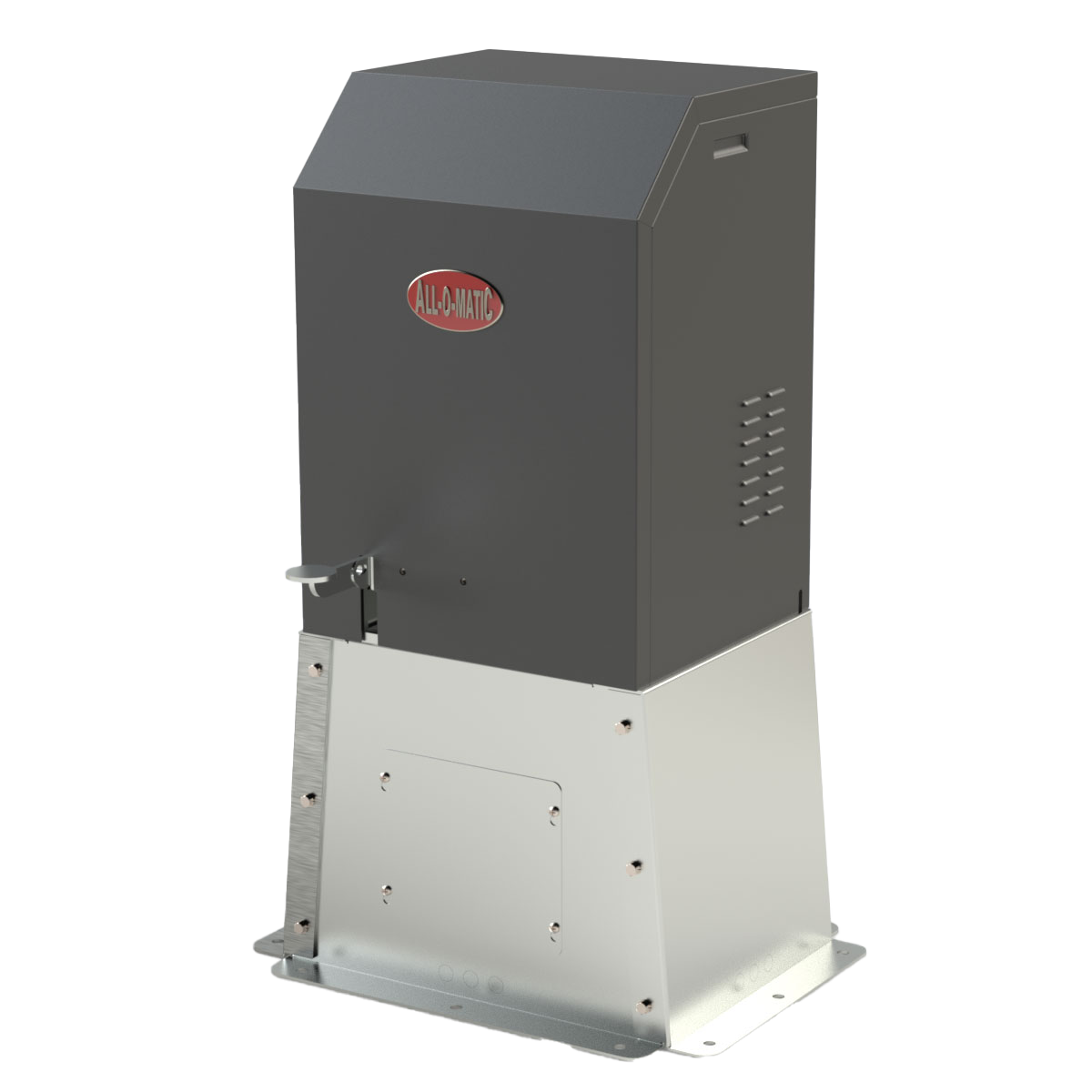

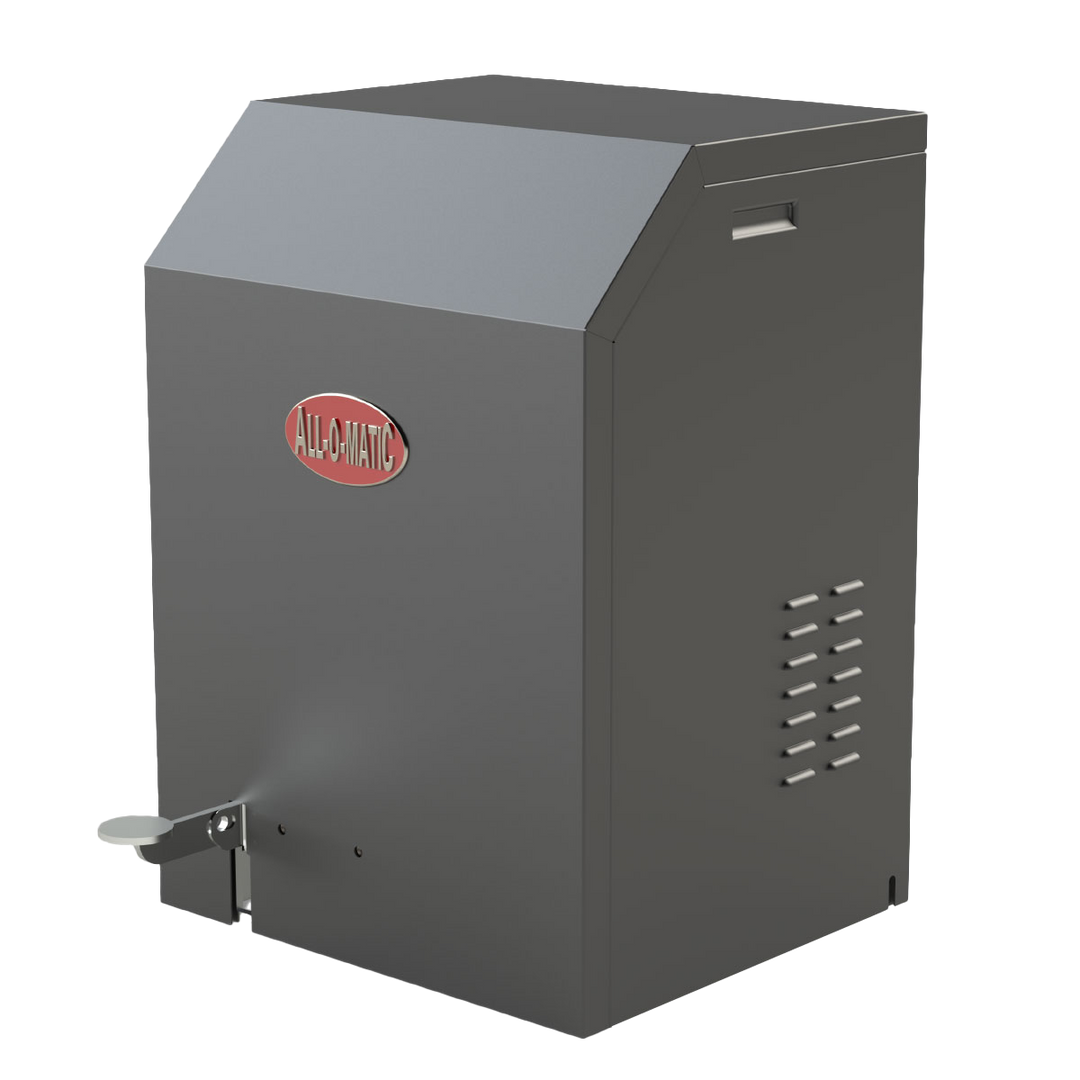

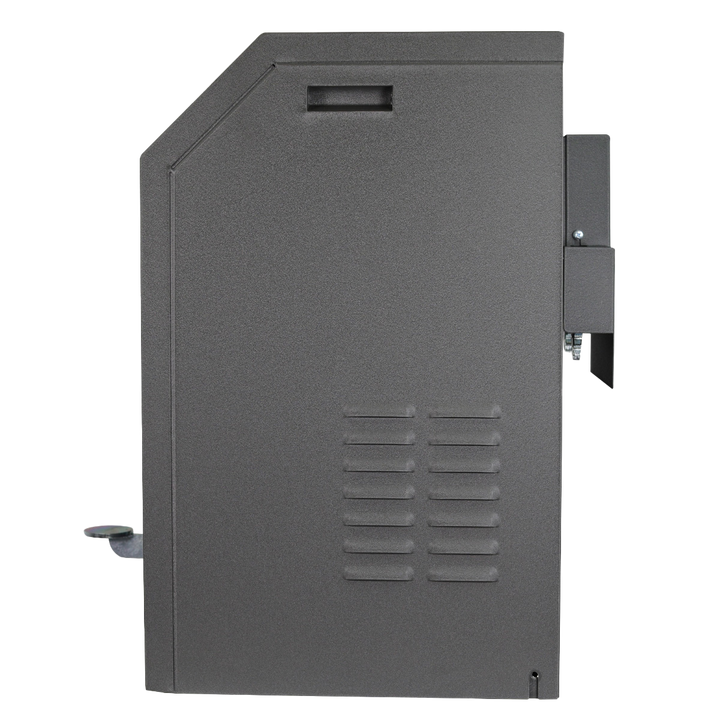

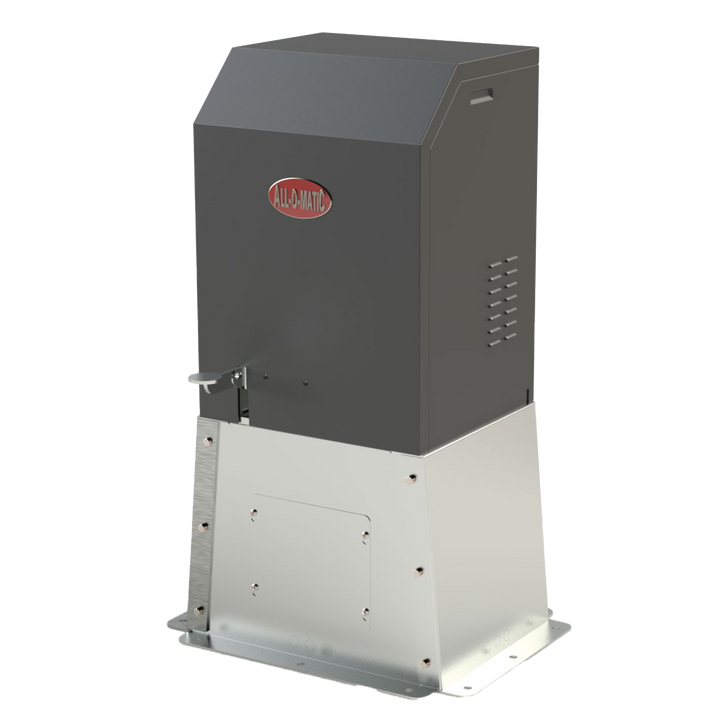

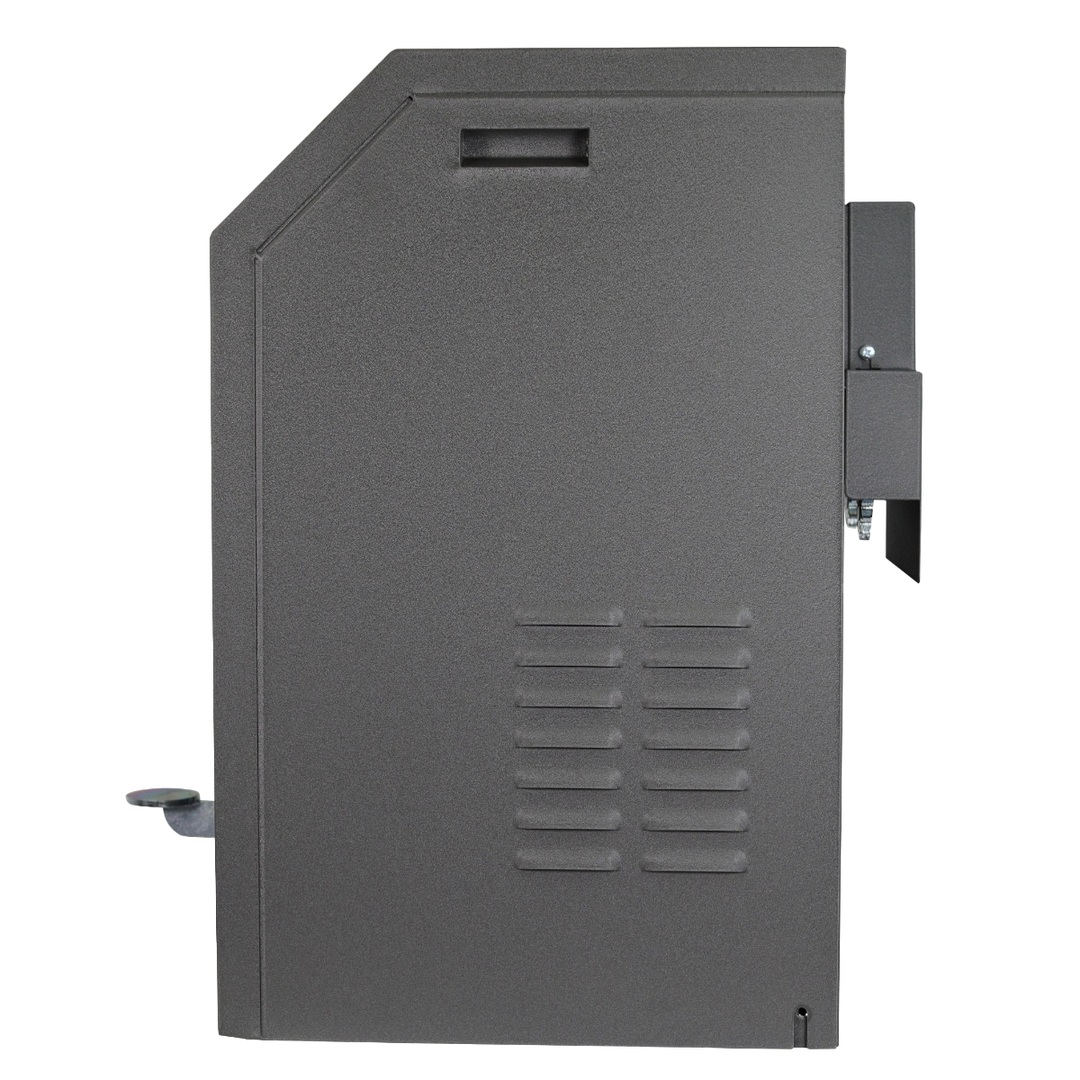

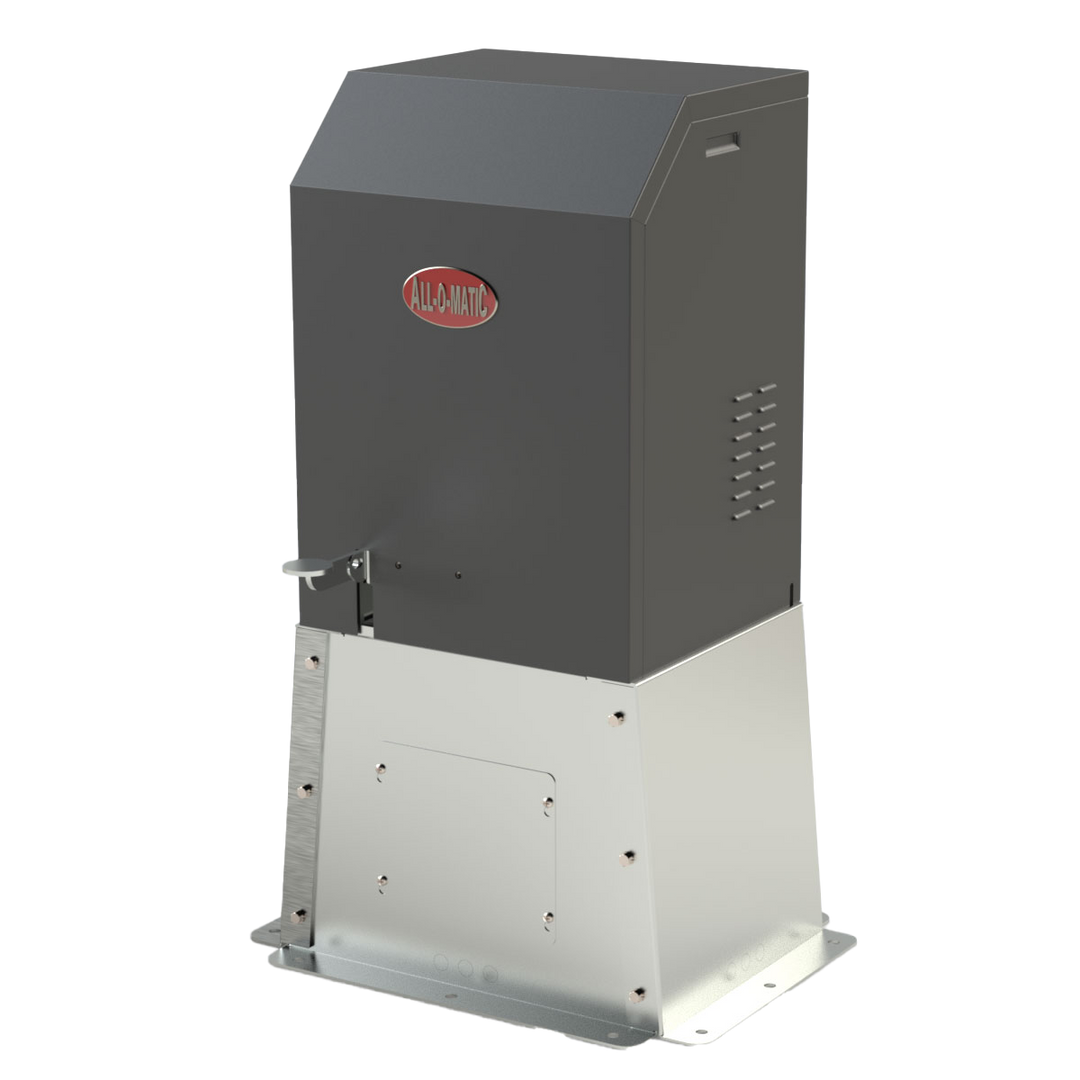

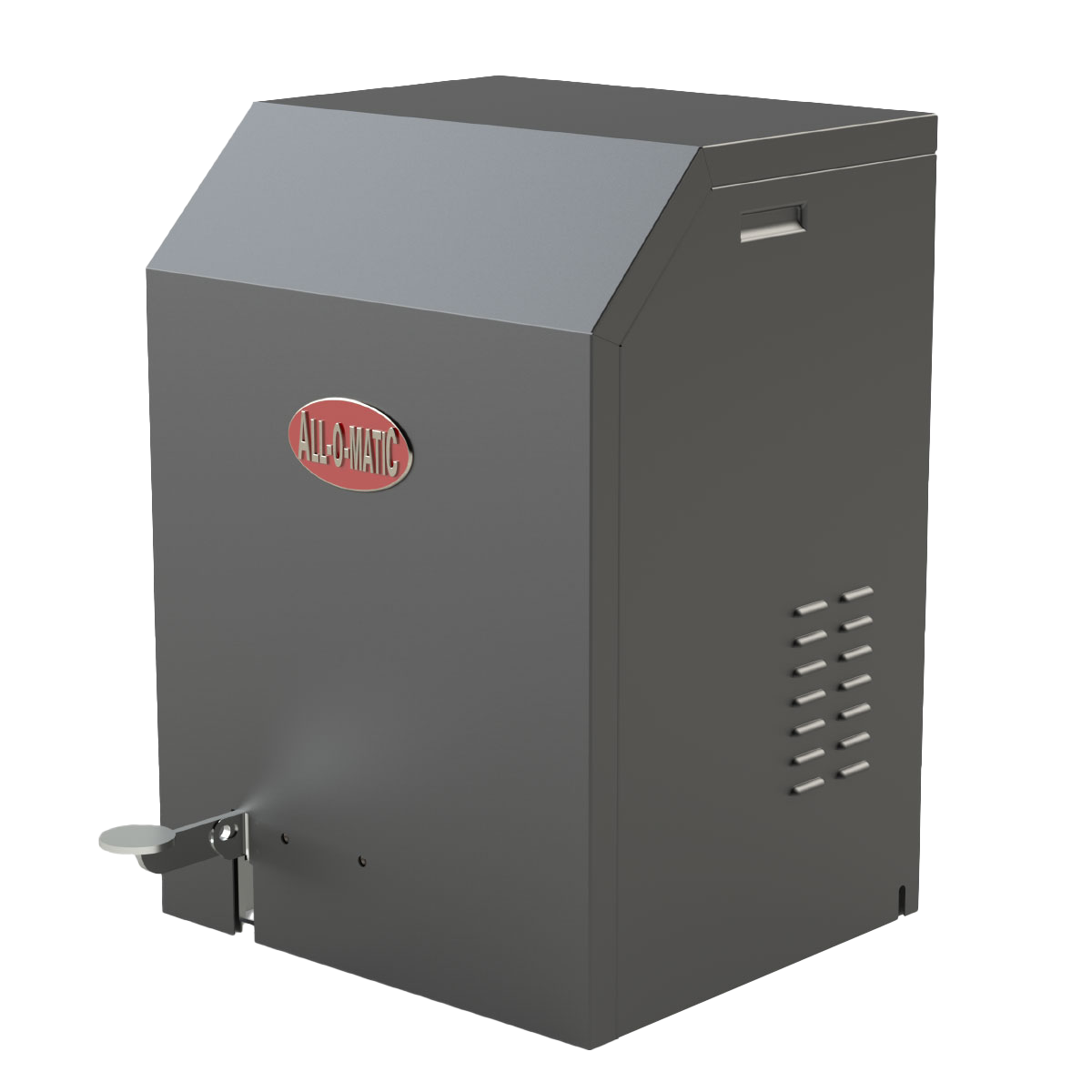

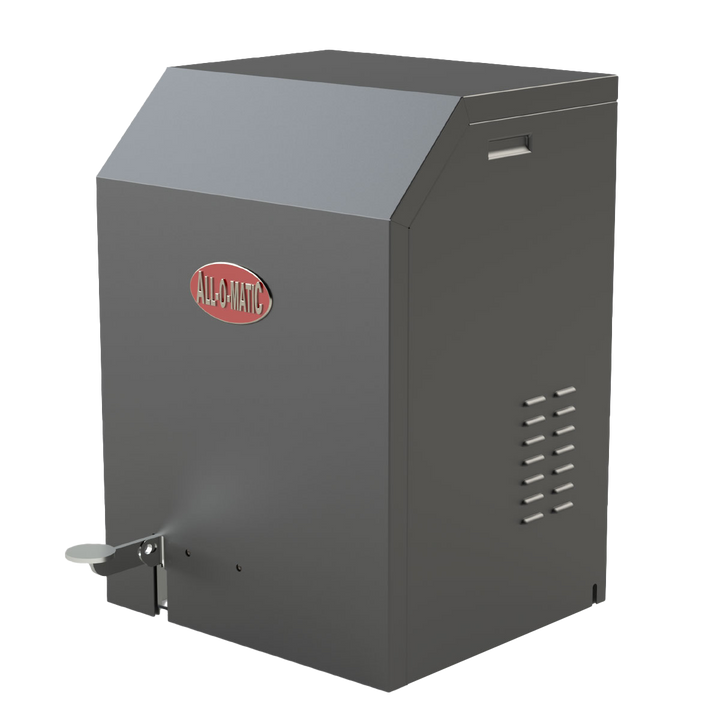

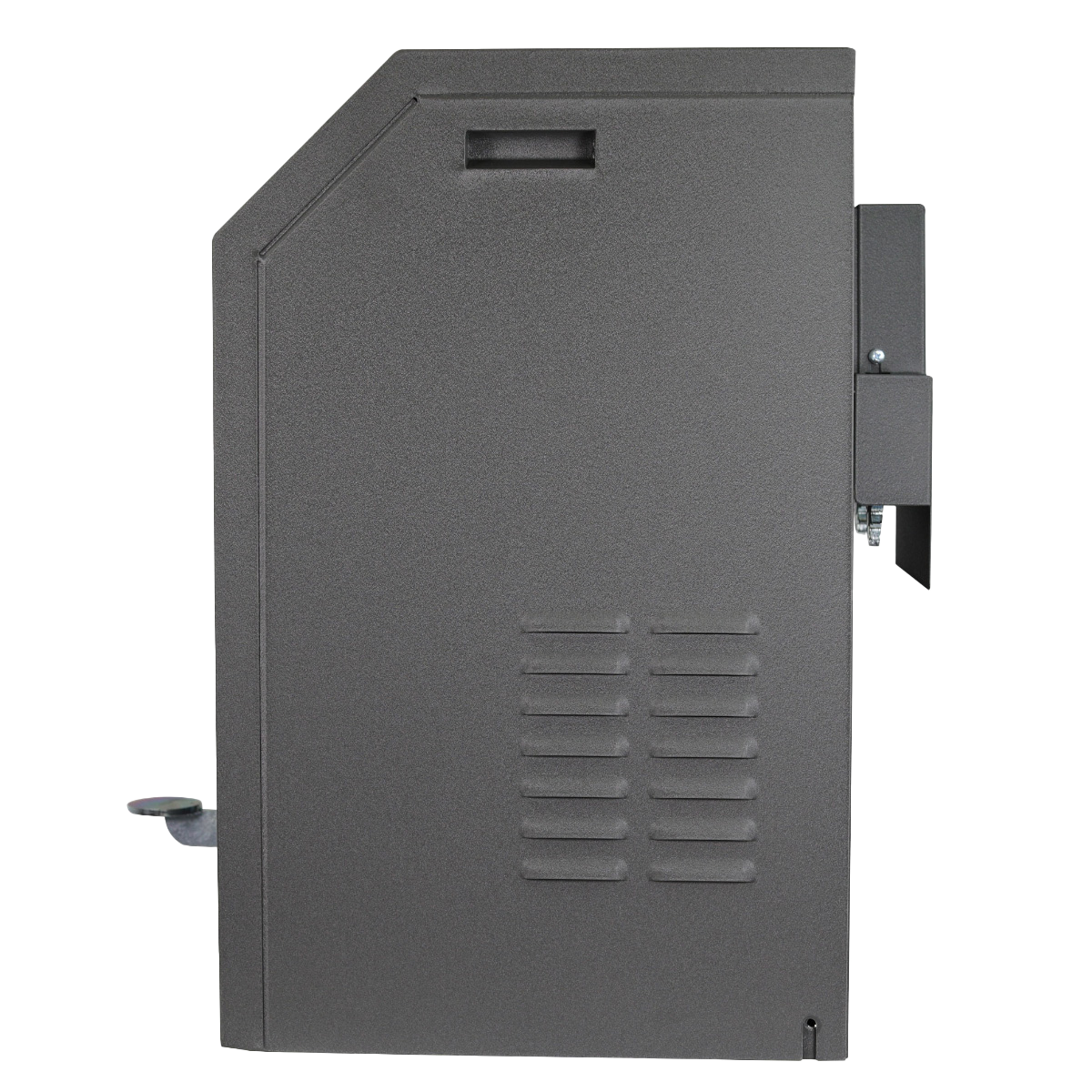

ALL-O-MATIC SL-175 DC Ultra-Heavy-Duty Industrial Slide Gate Operator
The ALL-O-MATIC SL-175 DC slide gate operator represents the pinnacle of gate automation technology, designed specifically for extreme-duty commercial and industrial applications. Equipped with an all-new super duty high-strength frame, heavy-duty gearbox, and powerful 36VDC brushless DC motor, this exceptional operator can handle massive gates weighing up to 8,000 lbs. and measuring up to 100 feet in length. Available with optional speed configurations, the SL-175 DC delivers unmatched performance for the most demanding gate automation projects.
Extreme Capacity Performance
- Handles gates up to 8,000 lbs. at standard speed (12" per second)
- Handles gates up to 3,000 lbs. at high speed (24" per second)
- Maximum gate length of 100 feet for extensive perimeter security
- Super duty gearbox with 30:1 ratio and internal clutch for maximum torque
- Continuous duty cycle for high-traffic commercial/industrial applications
Advanced 36V Brushless Technology
- Powerful 36VDC brushless motor for superior performance and reliability
- Newly designed in-house BLDC control board for precise operation
- Adjustable dual-speed configuration options (12" or 24" per second)
- Zero maintenance motor design eliminates routine service requirements
- Industry-leading soft start/stop functionality for smooth gate movement
Commercial-Grade Features
- Integrated battery backup with (3) 14Ah 12VDC batteries
- Up to 100 cycles of operation during power outages
- Multiple input power options (115/230/480 VAC)
- Solar power compatibility (36VDC) for remote installations
- Mechanical foot pedal release for manual operation
- Built-in loop rack for simplified safety device integration
Specifications
Gate Capacity
- Maximum Gate Weight:
- 8,000 lbs. (12" per second)
- 3,000 lbs. (24" per second)
- Maximum Gate Length: 100 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 36 VDC brushless motor
- Gate Speed: 12" or 24" per second (specify when ordering)
- Power Options: 115/230/480 VAC single phase and 36VDC solar panel
- Battery Backup: Integrated, with (3) 14Ah 12VDC batteries
- Battery Backup Capacity: 100 cycles on a 3,000 lb. gate
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 30:1 with internal clutch
- Dimensions (W×L×H): 19.5" × 20" × 27.5"
- Shipping Weight: 320 lbs.

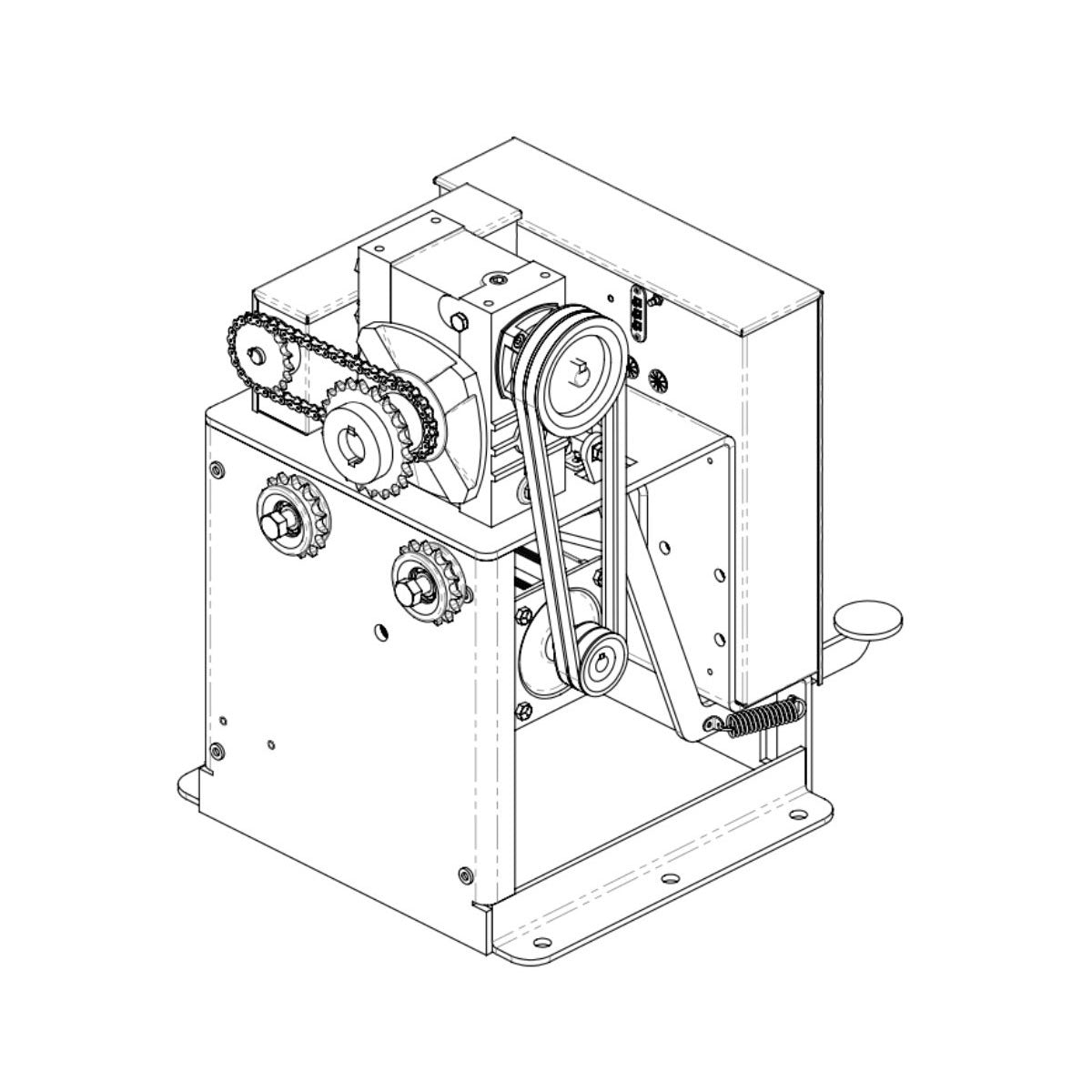

Drive Components
- Belt Size: 4L-370 (AX35)
- Main Sprocket Size: 40B18×1-3/8
- Chain Size: 50NP (30' included)
- Limit Shaft Sprocket: 40B18×5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2AK49×3/4
- Motor Pulley: 2AK30×5/8
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
Warranty: 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. When ordering, please specify desired speed configuration (12" or 24" per second).
