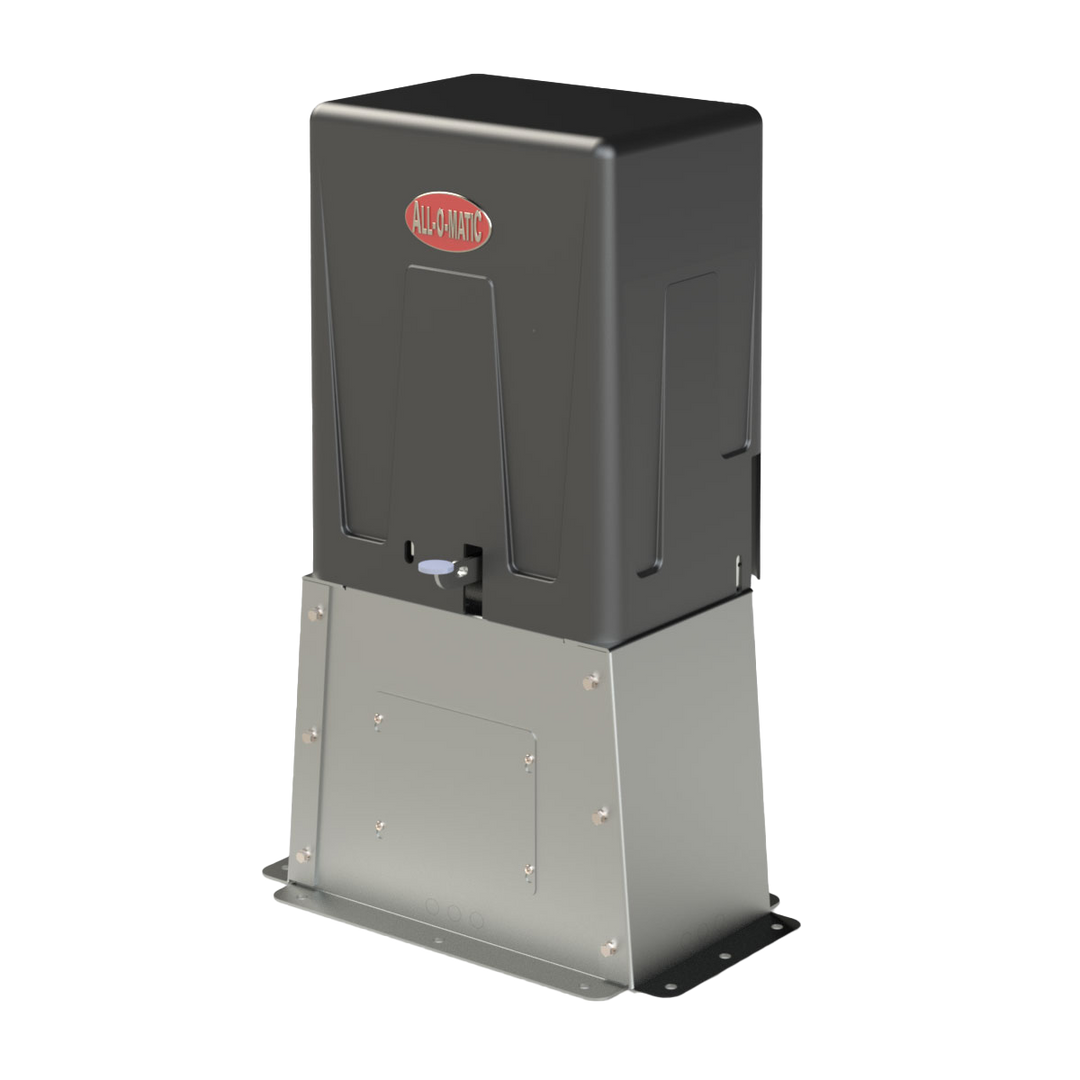

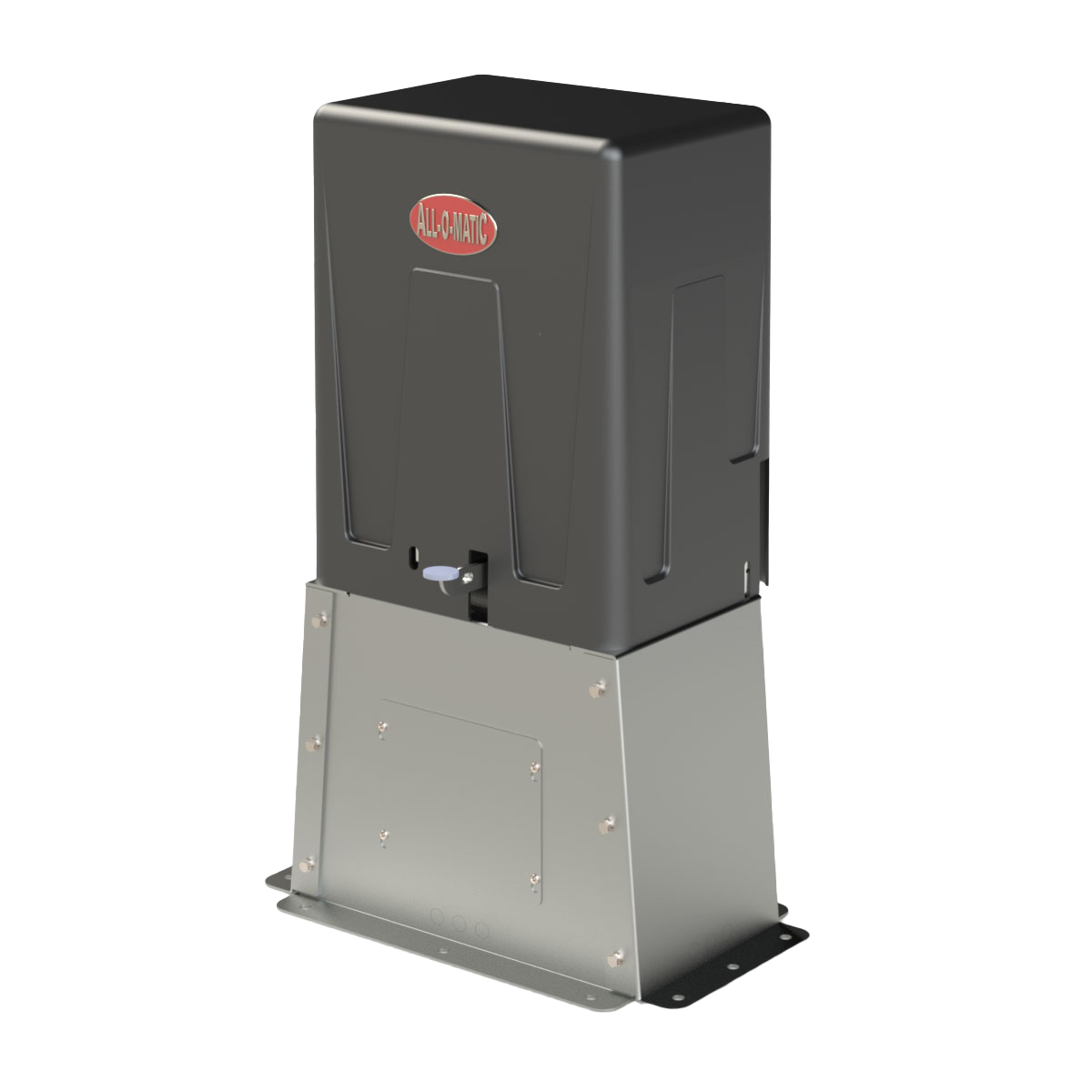

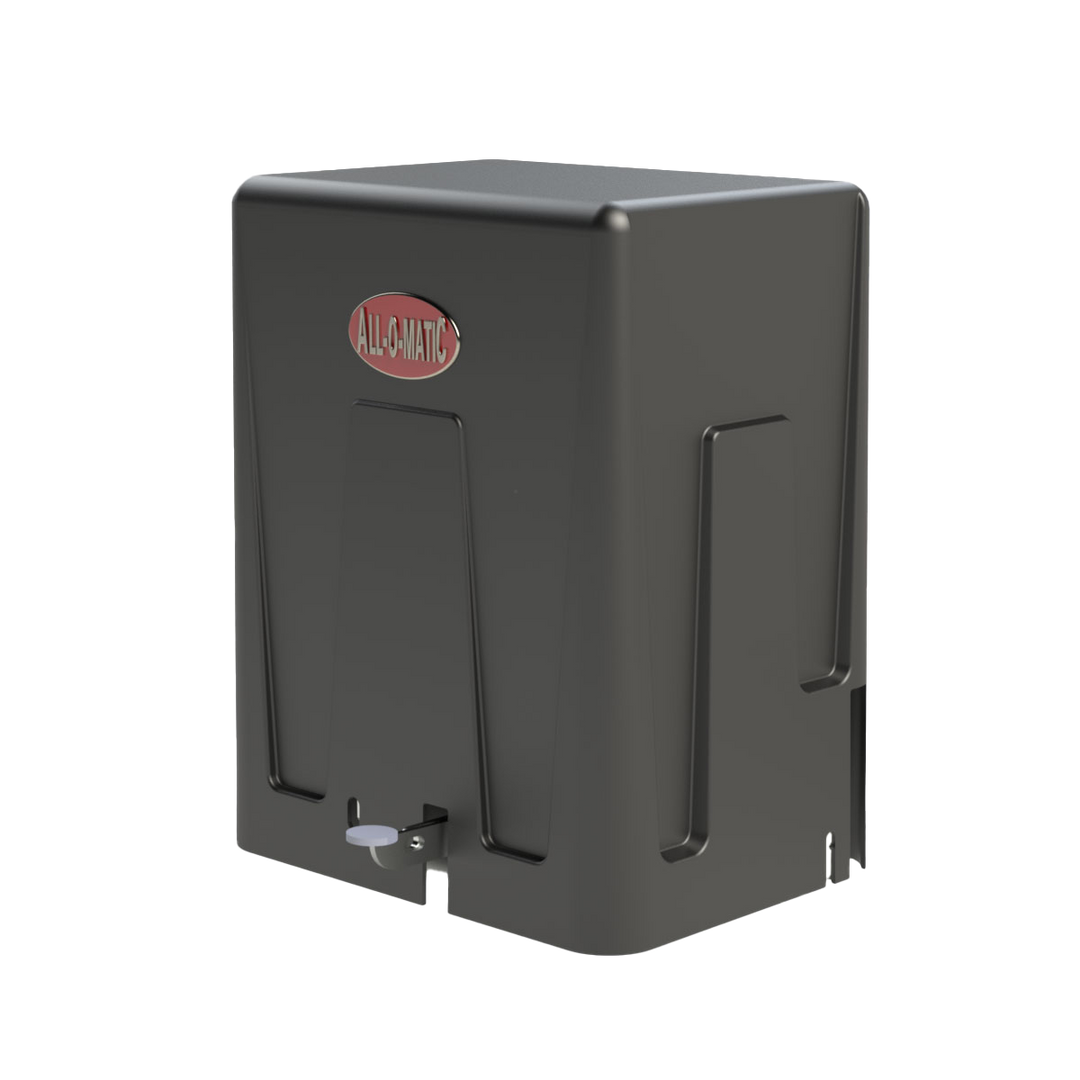

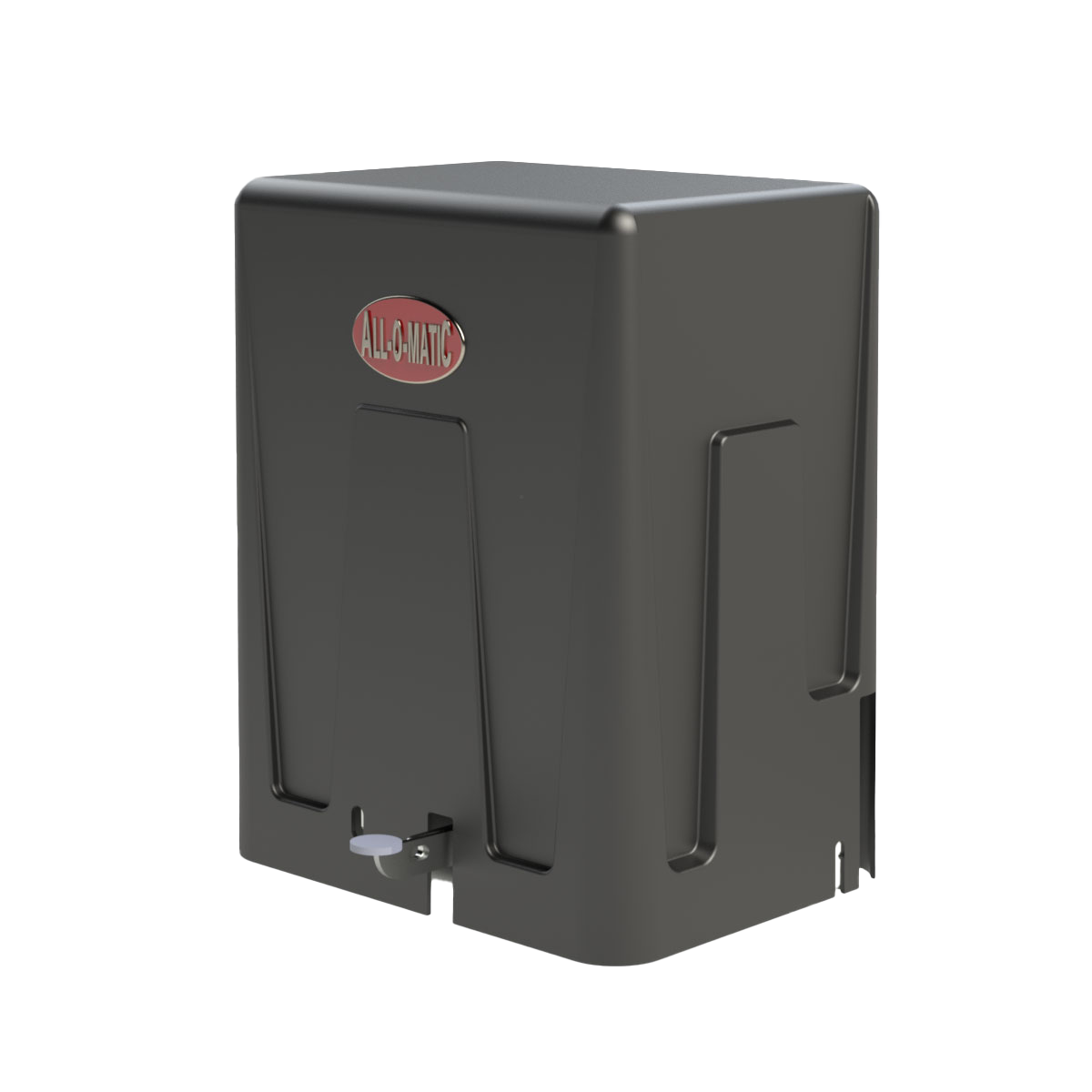

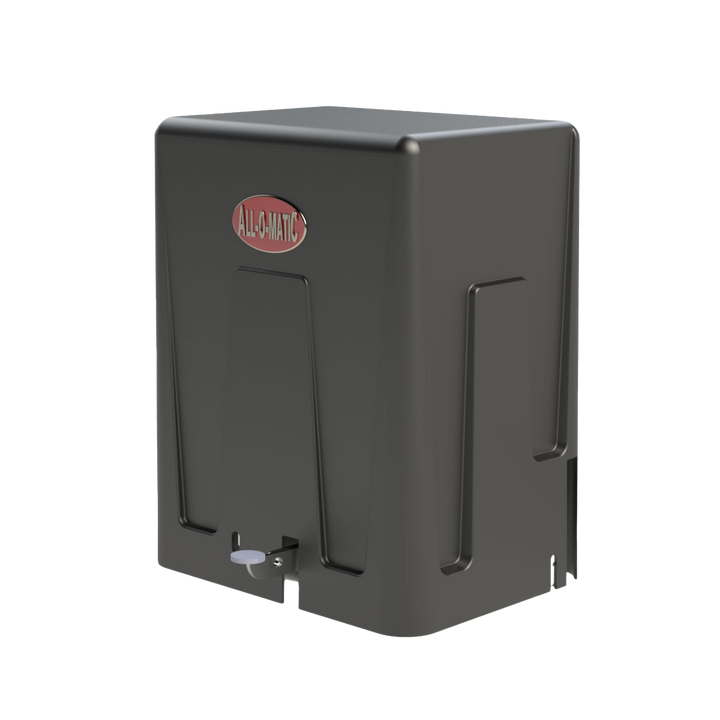

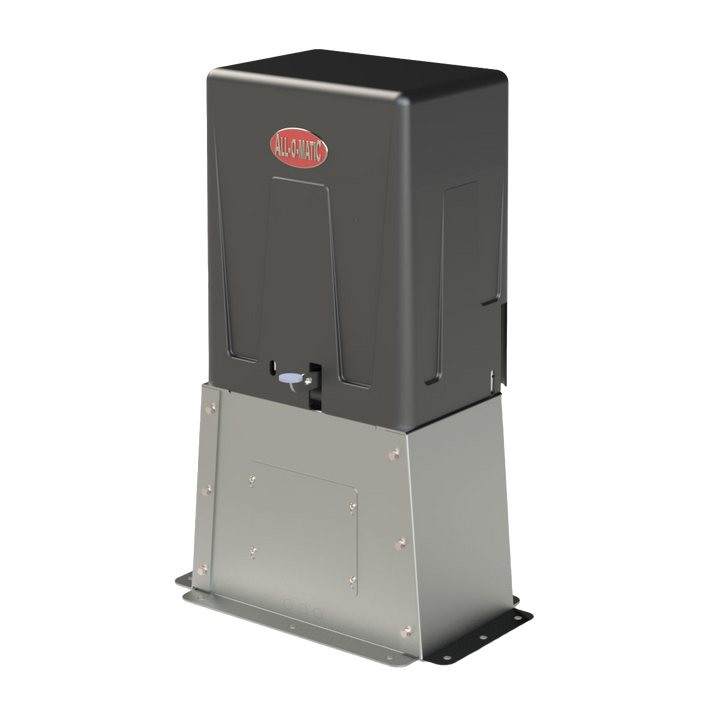

ALL-O-MATIC SL-150 DC PRO Premium Industrial Slide Gate Operator with Battery Backup
The ALL-O-MATIC SL-150 DC PRO was engineered to meet the most demanding gate automation requirements across heavy-traffic commercial and industrial applications. This advanced operator combines a robust frame, reliable gearbox, and powerful brushless DC motor technology to handle even the most challenging installations. Available in both ½ HP and 1 HP configurations, the SL-150 DC PRO offers unmatched performance, capable of moving gates up to 4,000 lbs. and 60 feet in length with continuous backup power protection.
Unrivaled Power and Capacity
- Available in two powerful brushless DC motor options:
- ½ HP model handles gates up to 3,000 lbs.
- 1 HP model handles gates up to 4,000 lbs.
- Maximum gate length of 60 feet for expansive entrances
- Adjustable gate speed from 6-12 inches per second
- Continuous duty cycle for high-traffic applications
- 30:1 gearbox with internal clutch for maximum torque and safety
Advanced Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- Integrated wireless primary/secondary capability
- USB port for diagnostic data extraction and firmware updates
Uninterrupted Operation
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 100 cycles of operation during power outages
- Solar power compatibility for remote installations
- Mechanical foot pedal release for manual operation
- Built-in loop rack for simplified safety device integration
Specifications
Gate Capacity
- Maximum Gate Weight:
- ½ HP: 3,000 lbs.
- 1 HP: 4,000 lbs.
- Maximum Gate Length: 60 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 24 VDC brushless – ½ HP and 1 HP options
- Gate Speed: Adjustable 6-12 inches per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: 100 cycles on a 1,000 lb. gate
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 30:1 with internal clutch
- Dimensions (W×L×H): 15" × 19.5" × 25"
- Shipping Weight: 150 lbs.

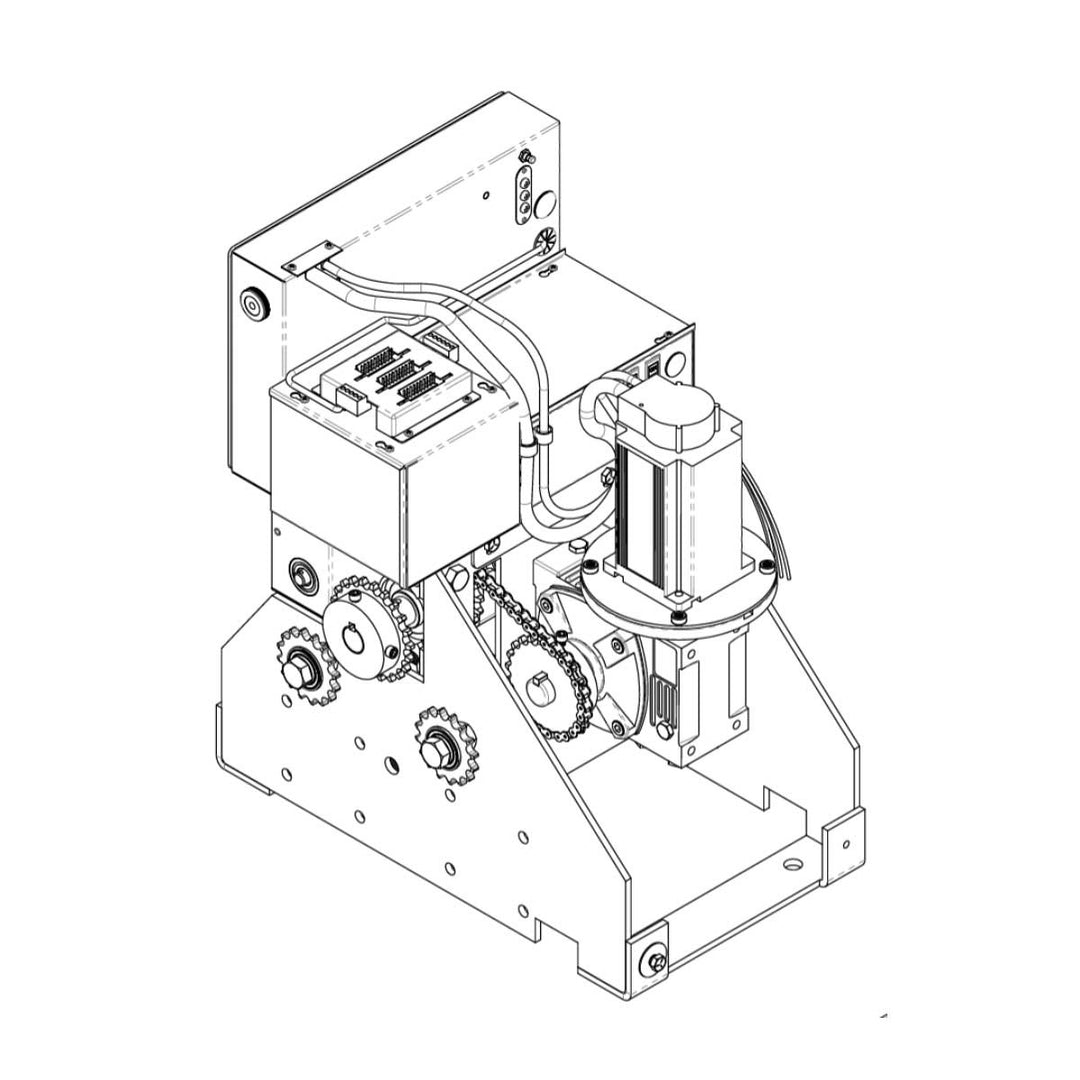

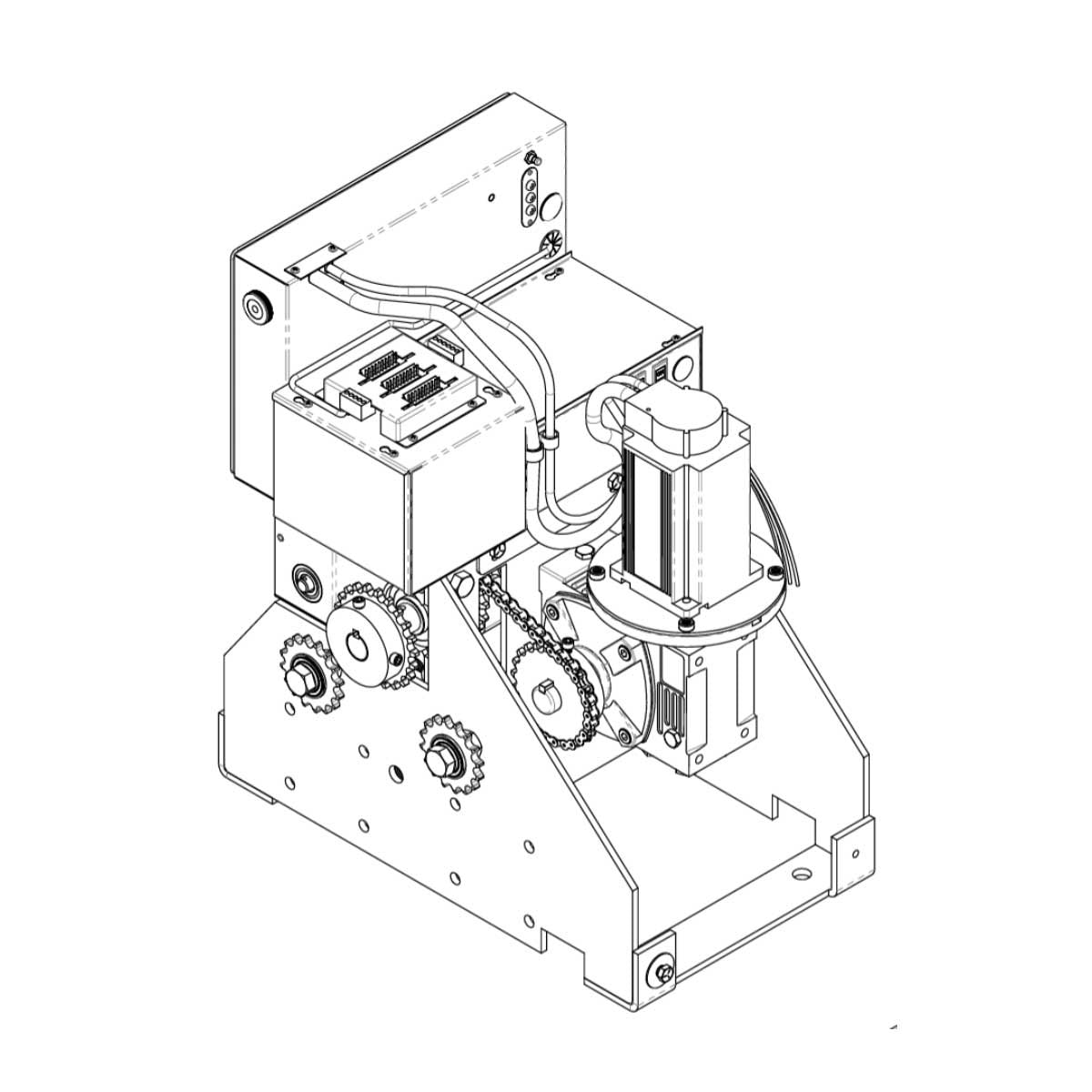

Drive Components
- Main Sprocket Size: 40B22×1
- Chain Size: 40NP (20' included)
- Gearbox Sprocket: 40B22×1
- Limit Shaft Sprocket: 41B10×5/8
- Breaker Requirement: 20 amp dedicated
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- 7-day timer functionality for scheduled operations
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, 24V solar panels, V-groove wheels, and guide rollers.
