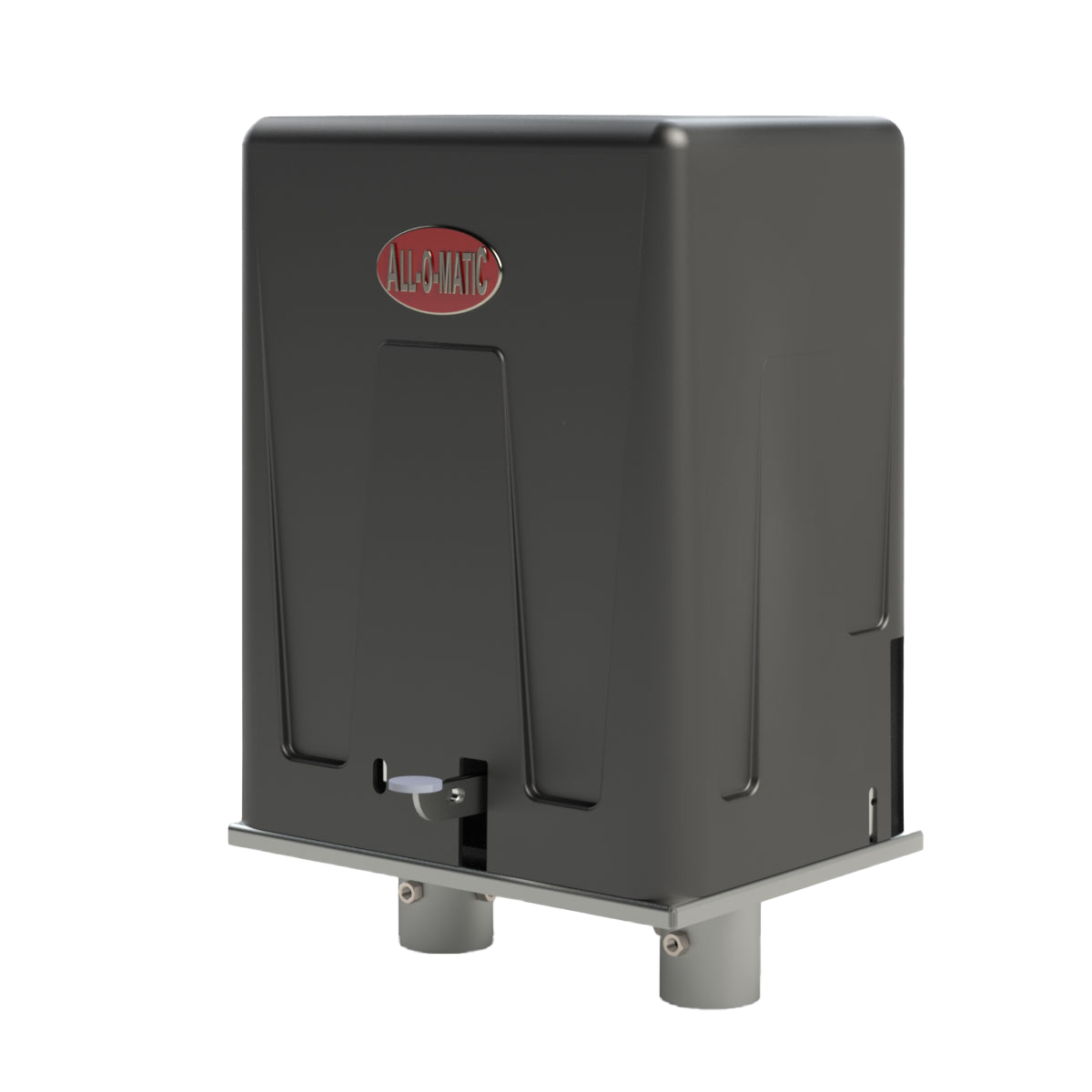

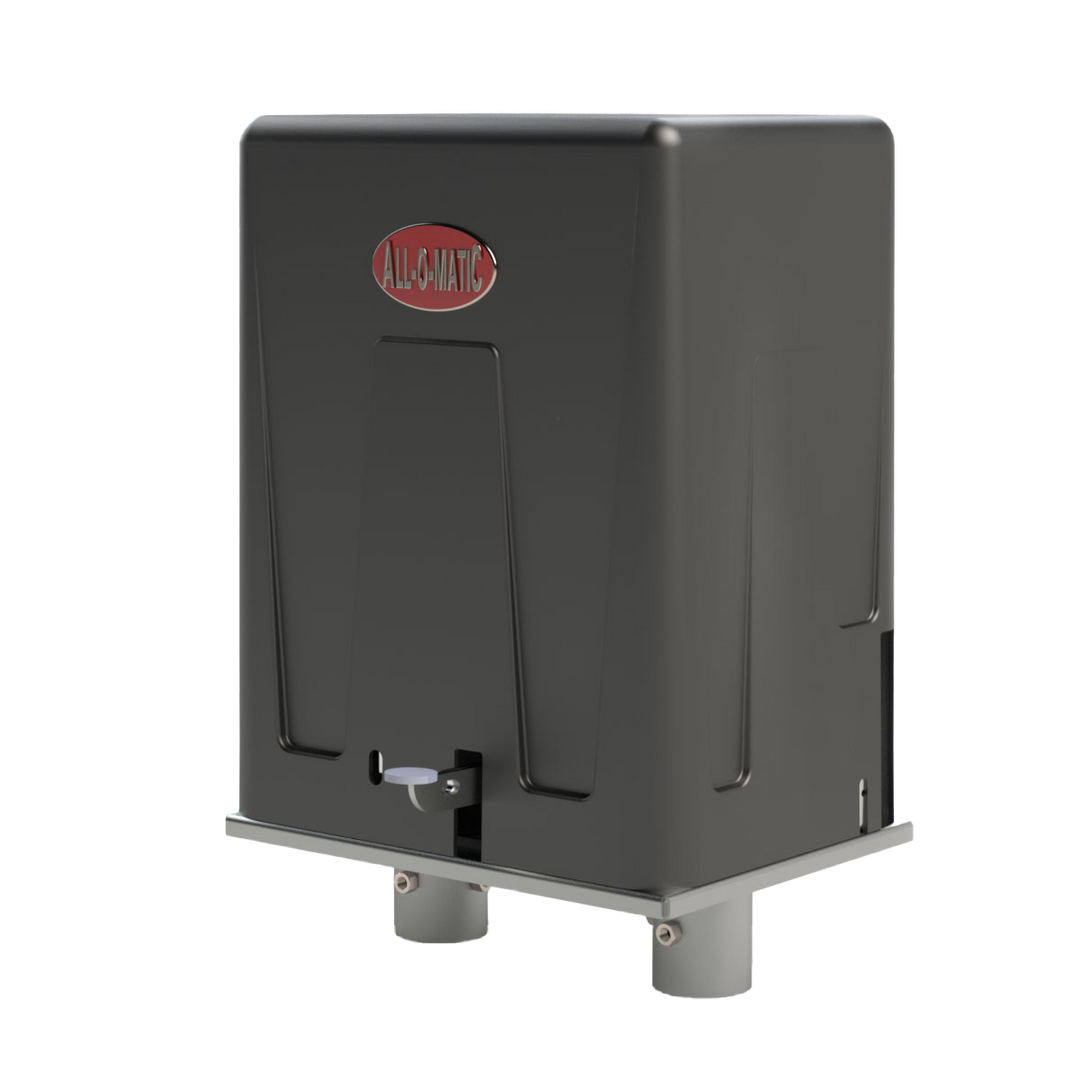

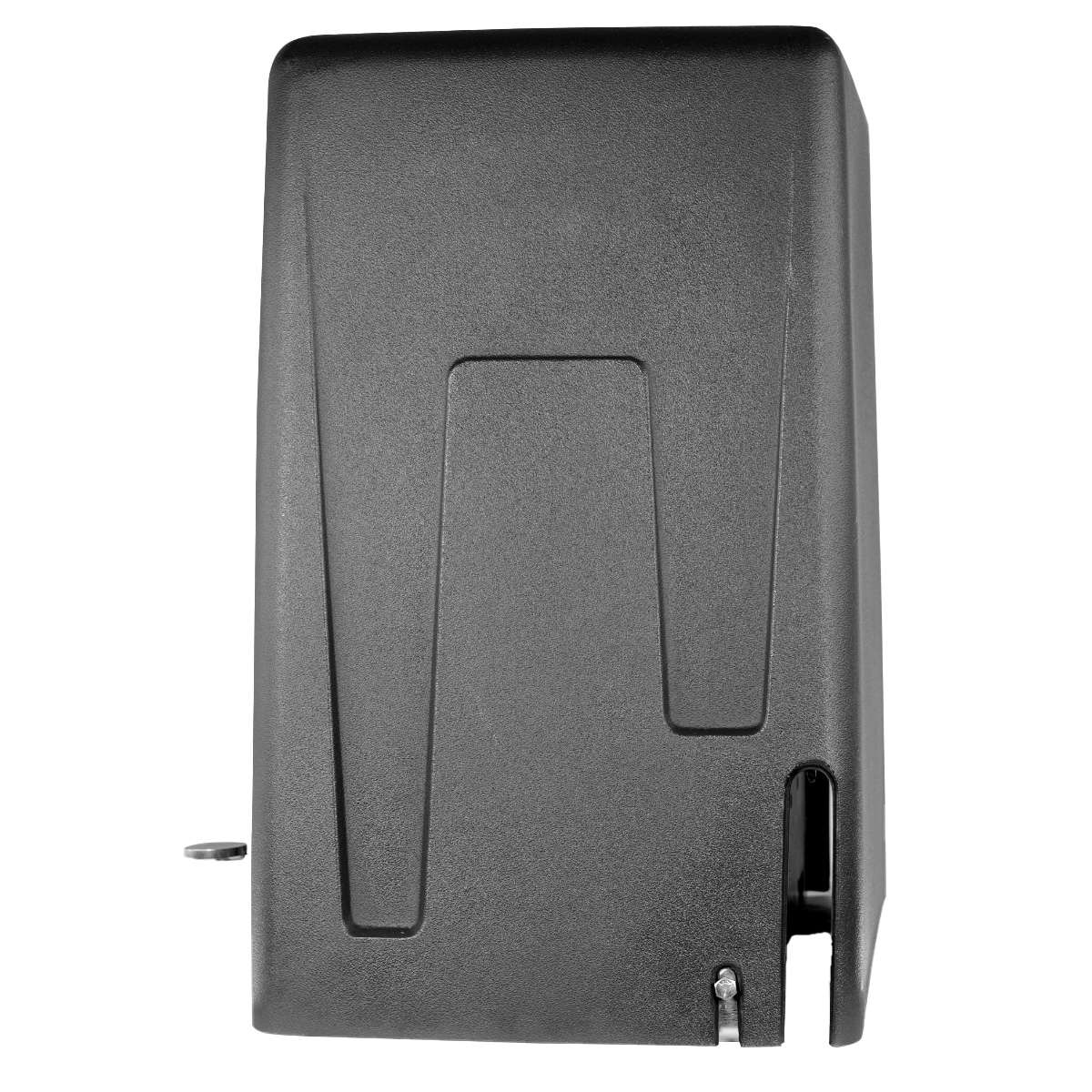

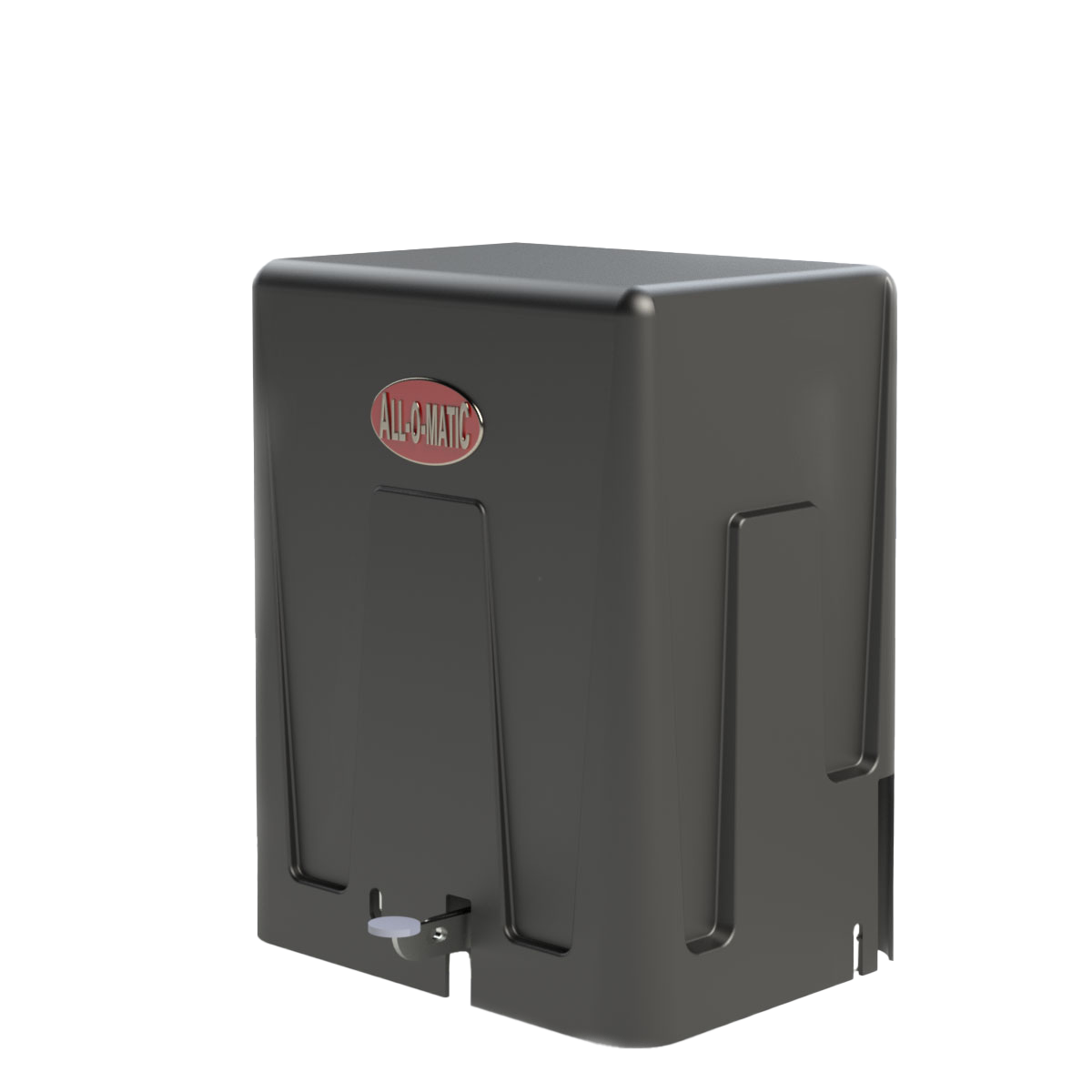

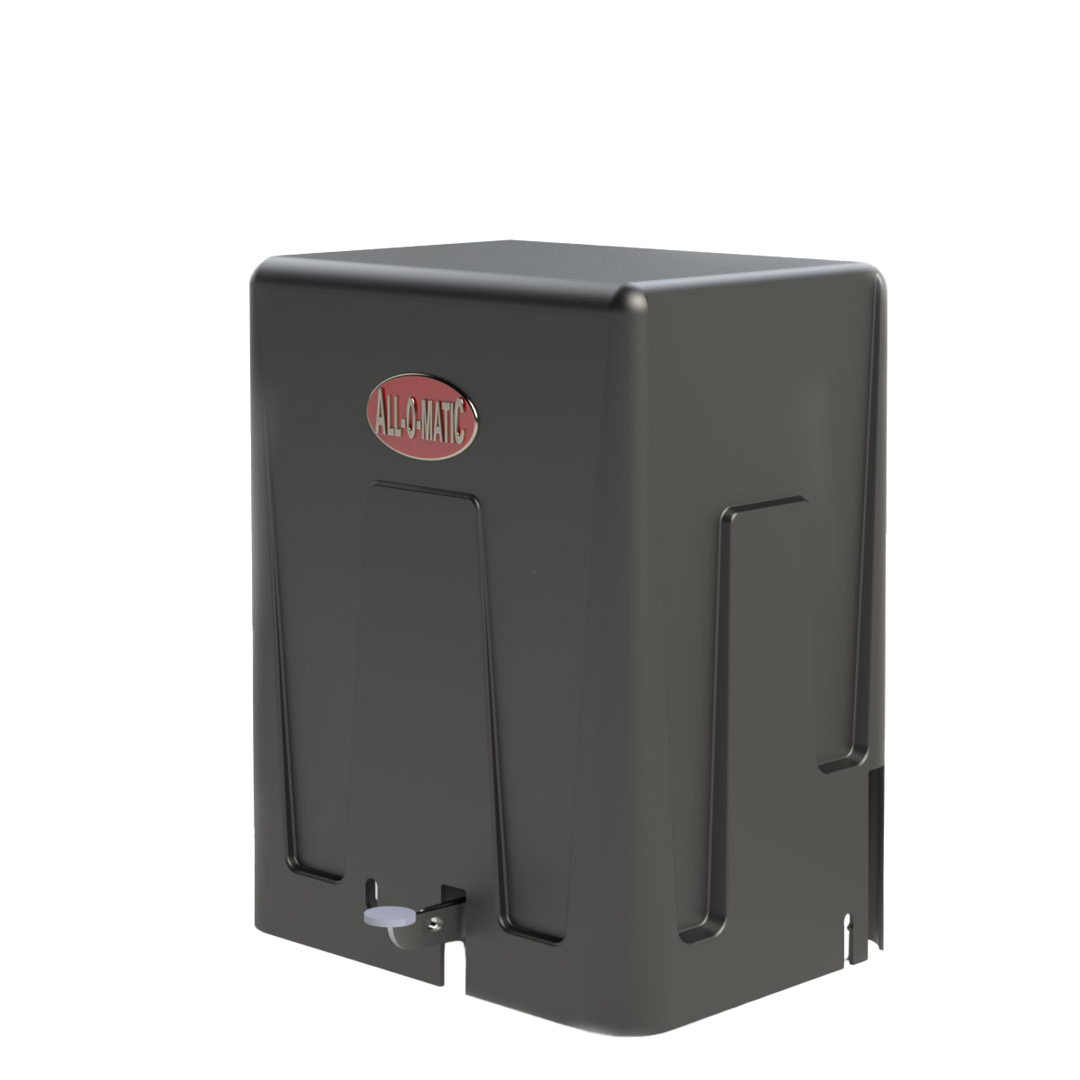

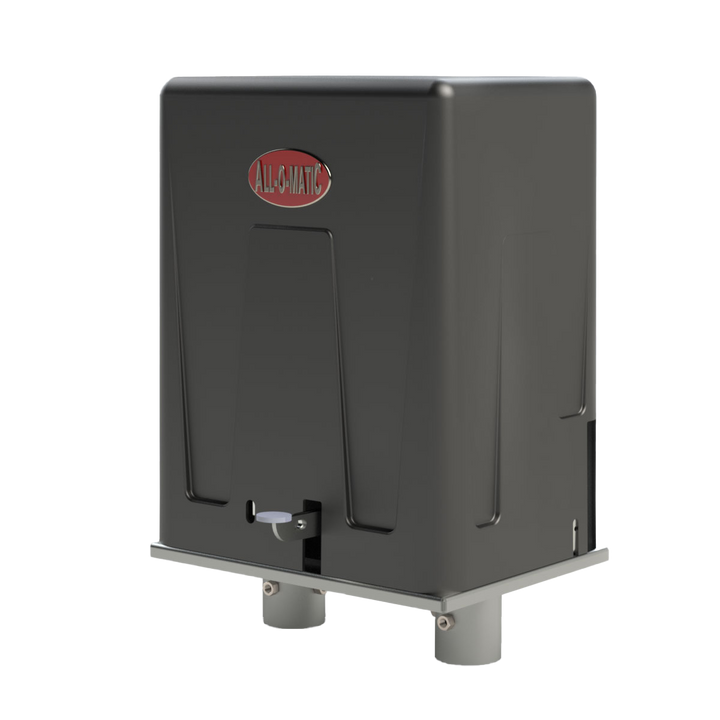

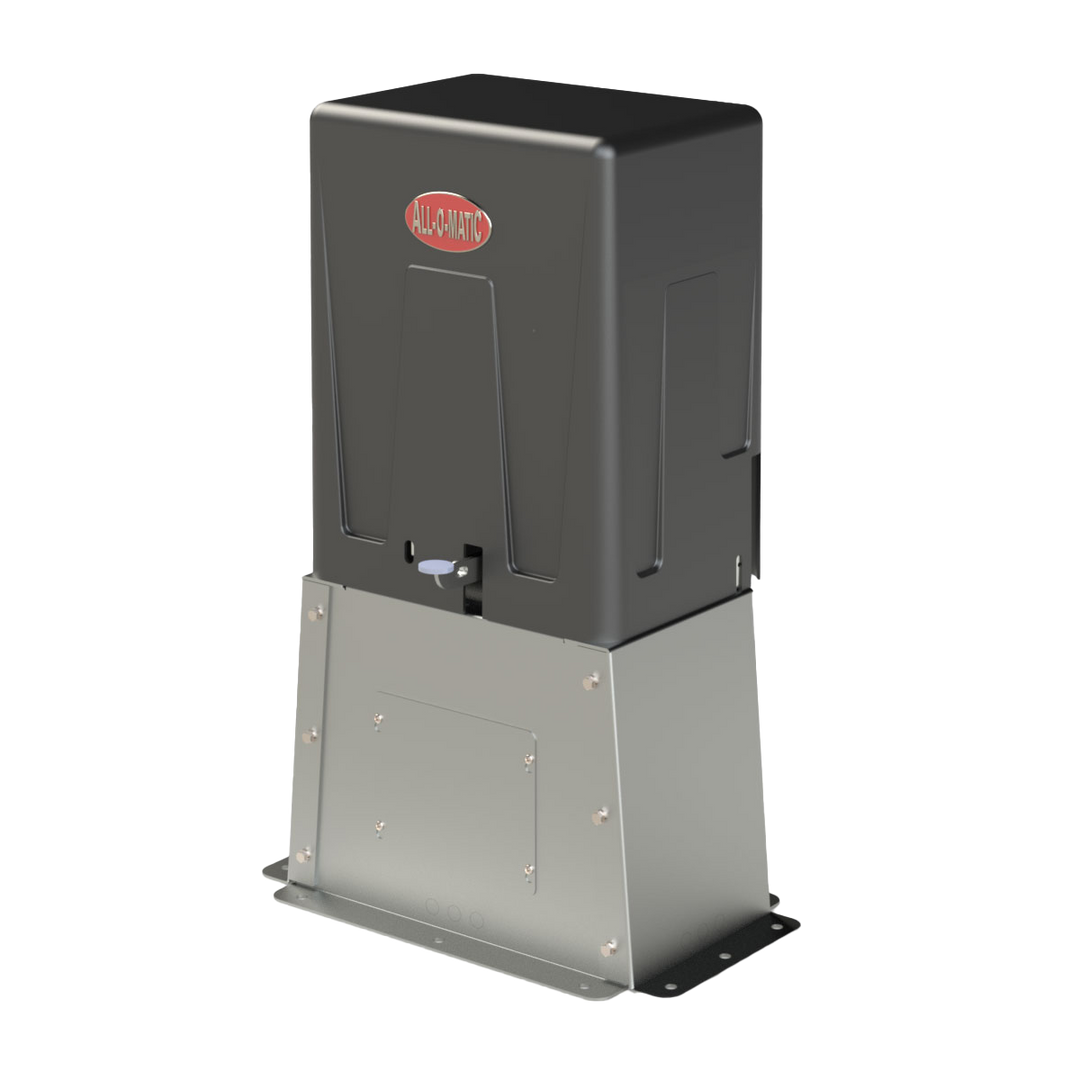

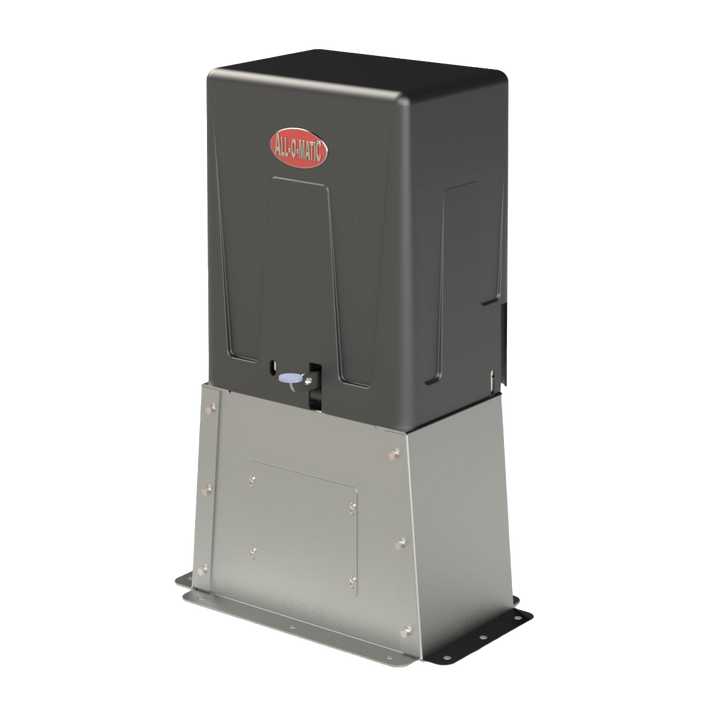

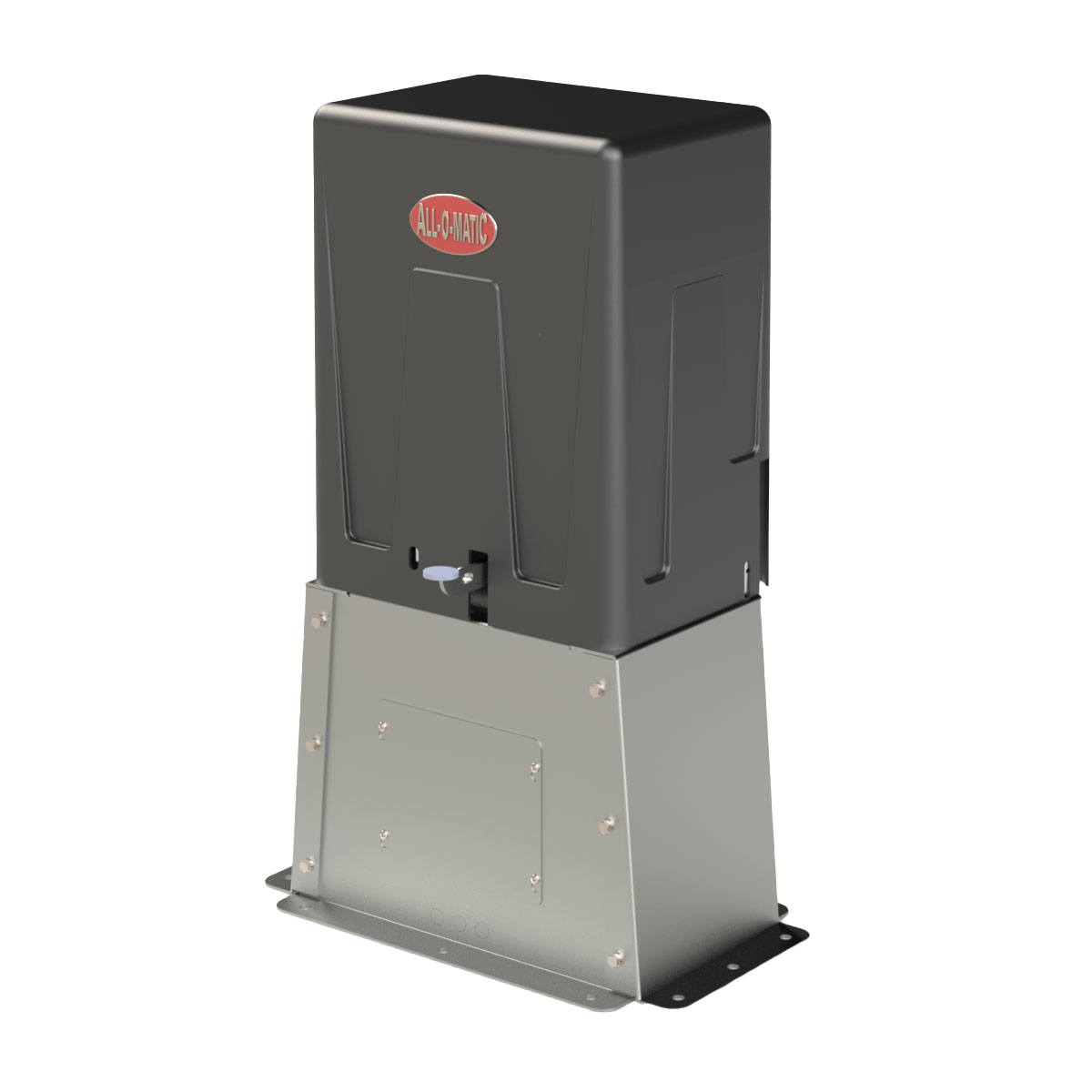

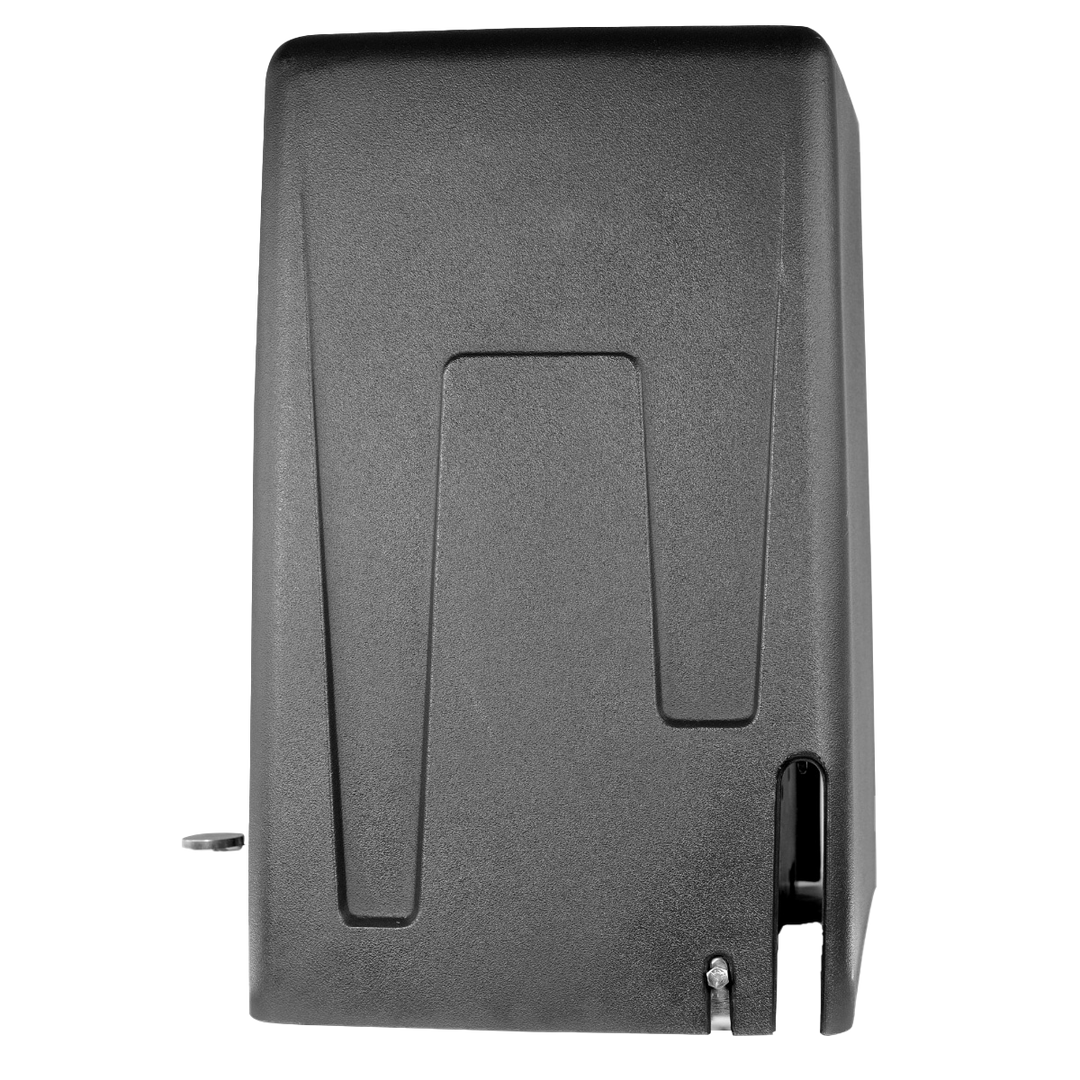

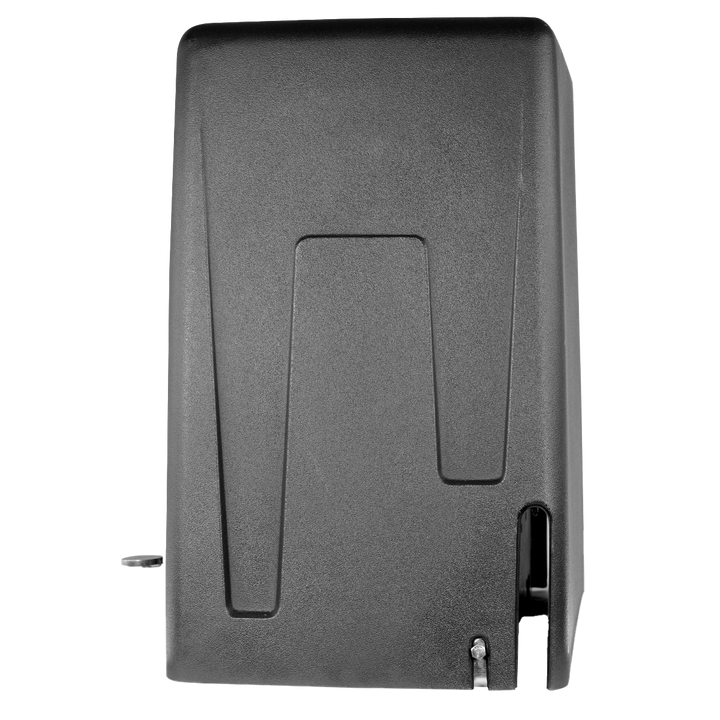

ALL-O-MATIC SL-150 AC Industrial-Grade Slide Gate Operator
The ALL-O-MATIC SL-150 AC was designed to meet the demands of gate installers who require an operator capable of handling heavy traffic, commercial/industrial heavy doors, and extreme weather conditions. This powerful unit combines a heavy-duty frame, reliable gearbox, and robust AC motor to make even the most challenging installations simple and effective. Available in both ½ HP and 1 HP configurations, the SL-150 AC can move gates up to 2,500 lbs. and 60 feet in length, making it ideal for substantial commercial and industrial applications.
Industrial-Strength Performance
- Available in two powerful motor options:
- ½ HP model handles gates up to 1,500 lbs.
- 1 HP model handles gates up to 2,500 lbs.
- Maximum gate length of 60 feet for expansive entrances
- Continuous duty cycle for high-traffic commercial applications
- Consistent 12 inches per second gate travel speed
- 30:1 gearbox with internal clutch for maximum torque and safety
Professional Design Features
- Mechanical foot pedal release for effortless manual operation
- Built-in loop rack for simplified safety device installation
- Simple and dependable control board with backwards compatibility
- Field-tested and proven for over 20 years of reliable service
- Heavy-duty construction for durability in extreme conditions
Installation Versatility
- 120V AC single-phase power supply compatibility
- Complete package includes 20 feet of 40NP chain with mounting hardware
- Extreme temperature tolerance (-40°F to 160°F)
- UL 325 2018 compliant for code-approved installations
- Direct-drive design eliminates potential belt-related issues
Specifications
Gate Capacity
- Maximum Gate Weight:
- ½ HP: 1,500 lbs.
- 1 HP: 2,500 lbs.
- Maximum Gate Length: 60 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: ½ HP and 1 HP options
- Gate Speed: 12 inches per second
- Power Options: 120 VAC
- Battery Backup: Not applicable
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 30:1 with internal clutch
- Dimensions (W×L×H): 15" × 19.5" × 25"
- Shipping Weight: 150 lbs.

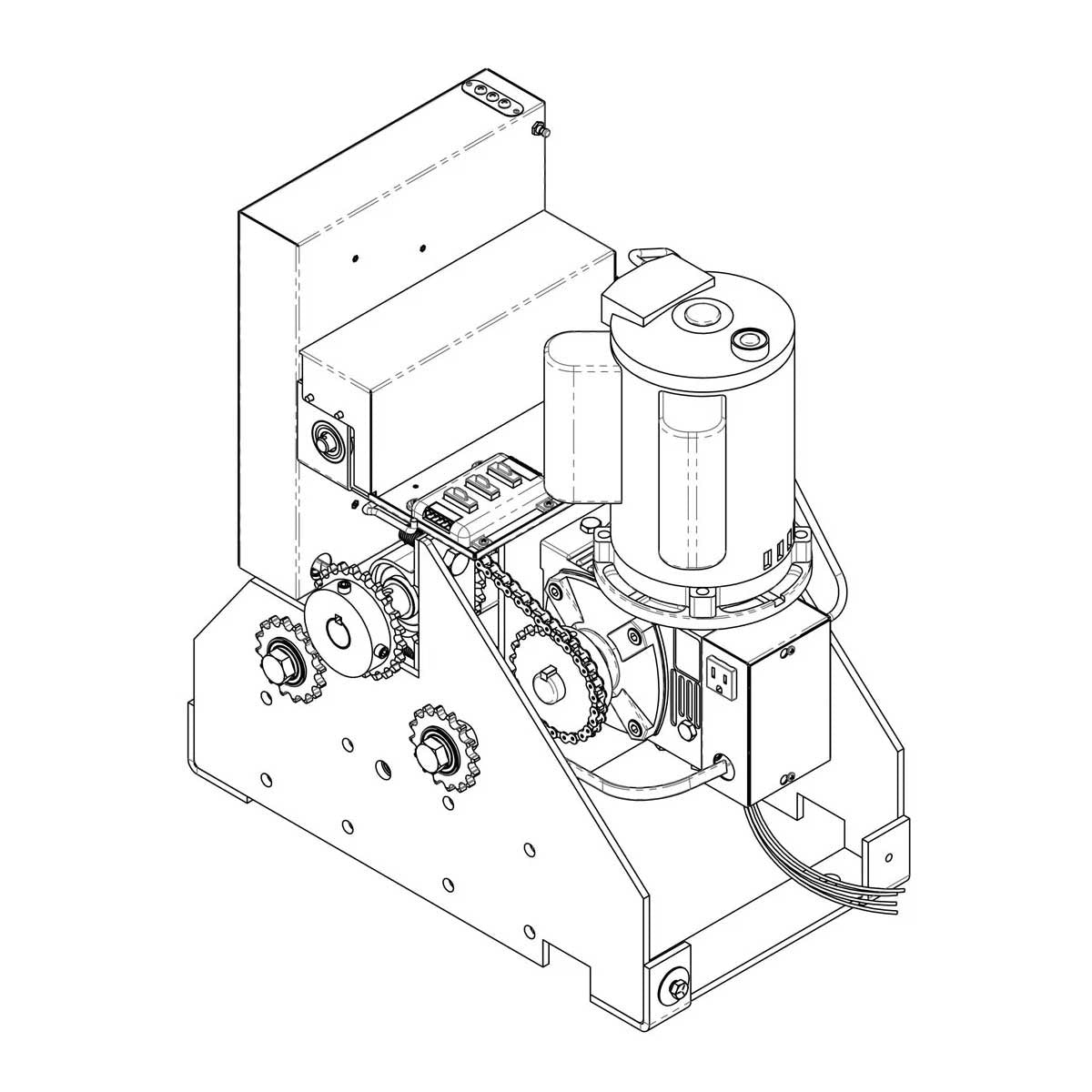

Drive Components
- Main Sprocket Size: 40B22×1
- Chain Size: 40NP (20' included)
- Gearbox Sprocket: 40B22×1
- Limit Shaft Sprocket: 41B10×5/8
- Breaker Requirement: 20 amp dedicated
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. Also available in a DC version with full-time battery backup and a brushless DC motor (SL-150 DC).
