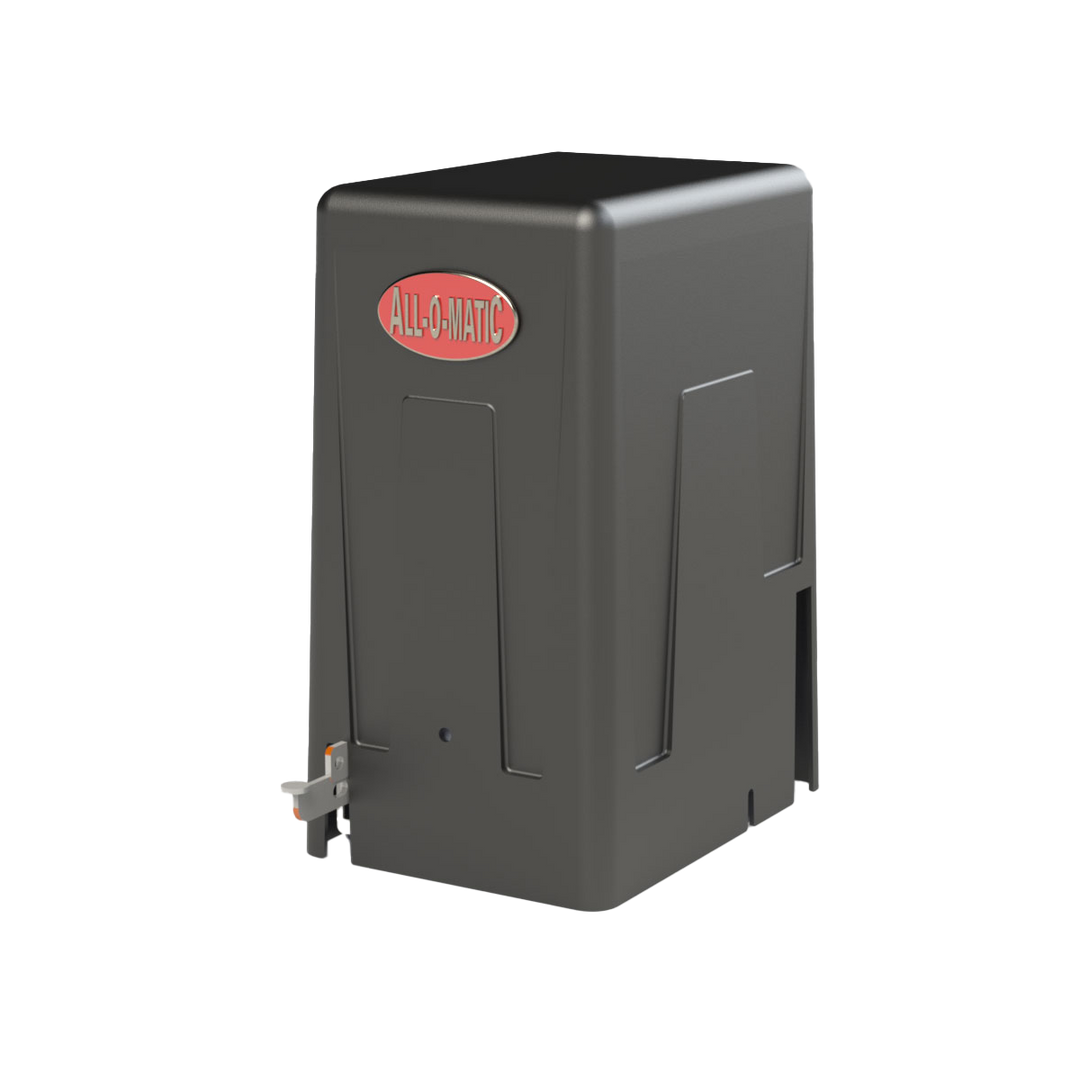

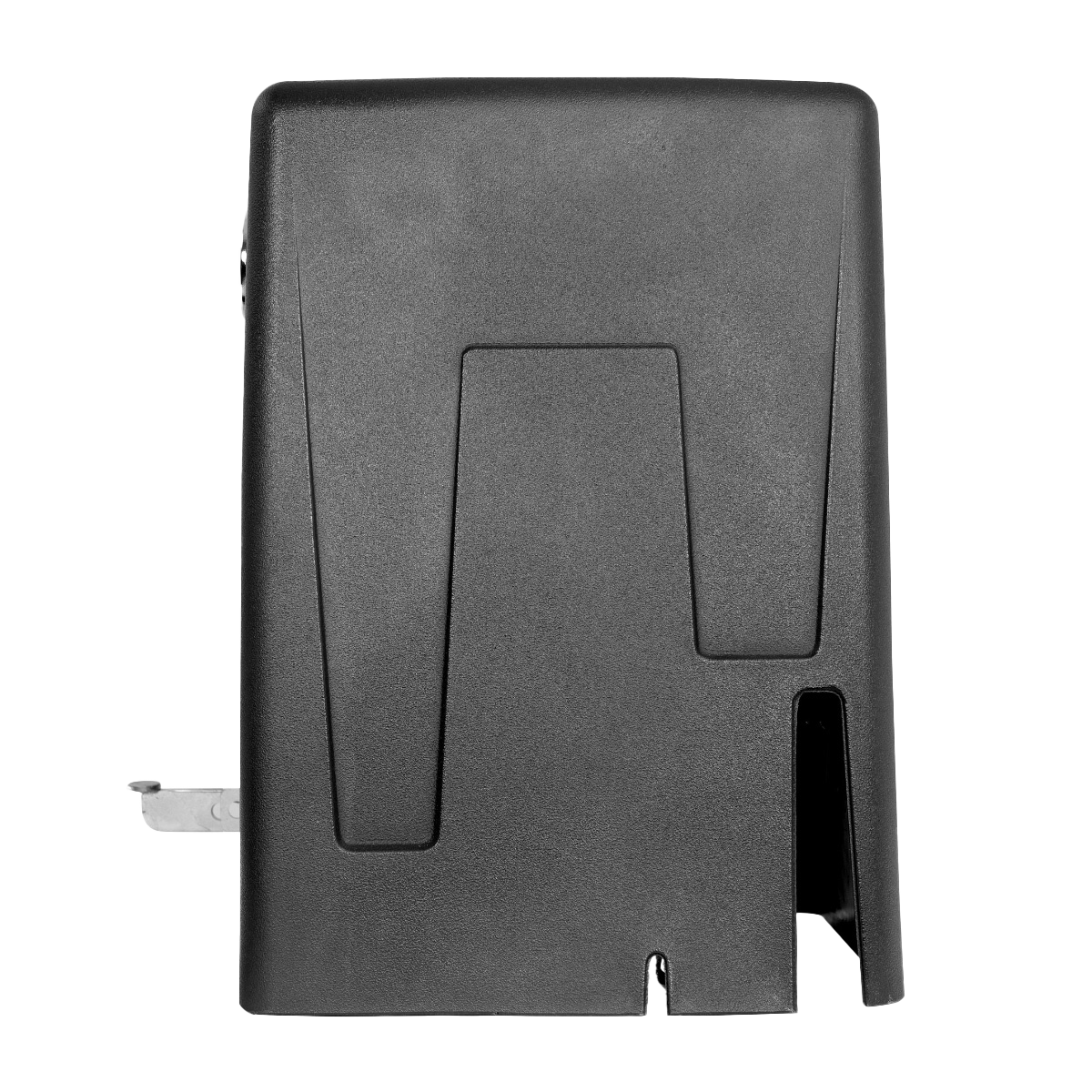

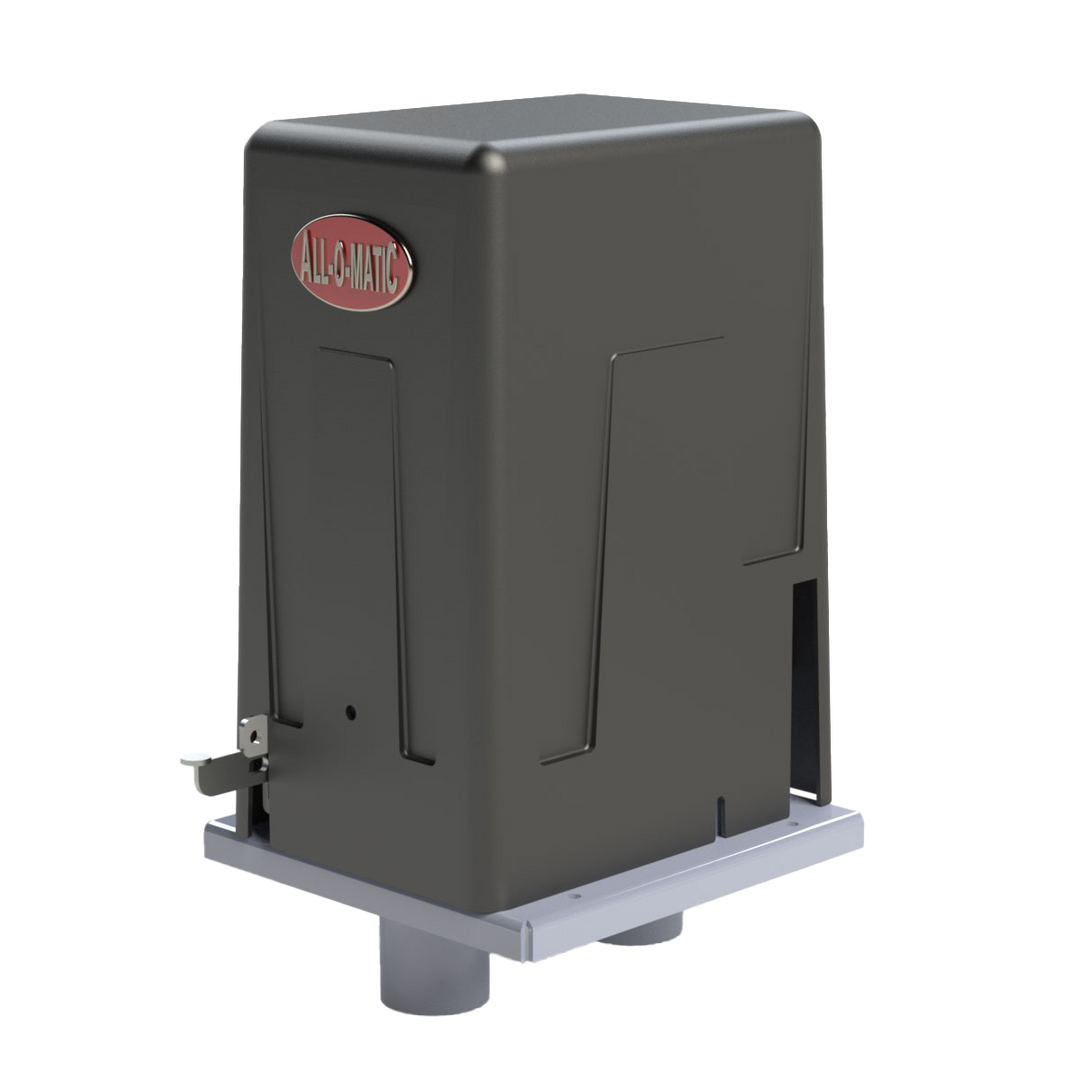

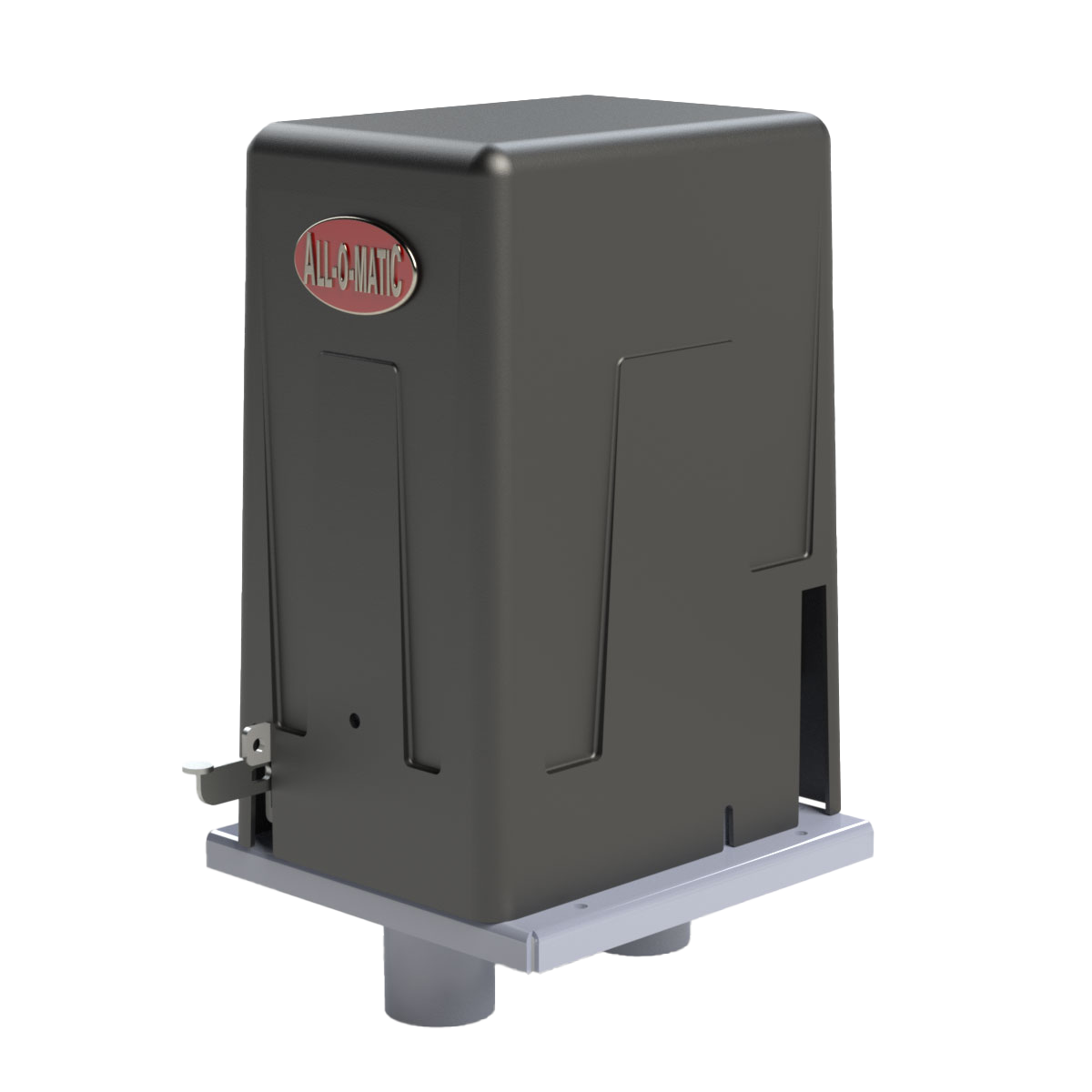

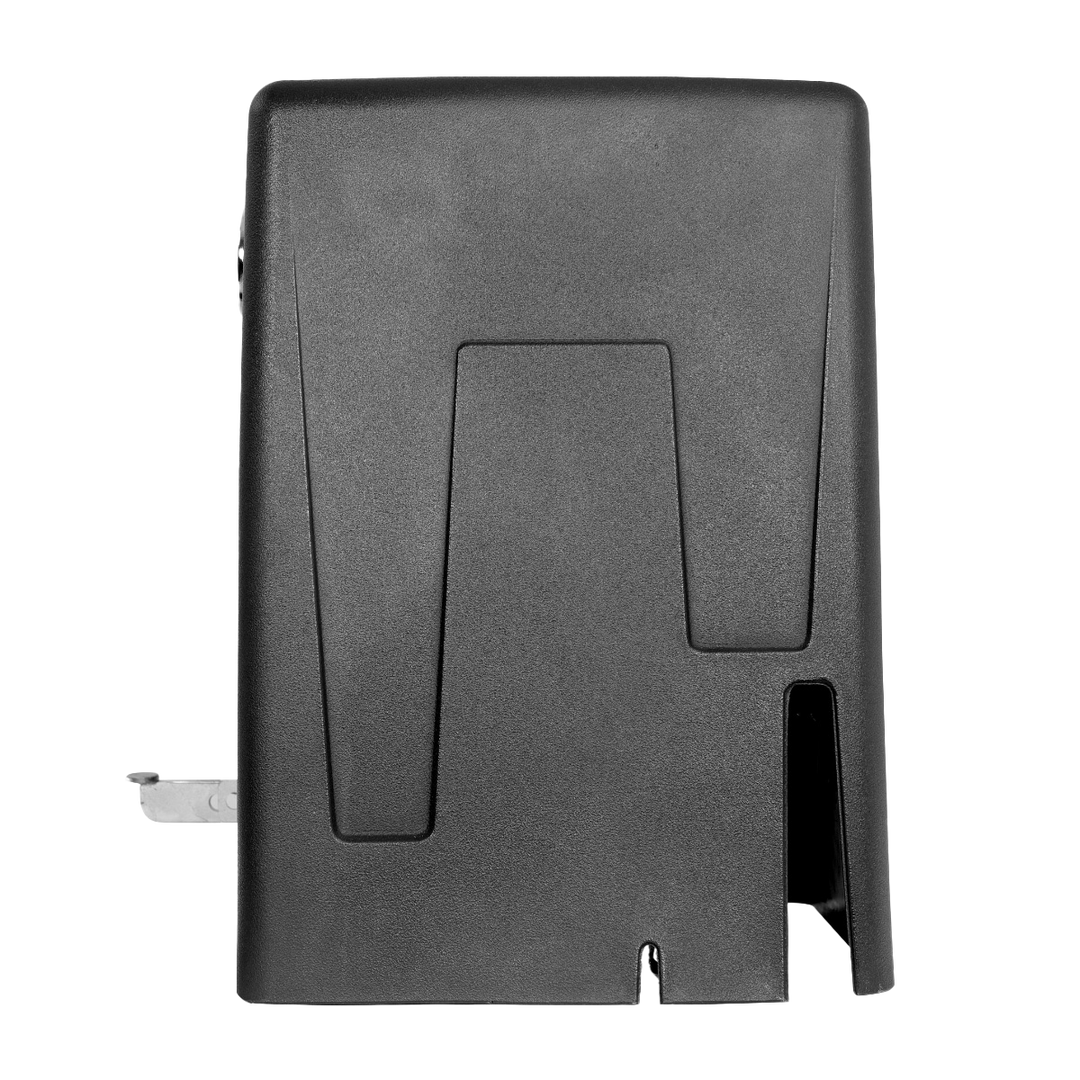

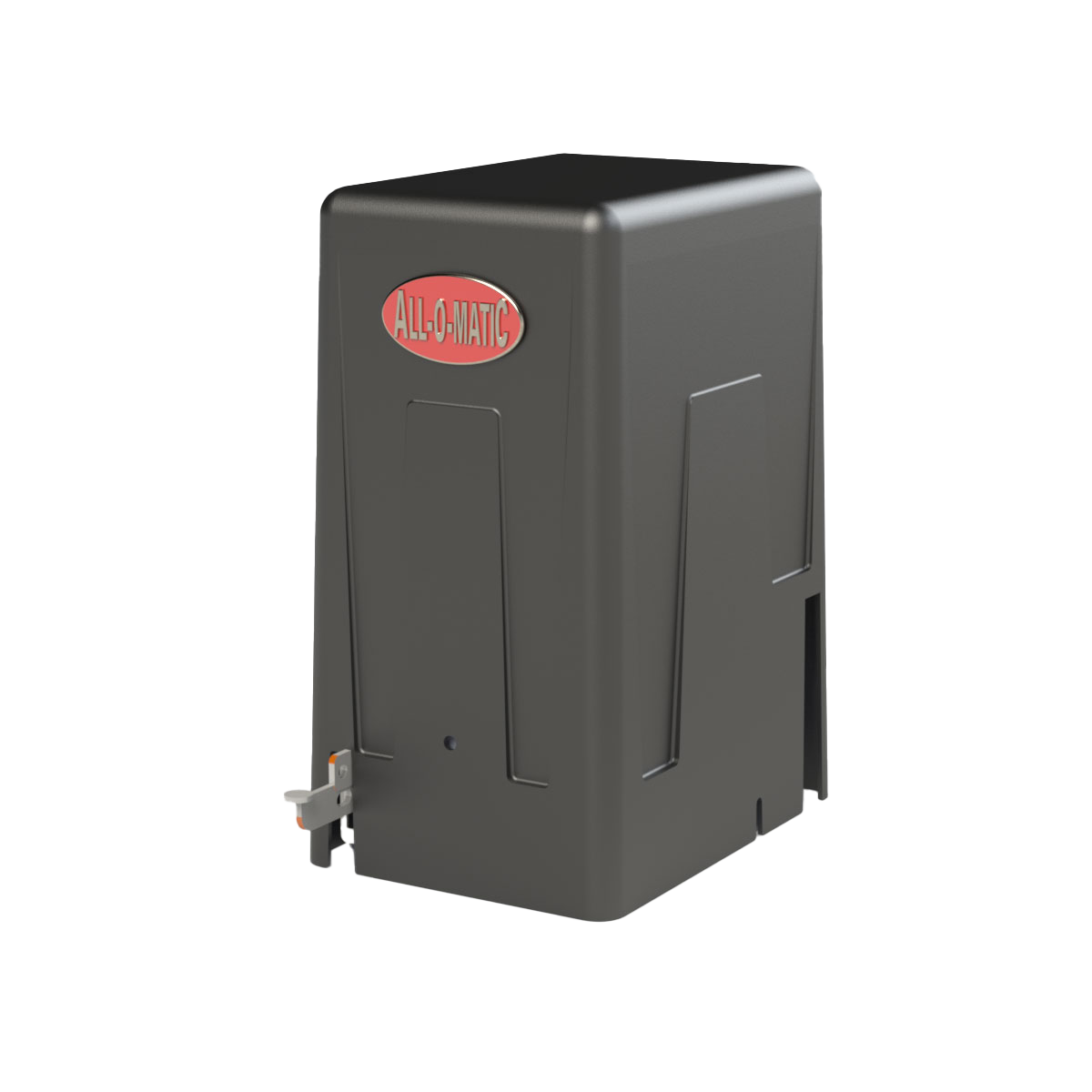

ALL-O-MATIC SL-100FP DC PRO Heavy-Duty Slide Gate Operator with Battery Backup
The ALL-O-MATIC SL-100FP DC PRO represents the pinnacle of slide gate automation technology, designed to be the strongest and most durable DC gate operator in its class. This powerful unit utilizes industry-first brushless motor technology, delivering high torque with smooth, quiet operation that requires zero maintenance. With the capacity to handle gates up to 2,000 lbs and 50 feet long, this operator is engineered for demanding residential and commercial applications where reliability is paramount.
Advanced Brushless Technology
- Powerful 24 VDC brushless ½ HP motor with maintenance-free operation
- Handles gates up to 2,000 lbs. and 50 feet in length
- Adjustable gate speed from 6-12 inches per second
- Continuous duty cycle for high-traffic applications
- Total in-house design, programming, and construction for unmatched quality
Intelligent Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- Integrated wireless primary/secondary capability
- USB port for diagnostic data extraction and firmware updates
Uninterrupted Operation
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 80 cycles of operation during power outages
- Solar power compatibility for remote installations
- Mechanical foot pedal release for manual operation
- Built-in loop rack for simplified safety device integration
Specifications
Gate Capacity
- Maximum Gate Weight: 2,000 lbs.
- Maximum Gate Length: 50 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: 24 VDC brushless – ½ HP motor
- Gate Speed: Adjustable 6-12 inches per second
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: 80 cycles on a 1,000 lb. gate
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 20:1 with internal disconnect
- Dimensions (W×L×H): 12" × 17.5" × 23.5"
- Shipping Weight: 130 lbs.

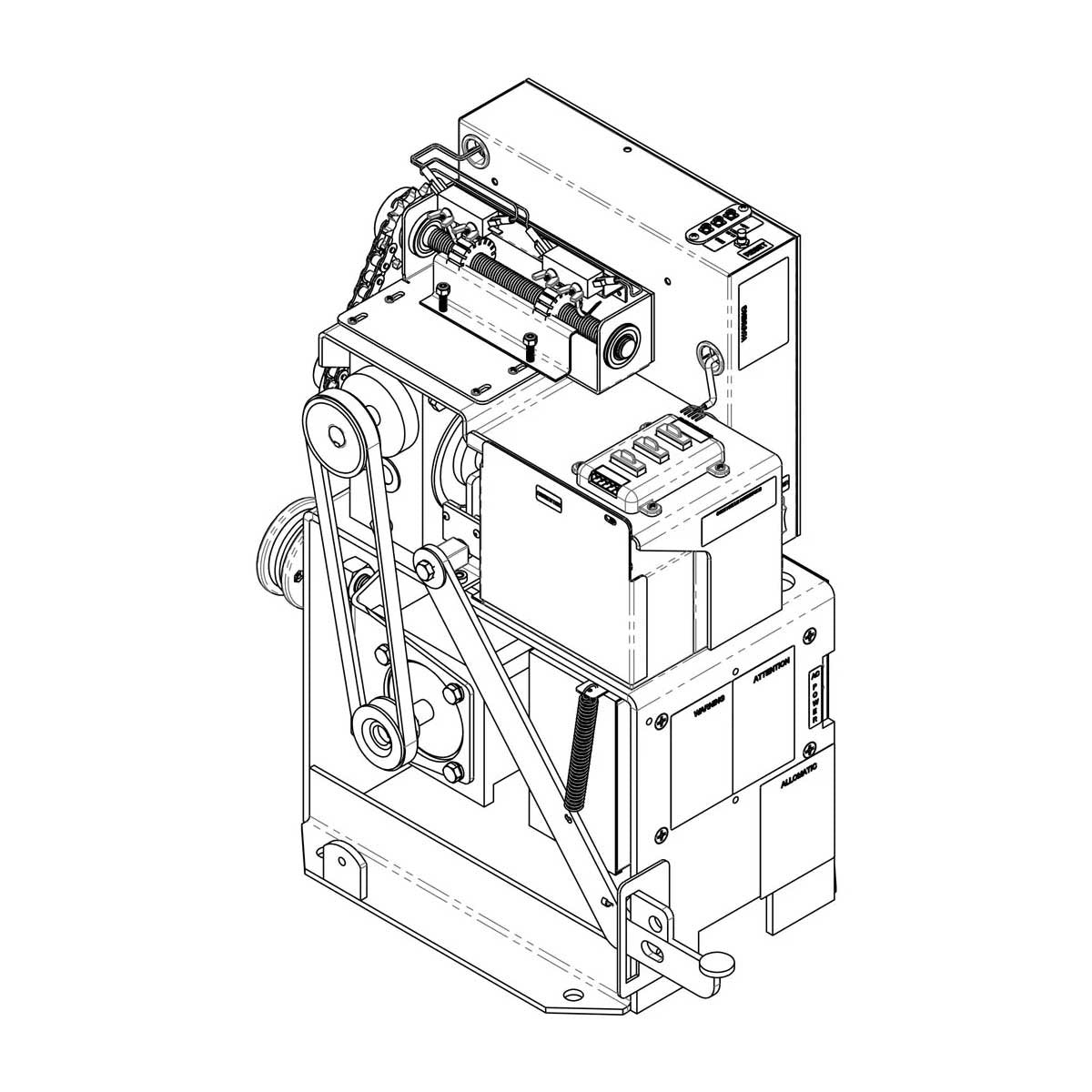

Drive Components
- Belt Size: 4L-260 (AX24)
- Main Sprocket Size: 41B22×7/8
- Chain Size: 41NP (20' included)
- Limit Shaft Sprocket: 41B15×5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 ½" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- 7-day timer functionality for scheduled operations
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, 24V solar panels, V-groove wheels, and guide rollers.
