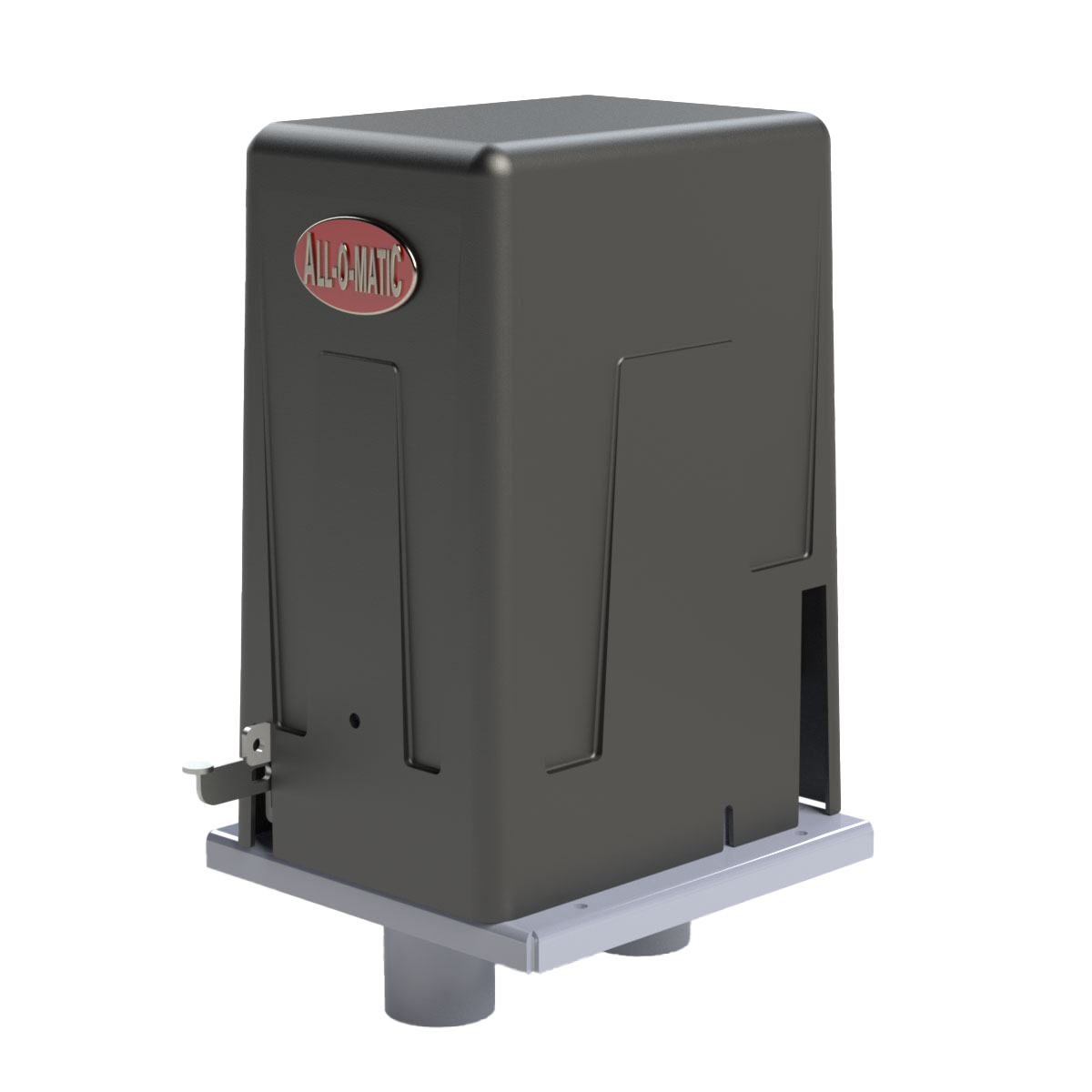

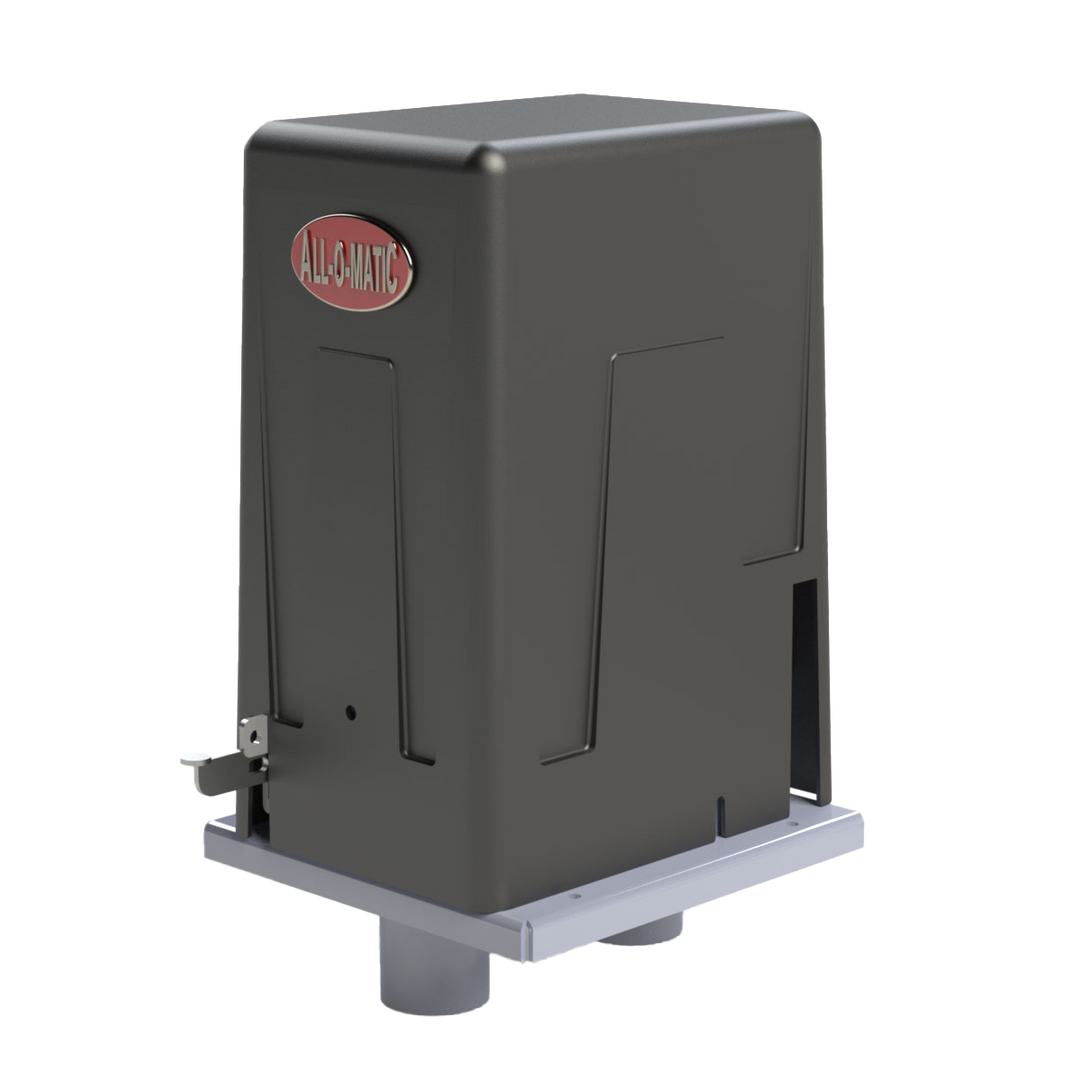

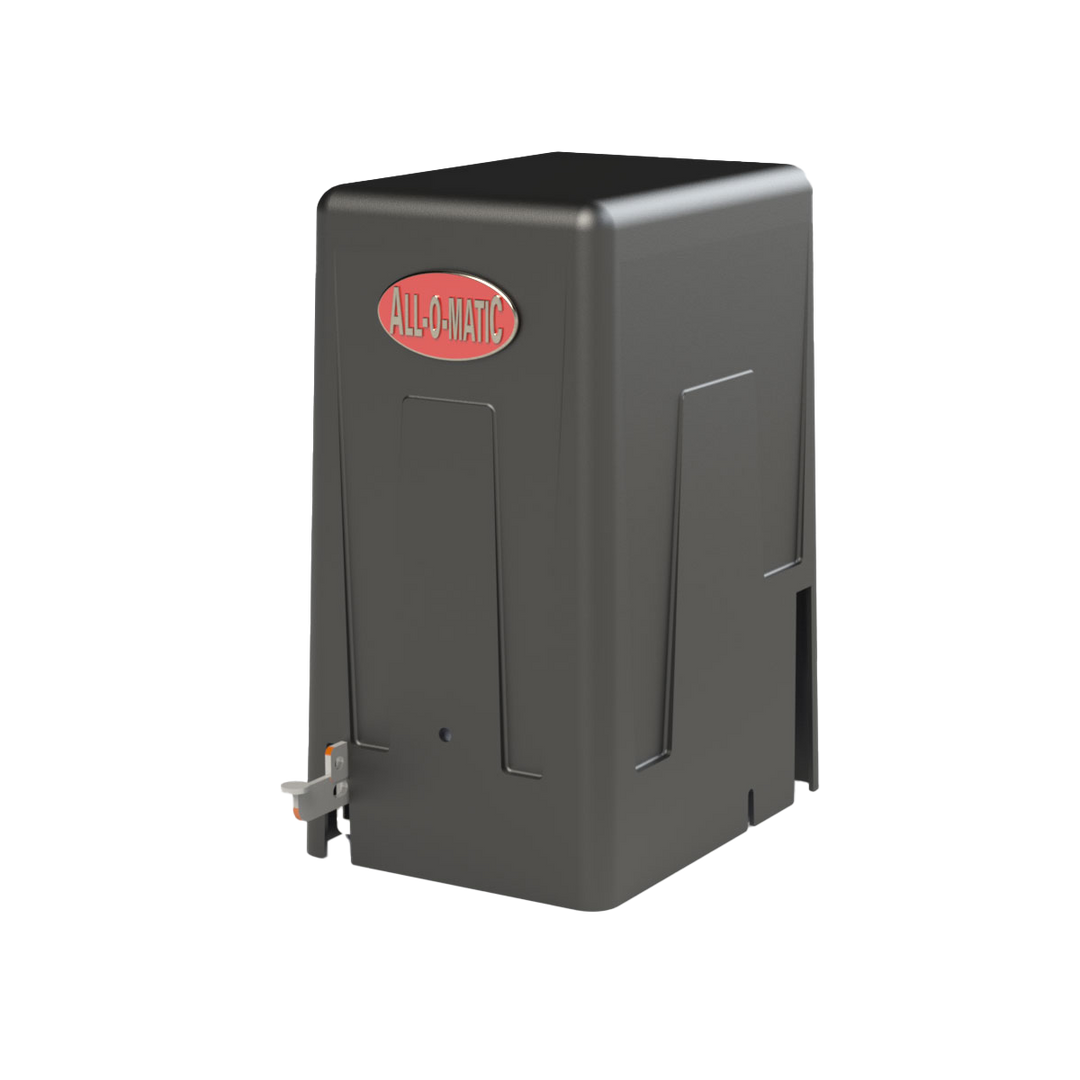

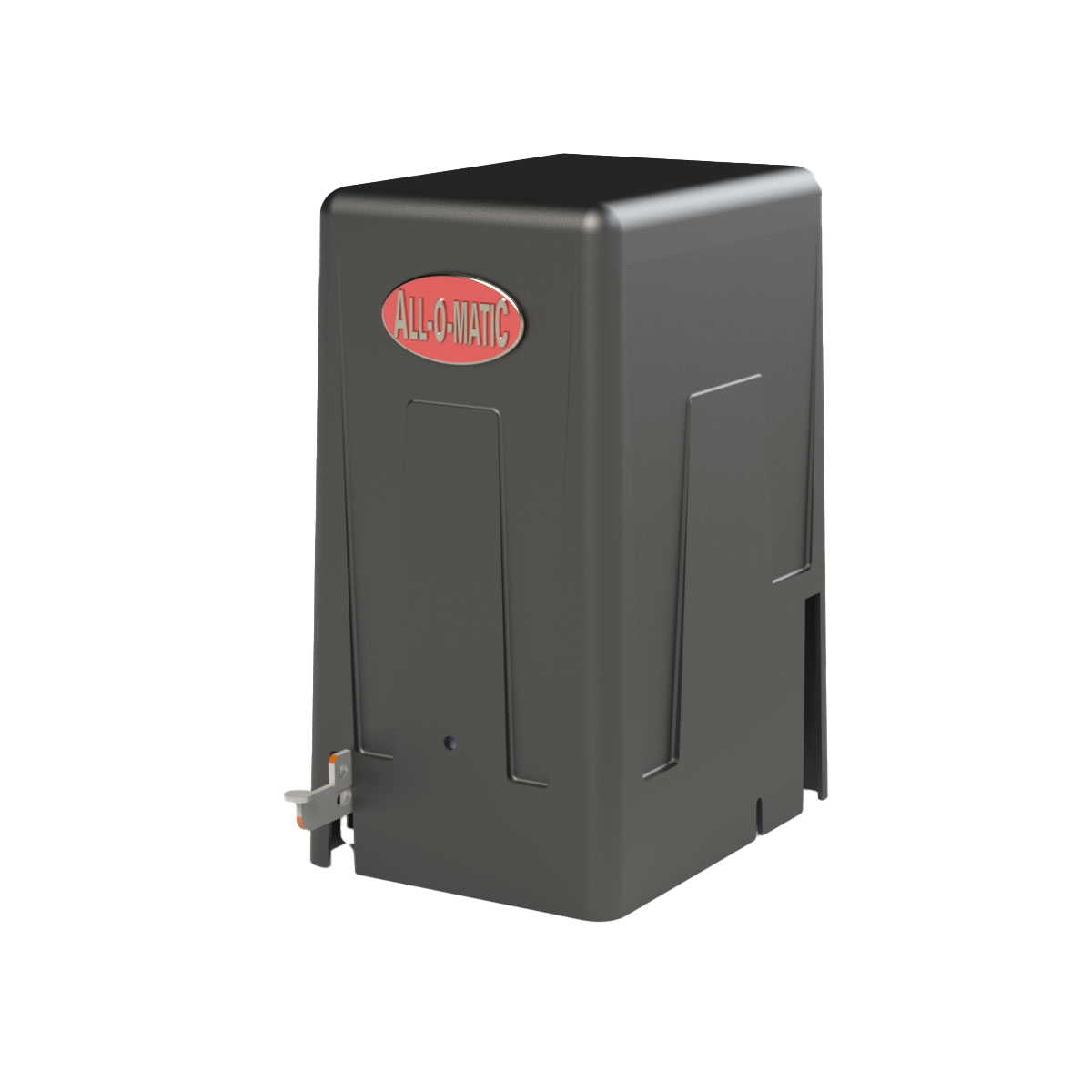

ALL-O-MATIC SL-100FP AC Heavy-Duty Slide Gate Operator with Foot Pedal Release
The ALL-O-MATIC SL-100FP AC is a highly popular automatic gate operator, combining affordability with reliable performance for demanding applications. This slim, 110-volt AC operator is rated for continuous duty on gates up to 1,000 lbs and 37 feet wide, delivering years of dependable service. Originally designed for high-traffic commercial applications like public storage facilities, this operator has become the industry standard for installations requiring unfailing reliability and minimal maintenance.
Industrial-Grade Reliability
- Powerful ½ HP motor handles gates up to 1,000 lbs. and 37 feet long
- Continuous duty cycle for high-traffic commercial applications
- Enhanced 20:1 gearbox with internal disconnect for smooth operation
- Consistent 12 inches per second gate travel speed
- Field-tested for over 20 years with proven reliability
Convenient Operator Access
- Emergency foot pedal release for effortless manual operation
- Built-in loop rack for simplified safety device installation
- Simple and dependable control board with backwards compatibility
- Easy access to internal components for maintenance

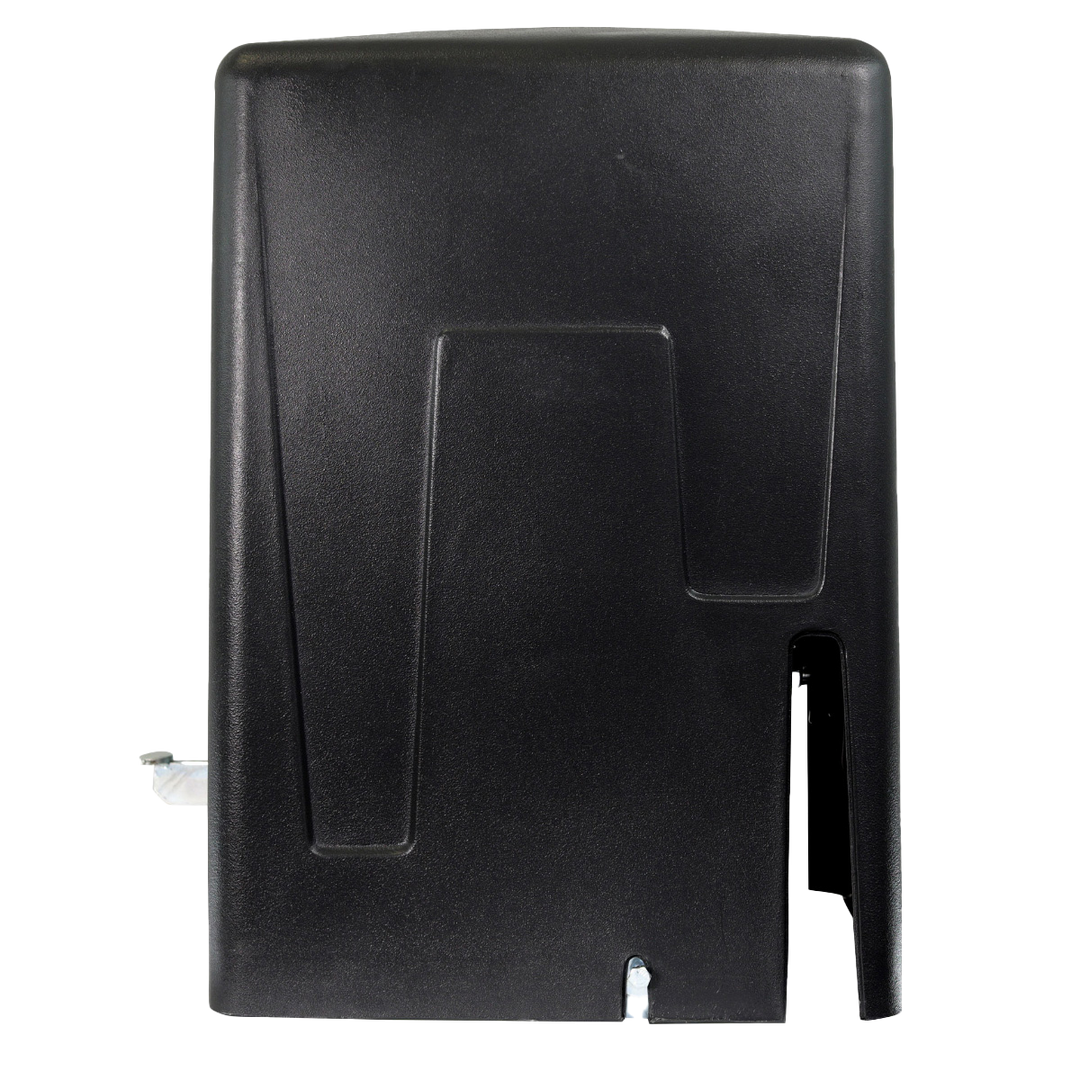

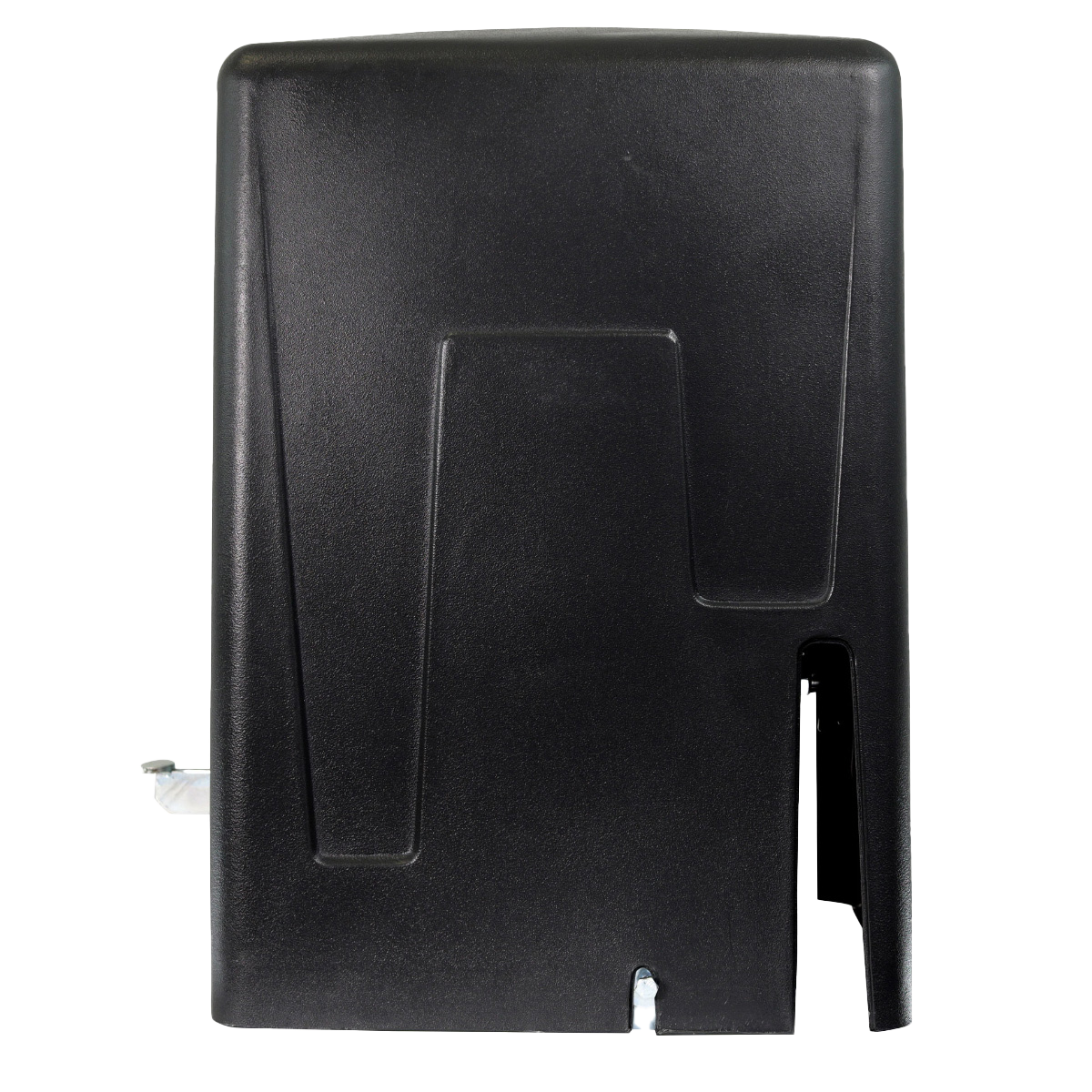

- Solid construction with indestructible rotationally molded cover
Installation Versatility
- 120V AC single-phase power supply compatibility
- Complete package includes 20 feet of 41NP chain with mounting hardware
- Pad mount configuration for secure installation
- Extreme temperature tolerance (-40°F to 160°F)
- UL 325 2018 compliant for code-approved installations
Specifications
Gate Capacity
- Maximum Gate Weight: 1,000 lbs.
- Maximum Gate Length: 37 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: ½ HP motor
- Gate Speed: 12 inches per second
- Power Options: 120 VAC
- Battery Backup: Not applicable
- Operating Temperature Range: -40°F to 160°F

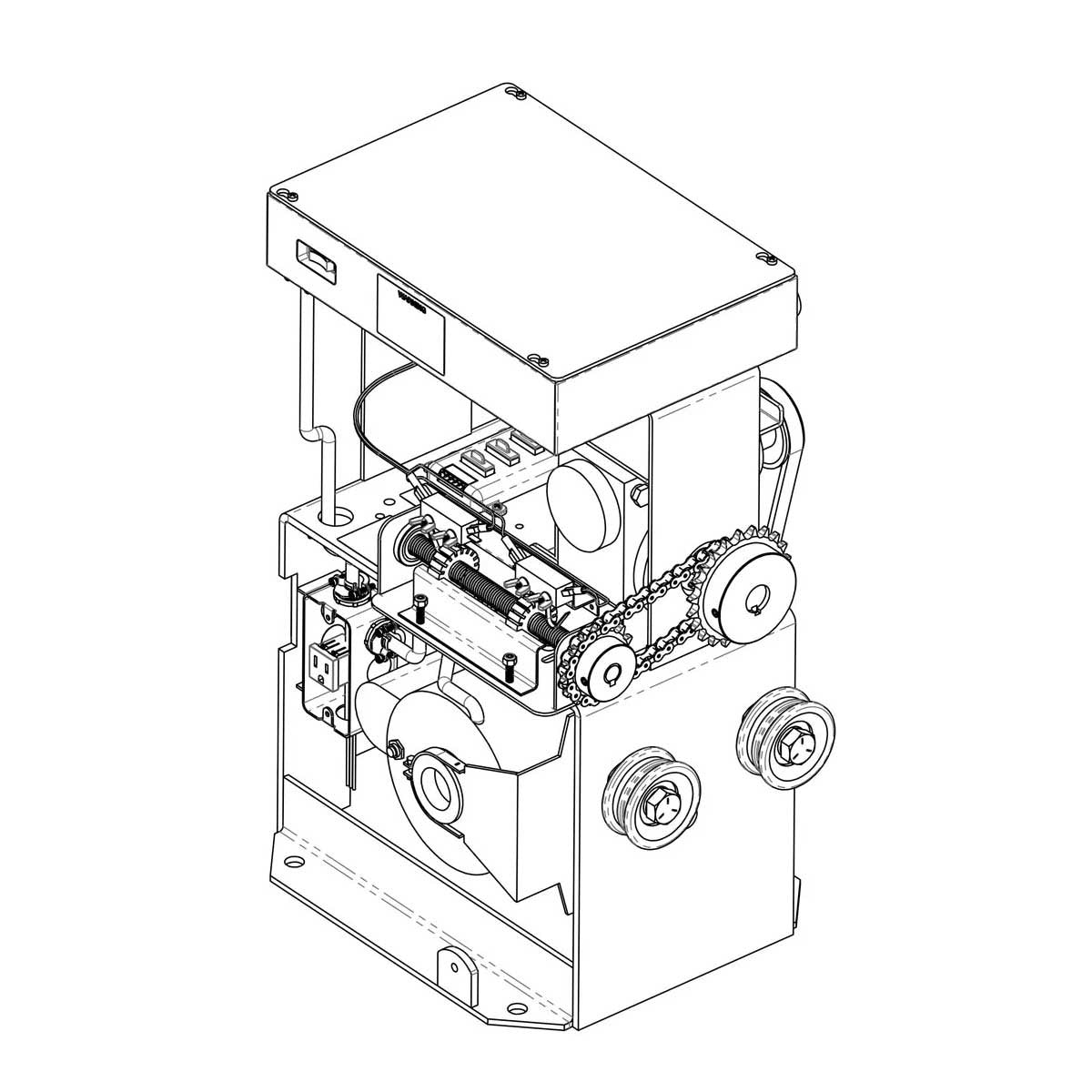

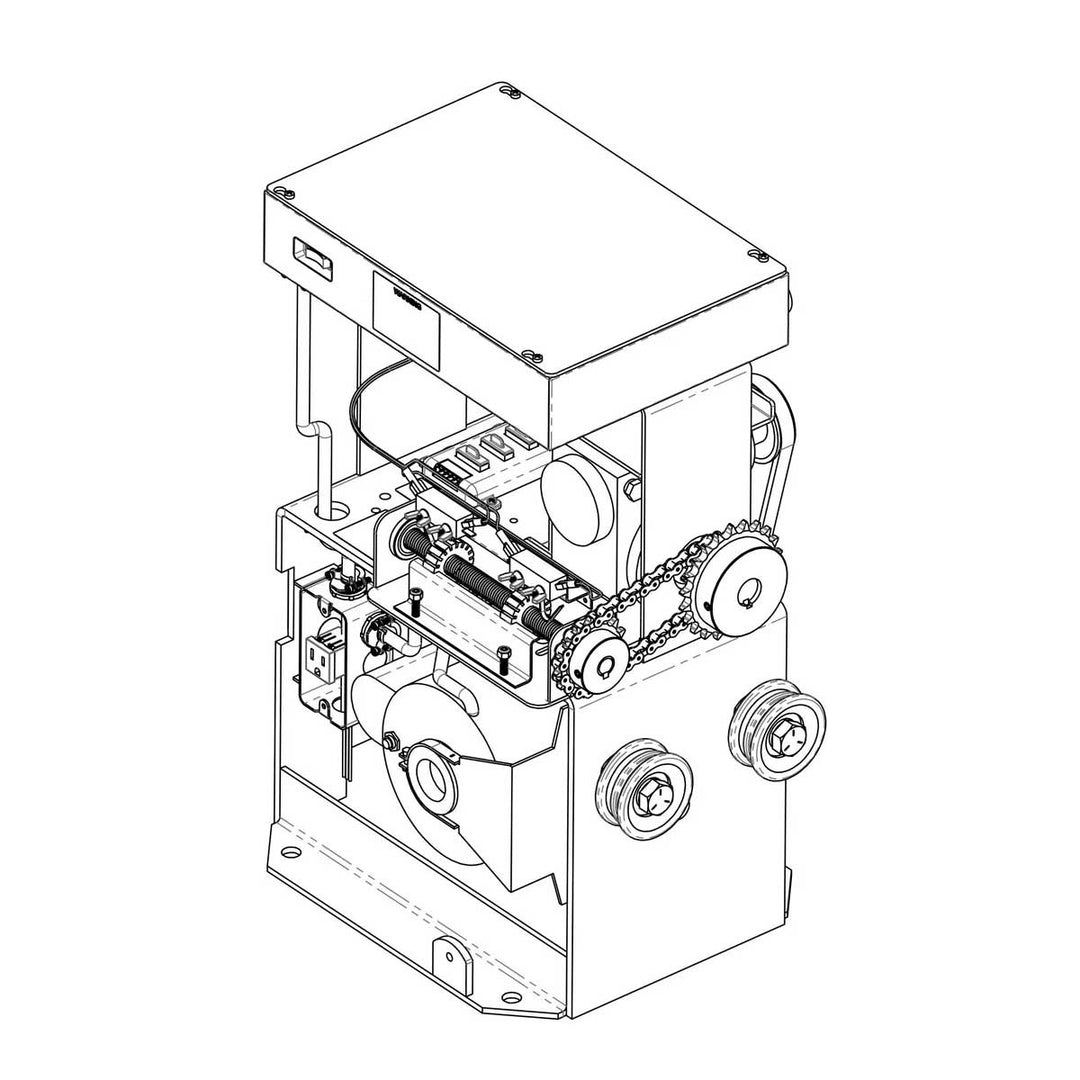

Construction & Dimensions
- Gearbox Ratio: 20:1 with internal disconnect
- Dimensions (W×L×H): 12" × 17.5" × 23.5"
- Shipping Weight: 100 lbs.
Drive Components
- Belt Size: 4L-260 (AX24)
- Main Sprocket Size: 41B22×7/8
- Chain Size: 41NP (20' included)
- Limit Shaft Sprocket: 41B15×5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 ½" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Mechanical foot pedal release
- UL 325 2018 Compliant
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, mechanical foot pedal release, V-groove wheels, guide rollers, and power inverters.
