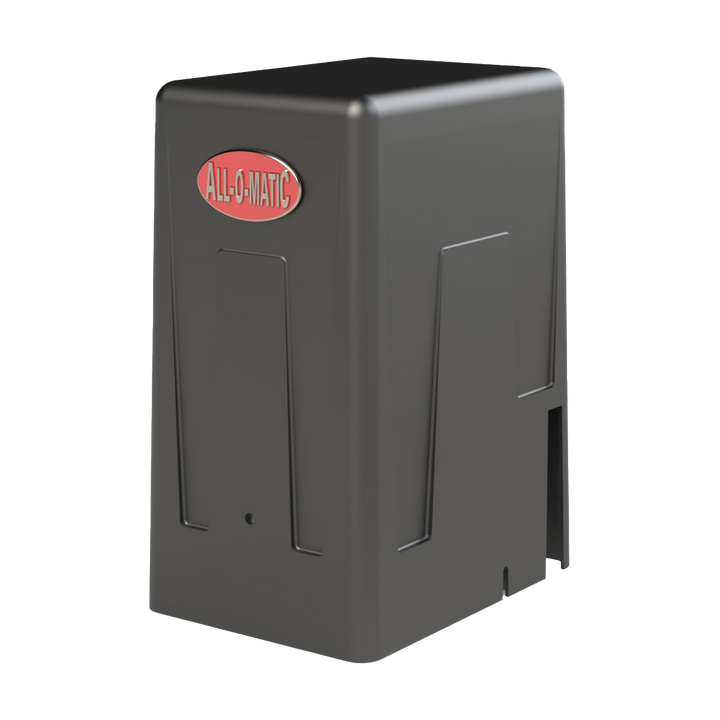

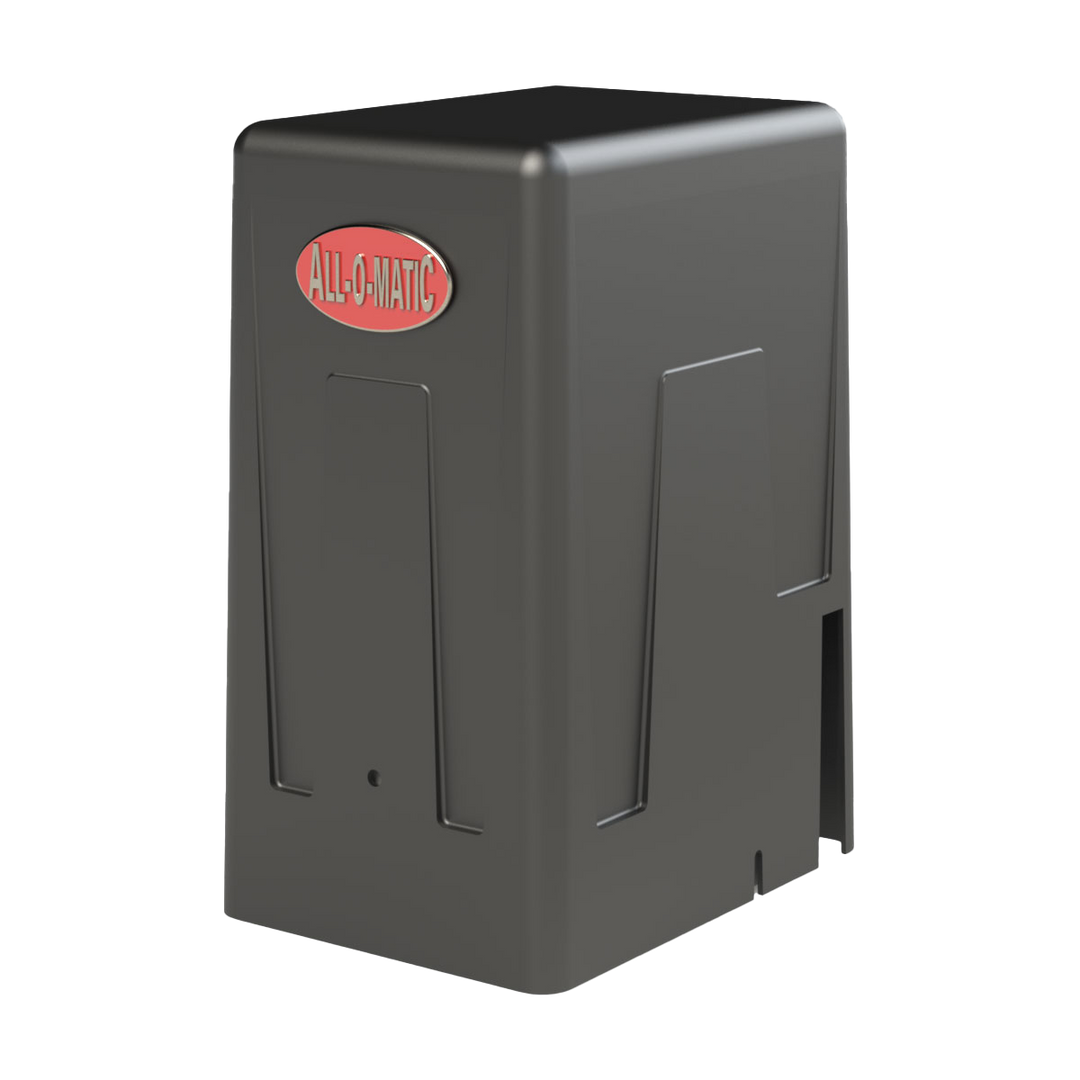

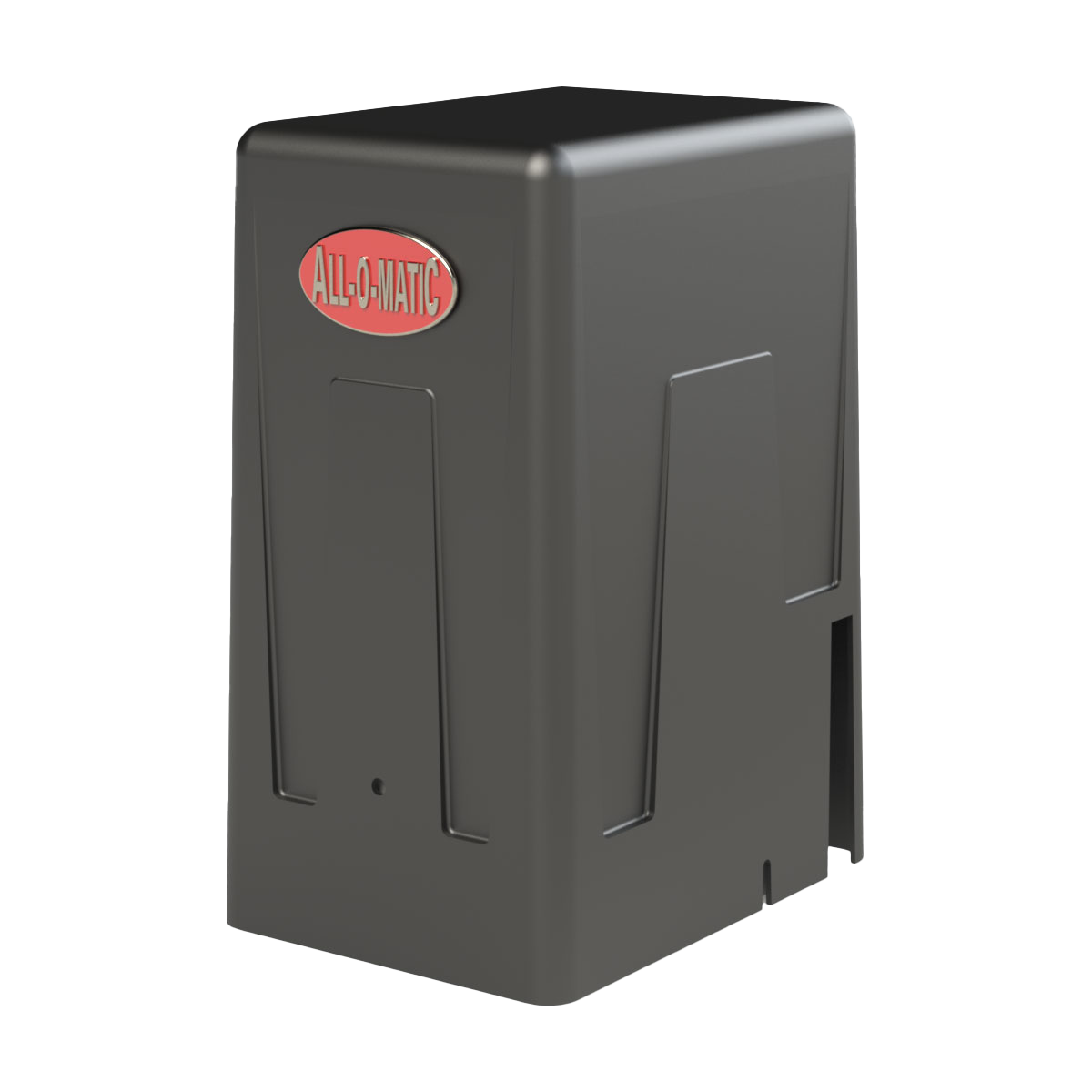

ALL-O-MATIC SL-100 AC Continuous-Duty Slide Gate Operator
The ALL-O-MATIC SL-100 AC is designed to be the strongest, most durable AC gate operator in its class, setting a new standard for residential and commercial slide gate installations. This reliable powerhouse can move gates up to 1,000 lbs. and 37 feet wide, making it the perfect solution for properties requiring dependable access control under demanding conditions. Featuring field-tested components and a proven control board, the SL-100 AC delivers years of trouble-free operation.
Professional-Grade Performance
- Powerful ½ HP motor handles gates up to 1,000 lbs. and 37 feet in length
- Continuous duty cycle for high-traffic commercial applications
- Consistent 12 inches per second gate travel speed

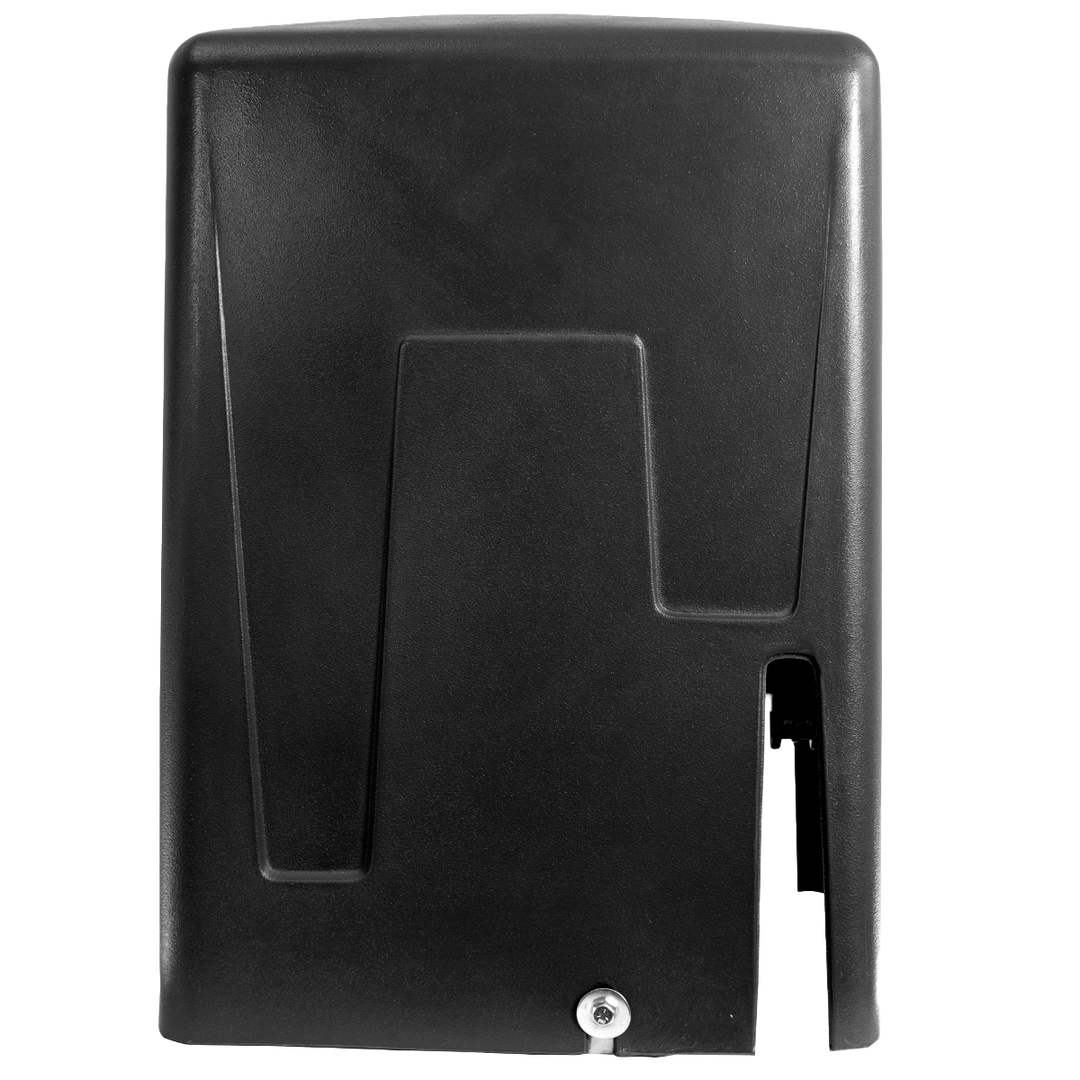

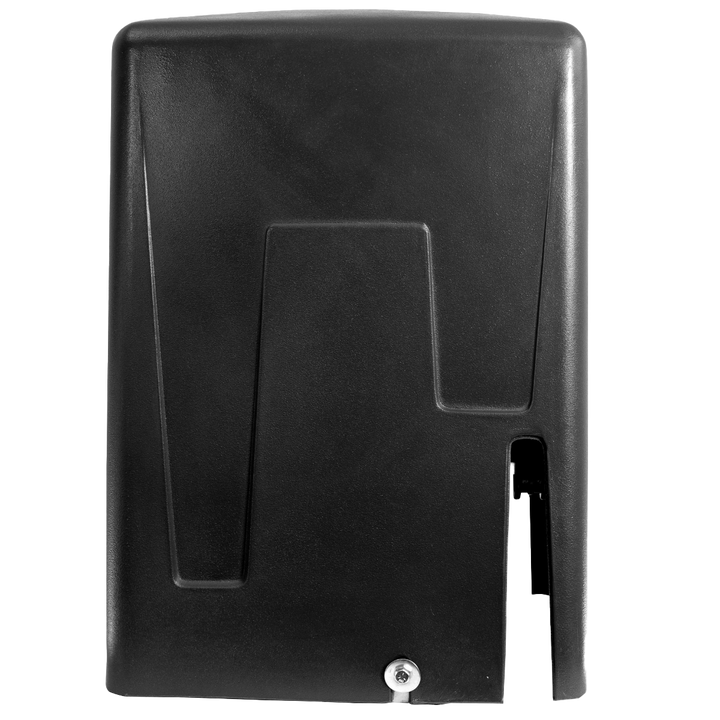

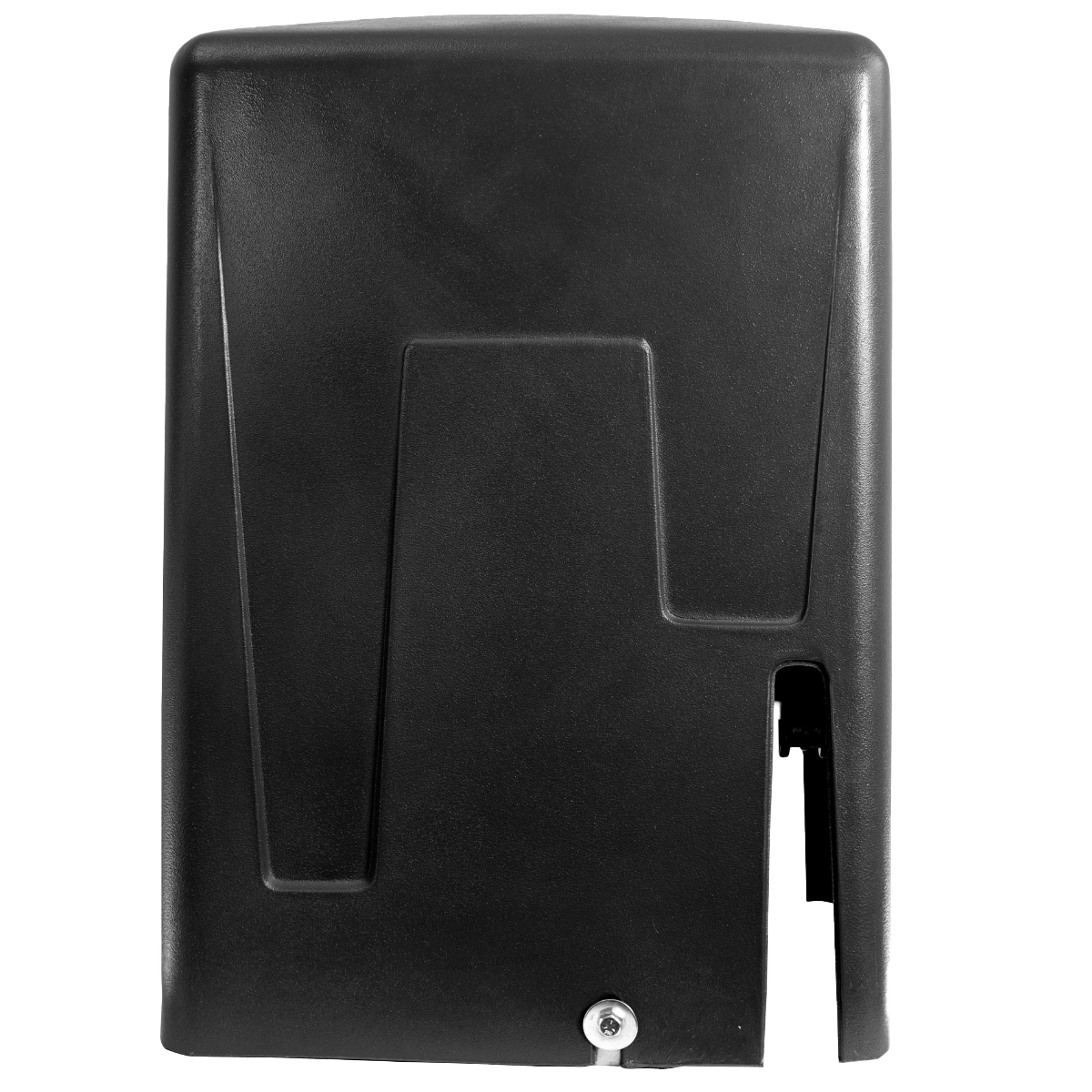

- Rotationally molded cover provides superior durability
- Proven reliability with over 20 years of field testing
User-Friendly Design
- Simple and dependable control board with backwards compatibility
- Push-open feature allows manual operation during power failures
- Pre-wired loop detector rack for simplified safety device integration
- Back-drivable 10:1 gearbox for smooth operation
- Clean design with concealed internal components
Installation Versatility
- Standard pad mount configuration
- 120V AC single-phase power supply compatibility
- Complete package includes 20 feet of 41NP chain with mounting hardware
- Designed for easy access and maintenance
- UL 325 2018 compliant for code-approved installations
Specifications
Gate Capacity
- Maximum Gate Weight: 1,000 lbs.
- Maximum Gate Length: 37 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: ½ HP AC motor
- Gate Speed: 12 inches per second
- Power Options: 120 VAC
- Battery Backup: Not applicable
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 10:1
- Cover: Rotationally molded – virtually indestructible
- Dimensions (W×L×H): 12" × 17.5" × 23.5"
- Shipping Weight: 100 lbs.
Drive Components
- Belt Size: 4L-300 (AX28)
- Main Sprocket Size: 41B22×7/8
- Chain Size: 41NP (20' included)
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 5" with 5/8" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Push open in the event of a power failure
- UL 325 2018 Compliant
Warranty: 7-year residential warranty and 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, loop detectors, V-groove wheels, guide rollers, and power inverters.
