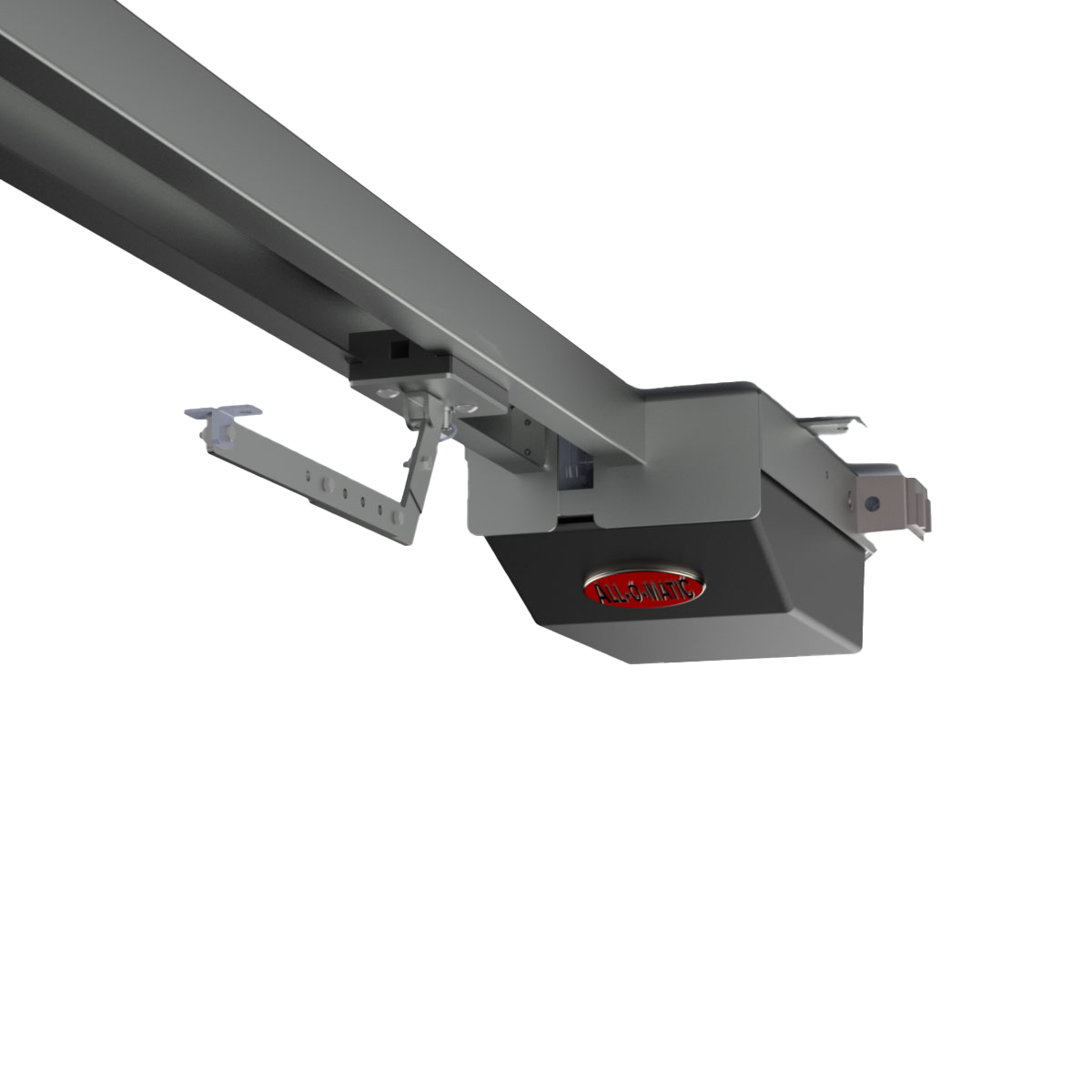

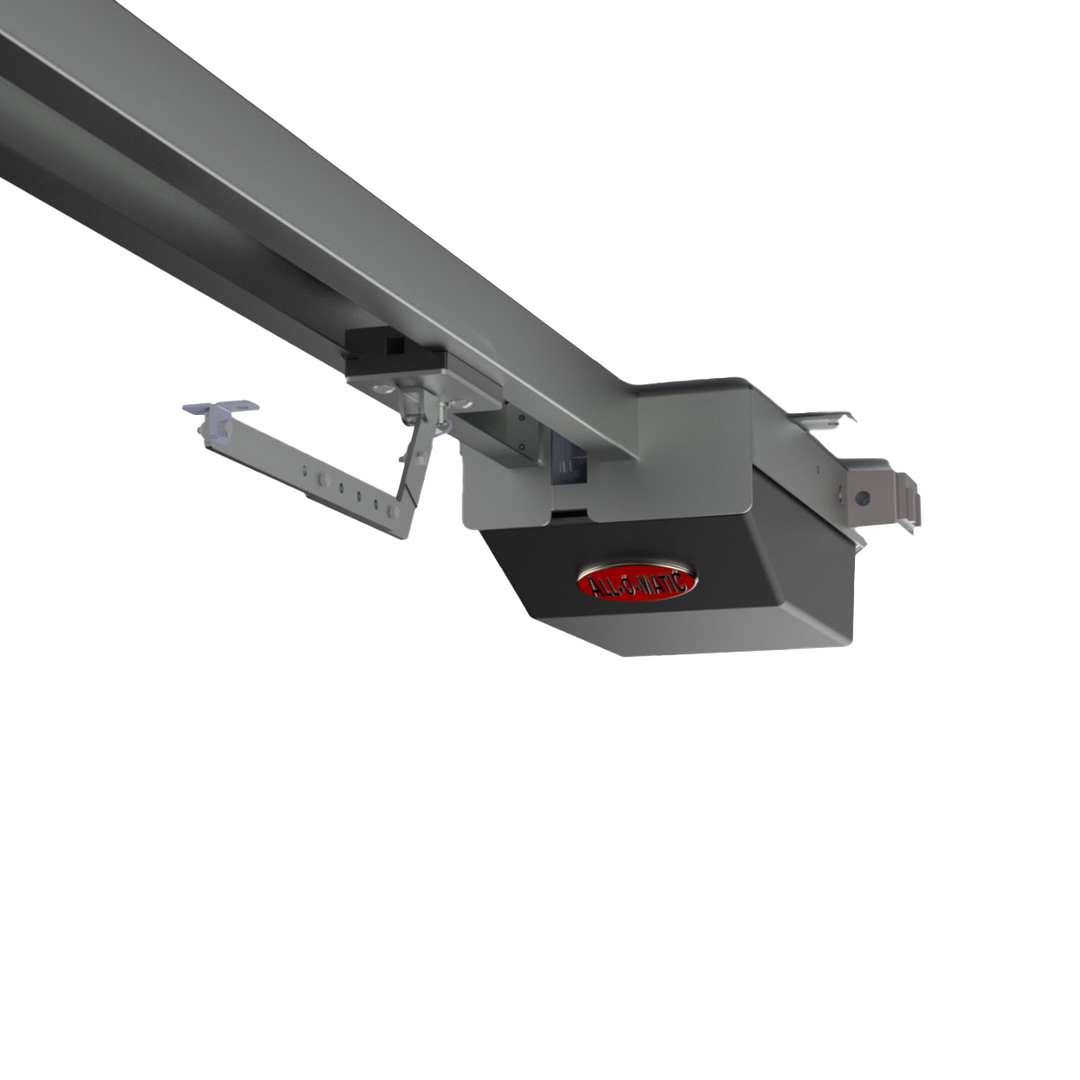

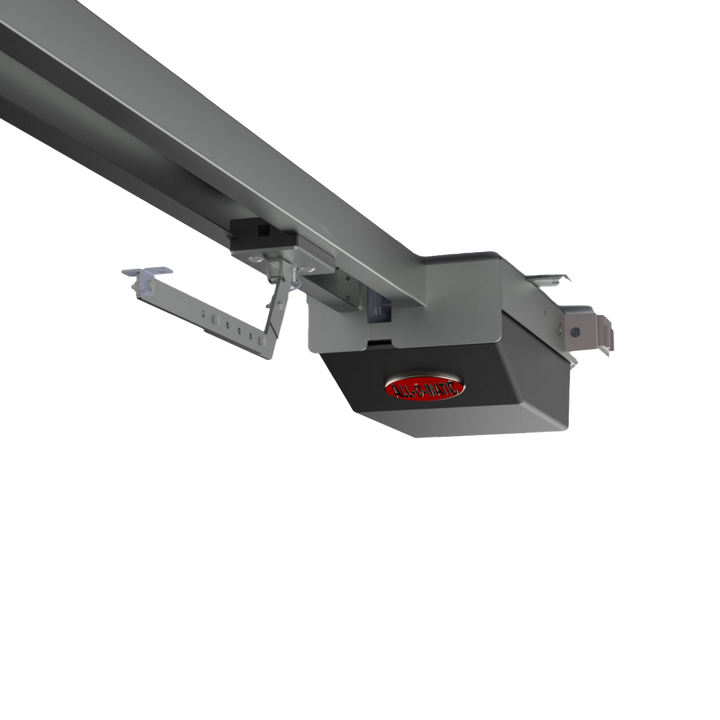

ALL-O-MATIC OH-200 DC PRO Commercial Overhead Gate Operator with Battery Backup
The ALL-O-MATIC OH-200 DC PRO is the first and only commercial overhead gate operator available with true integrated long-term battery backup. This innovative operator delivers uninterrupted access for overhead tilt-up gates in demanding applications such as apartment buildings and large underground parking structures. Featuring industry-first brushless DC motor technology, built-in loop rack, slow start/stop functionality, and included 10ft rails, this complete system provides seamless performance even during power outages, making it the premier choice for properties that require continuous gate operation.
Uninterrupted Operation
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Seamlessly switches from AC power to backup mode during outages
- Up to 100 cycles of backup operation on an 800 lb. gate
- Unlike other systems that open and die after a single cycle
- Essential for multi-residential and commercial applications
Advanced Brushless Technology
- 24VDC brushless ½ HP motor for superior reliability
- Zero maintenance design eliminates routine service requirements
- Handles gates up to 800 lbs. and 20 feet in length
- Adjustable opening speed from 14-26 seconds (6.5' to 8' gate)
- Smooth, quiet operation ideal for residential settings
Intelligent Control System
- LCD display with on-board diagnostics for quick troubleshooting
- Digital adjustments for precision operation tuning
- Programmable auto-close timer and obstruction sensing
- USB port for diagnostic data extraction and firmware updates
- Built-in volt meter through LCD display for system monitoring
Professional Installation Features
- Pre-wired loop rack for simplified safety device installation
- Lockable quick release drive arm and carriage for manual operation
- Auxiliary relay for additional device control
- 7-day timer functionality for scheduled operations
- Solar power compatibility for alternative energy installations
Specifications
Gate Capacity
- Maximum Gate Weight: 800 lbs.
- Maximum Gate Length: 20 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: ½ HP 24VDC brushless motor
- Gate Speed: 14-26 seconds for full open (6.5' to 8' gate)
- Power Options: 120 VAC
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: 100 cycles on 800 lb. gate
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 30:1
- Dimensions (W×L×H): 13" × 144" × 8" (includes 10ft rails)
- Shipping Weight: 100 lbs.

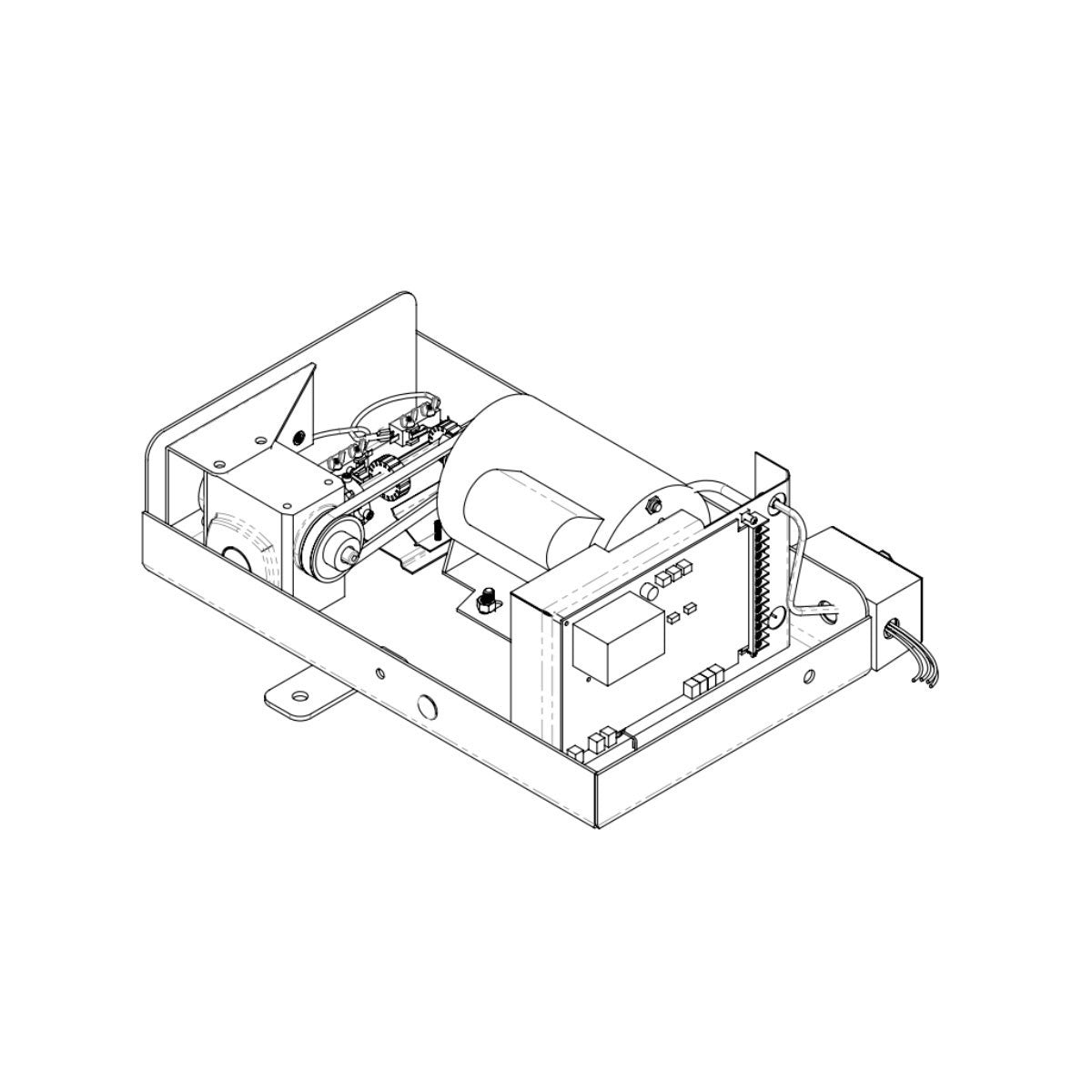

Drive Components
- Belt Size: 4L-200 (AX18)
- Main Sprocket Size: 41B15×5/8
- Chain Size: 41NP
- Gearbox Sprocket: 41B15×5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 ½" with ½" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Lockable quick release drive arm and carriage
- UL 325 2018 Compliant
- AOM-RED EYE included for enhanced entrapment protection
- On-board diagnostics and firmware update capability
Warranty: 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible with ALL-O-MATIC jamb track hardware packages available in various sizes to accommodate different gate dimensions and weights.
