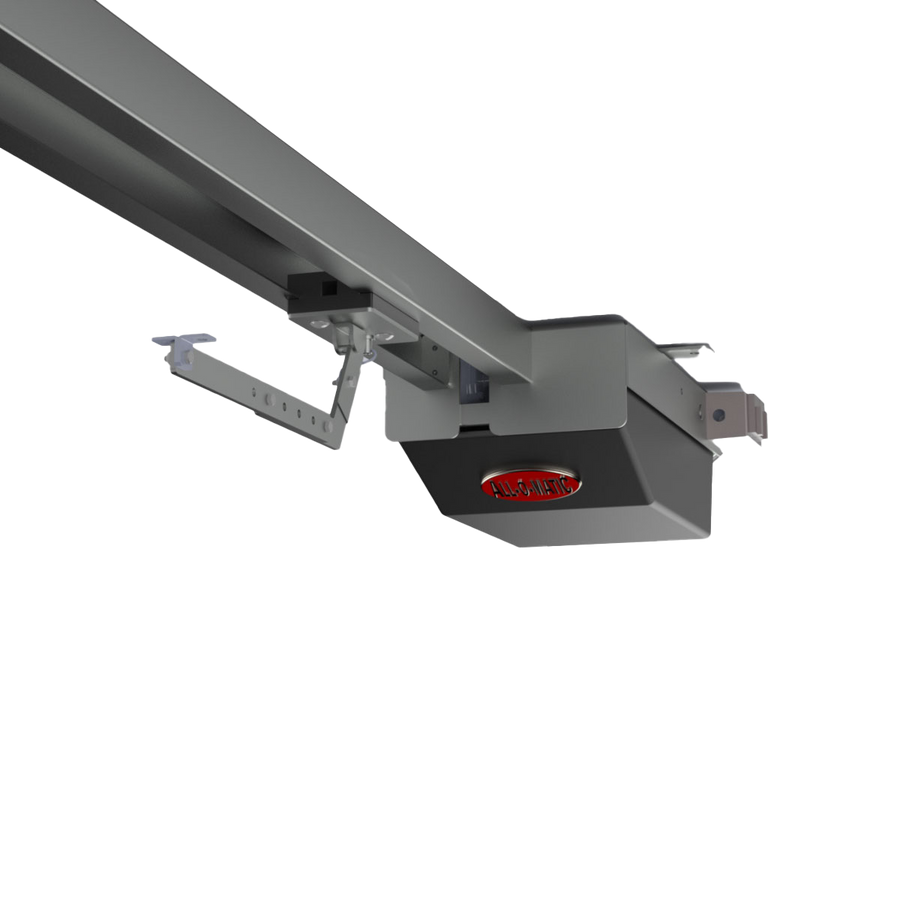

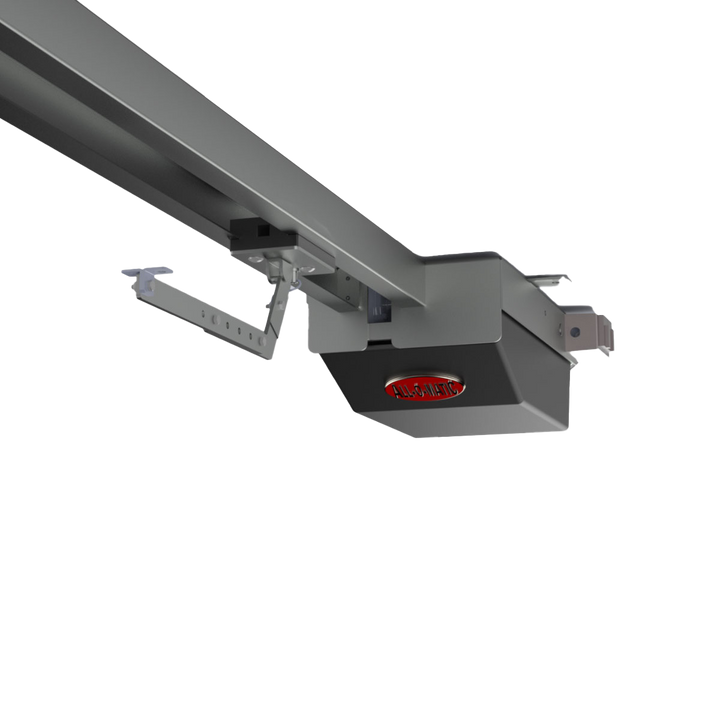

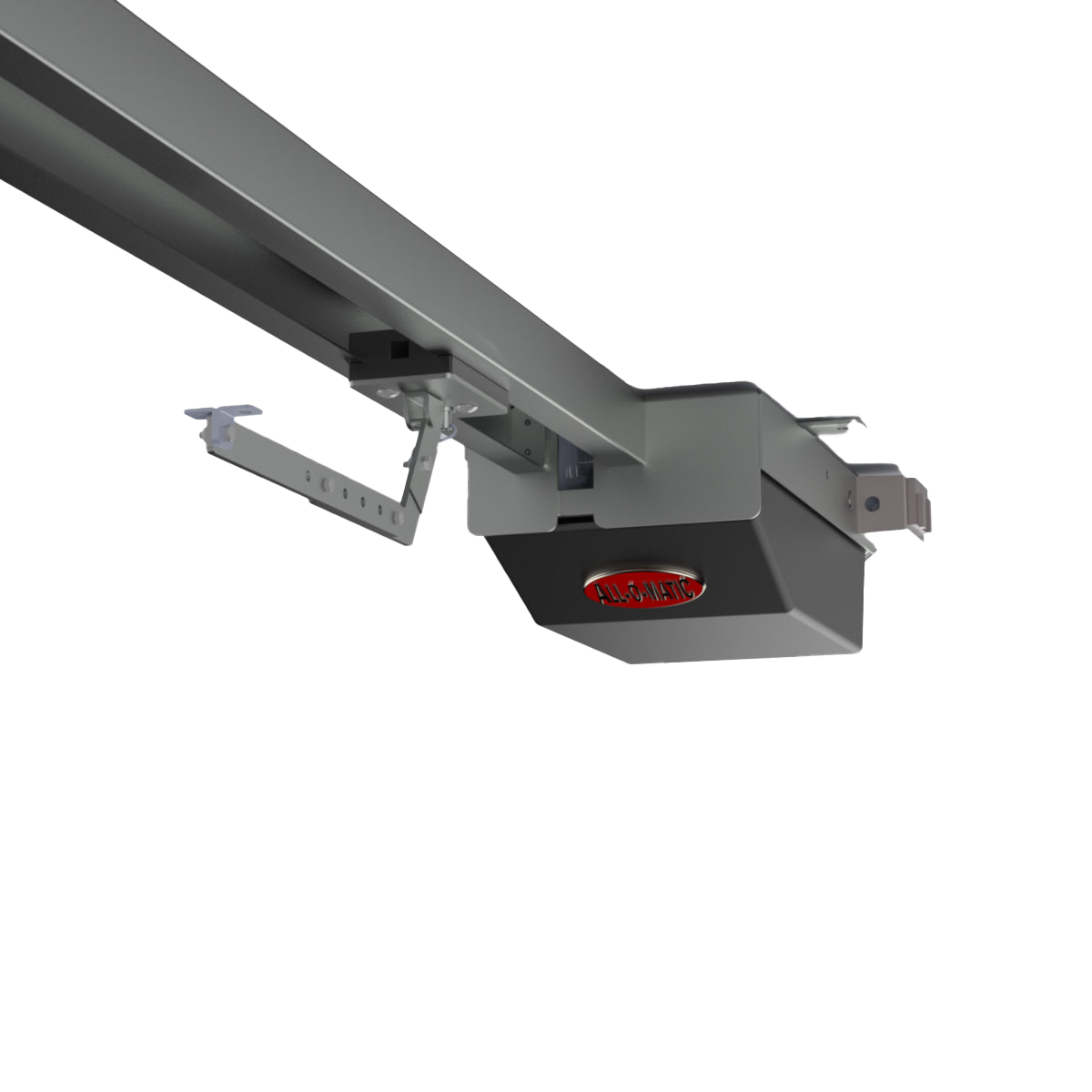

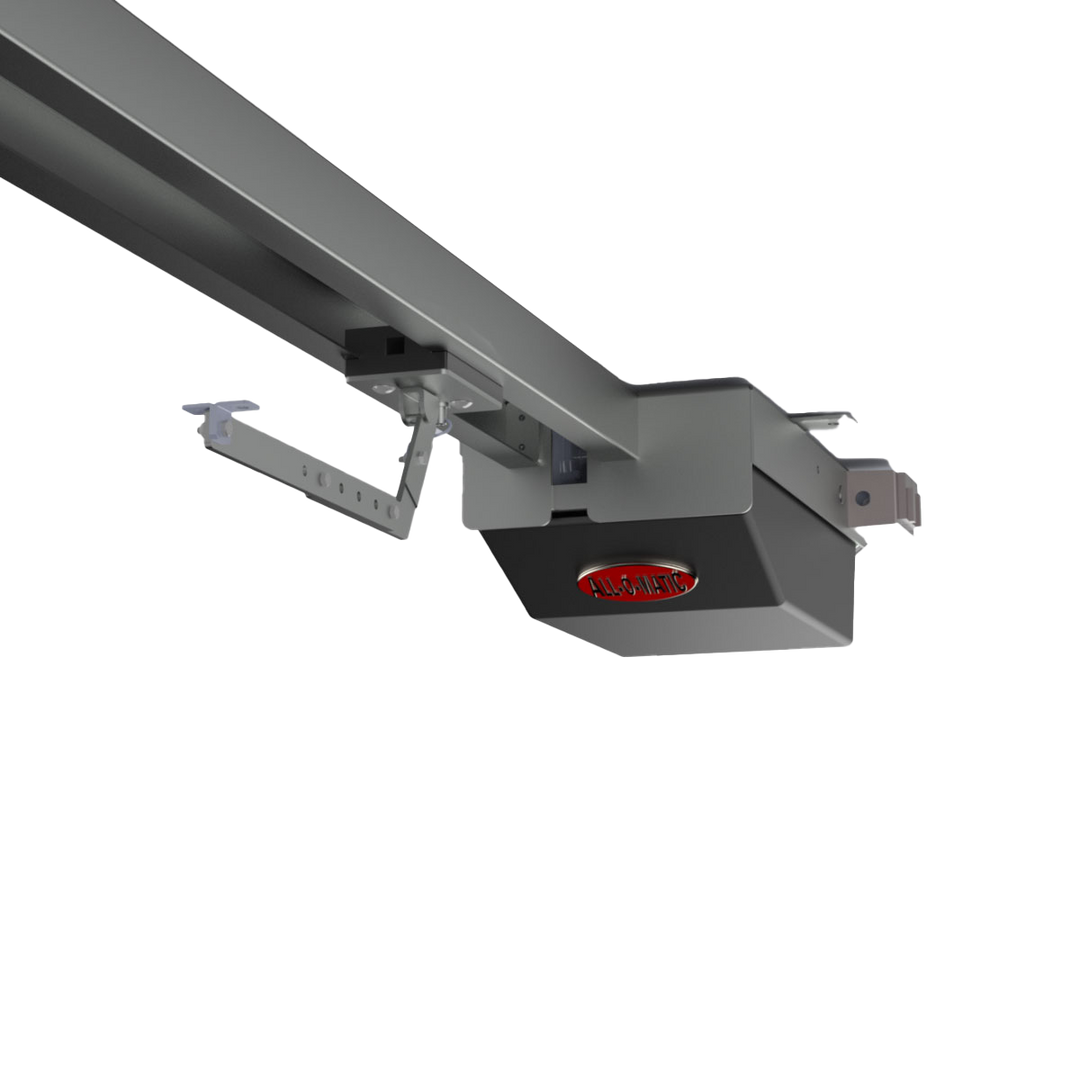

ALL-O-MATIC OH-200 AC Commercial Overhead Gate Operator
The ALL-O-MATIC OH-200 AC is a commercial-grade gate operator specifically designed for overhead tilt-up gates in demanding applications. This reliable operator is the preferred choice for underground parking facilities and apartment/condominium buildings, delivering quiet, dependable operation for gates up to 20 feet wide and 800 pounds in weight. Featuring a backwards-compatible control board, field-tested motor with over 20 years of proven performance, and included 10ft rails, the OH-200 AC provides property managers with a complete commercial automation solution they can trust.
Commercial-Grade Performance
- Powerful ½ HP motor handles gates up to 800 lbs. and 20 feet in length
- Consistent 20-second opening time for 6.5' to 8' gates
- Continuous duty cycle for high-traffic applications
- 30:1 gearbox ratio for smooth, reliable operation
- Proven reliability for multi-tenant properties and commercial installations
Specialized Overhead Design
- Purpose-built for overhead tilt-up (California) gates
- Slim, low-profile design with minimal ceiling clearance requirements
- Lockable quick release drive arm and carriage for manual operation
- Complete operator system with drive components
- Compatible with standard jamb track hardware packages
User-Friendly Controls
- Simple and dependable control board with backwards compatibility
- Straightforward limit adjustment system
- Field-proven reliability with minimal maintenance requirements
- Easy access to internal components for service
- Compatible with standard safety devices and access control systems
Specifications
Gate Capacity
- Maximum Gate Weight: 800 lbs.
- Maximum Gate Length: 20 feet
- Duty Cycle: Continuous
Power & Performance
- Motor: ½ HP motor
- Gate Speed: 20 seconds for full open (6.5' to 8' gate)
- Power Options: 120 VAC
- Battery Backup: Not applicable
- Operating Temperature Range: -40°F to 160°F
Construction & Dimensions
- Gearbox Ratio: 30:1
- Dimensions (W×L×H): 13" × 144" × 8" (includes 10ft rails)
- Shipping Weight: 100 lbs.
Drive Components
- Belt Size: 4L-200 (AX18)
- Main Sprocket Size: 41B15×5/8
- Chain Size: 41NP
- Gearbox Sprocket: 41B15×5/8
- Breaker Requirement: 20 amp dedicated
- Gearbox Pulley: 2 ½" with ½" bore
- Motor Pulley: 2" with 5/8" bore
Safety & Installation
- Emergency Release: Lockable quick release drive arm and carriage
- UL 325 2018 Compliant
Warranty: 5-year commercial warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, entrapment protection devices may be required and are sold separately. Compatible with ALL-O-MATIC jamb track hardware packages available in various sizes to accommodate different gate dimensions and weights.
