ALL-O-MATIC MACH-PRIME 24VDC Column Mount Swing Gate Operator
The ALL-O-MATIC MACH-PRIME automatic column mount swing gate operator delivers a perfect blend of simplicity, versatility, and convenience for residential gates up to 8 feet wide and weighing up to 500 lbs. This innovative operator provides smooth, virtually silent gate movement, allowing homeowners to enjoy the security and convenience of an automated gate without disruptive noise. With its compact design and solar compatibility, the MACH-PRIME is an elegant solution for enhancing residential property access control.
Elegant Design & Installation

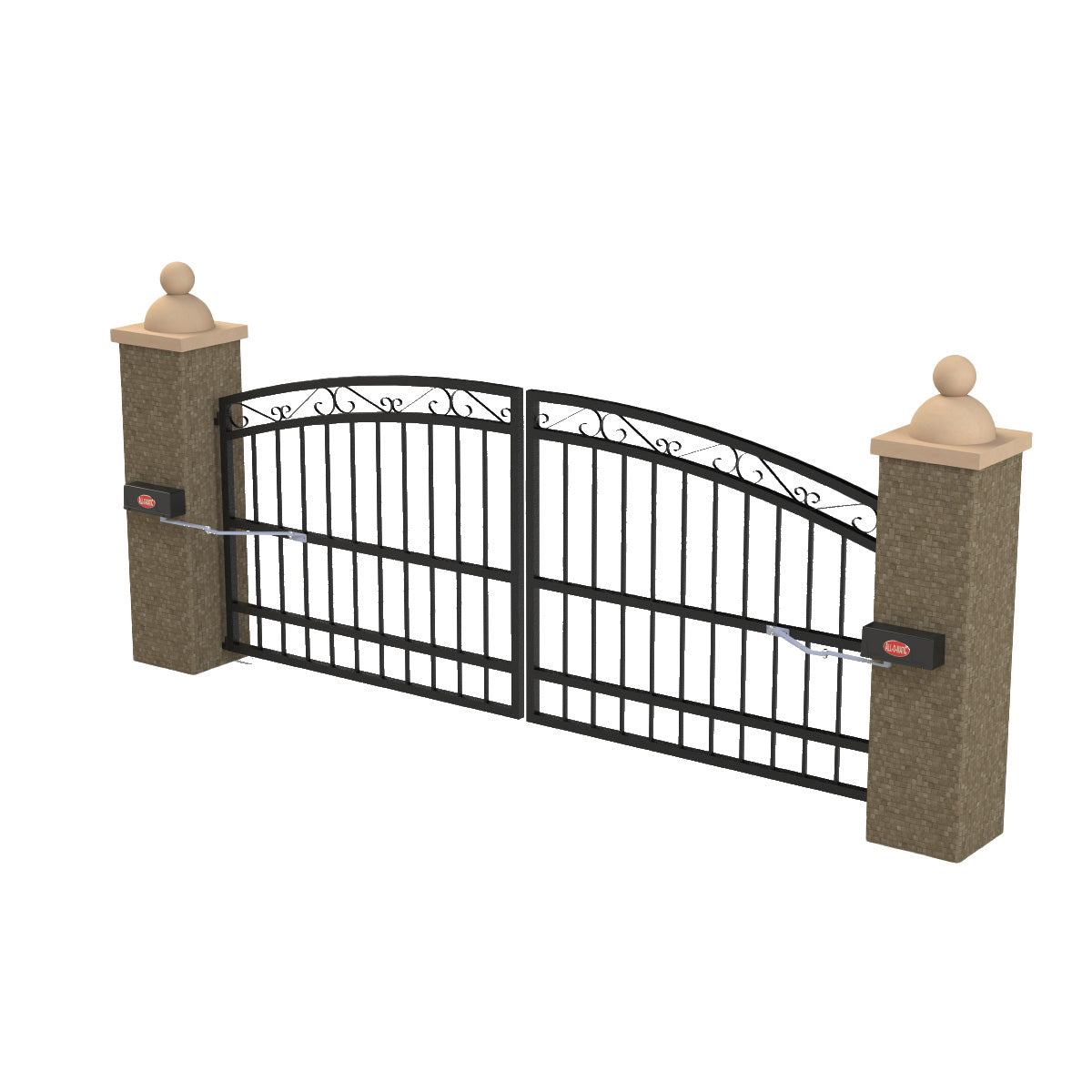

- Compact column mount design offers clean, unobtrusive appearance

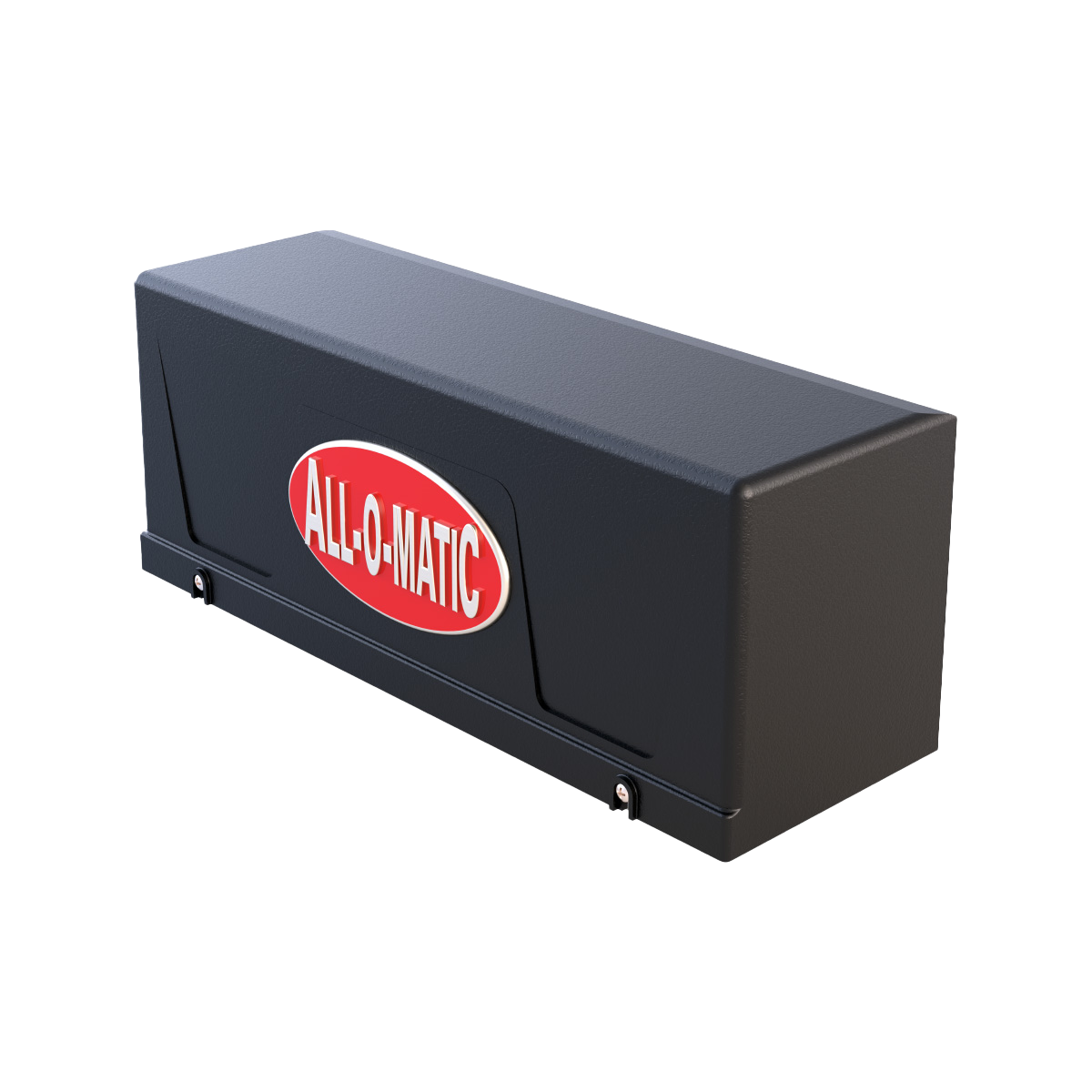

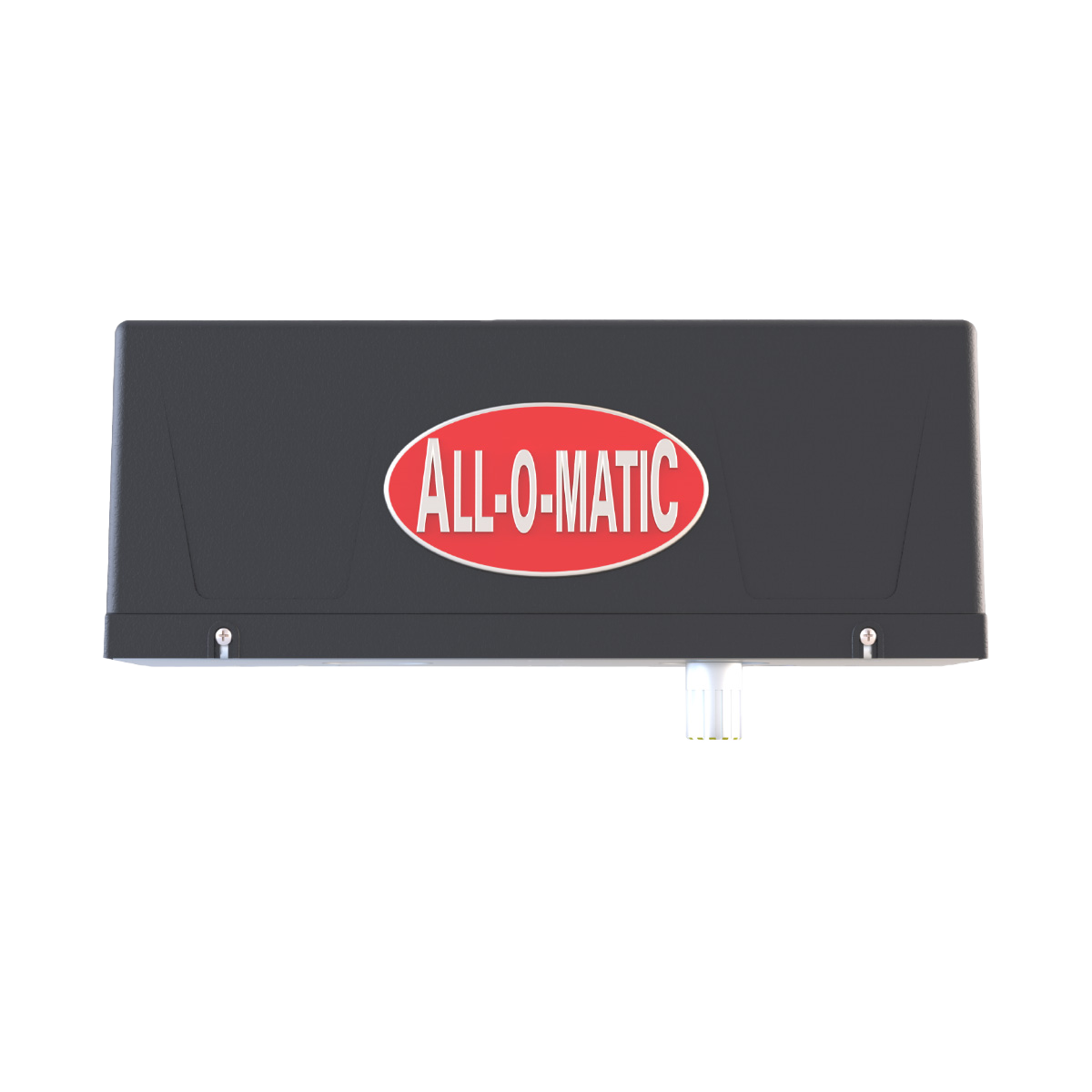

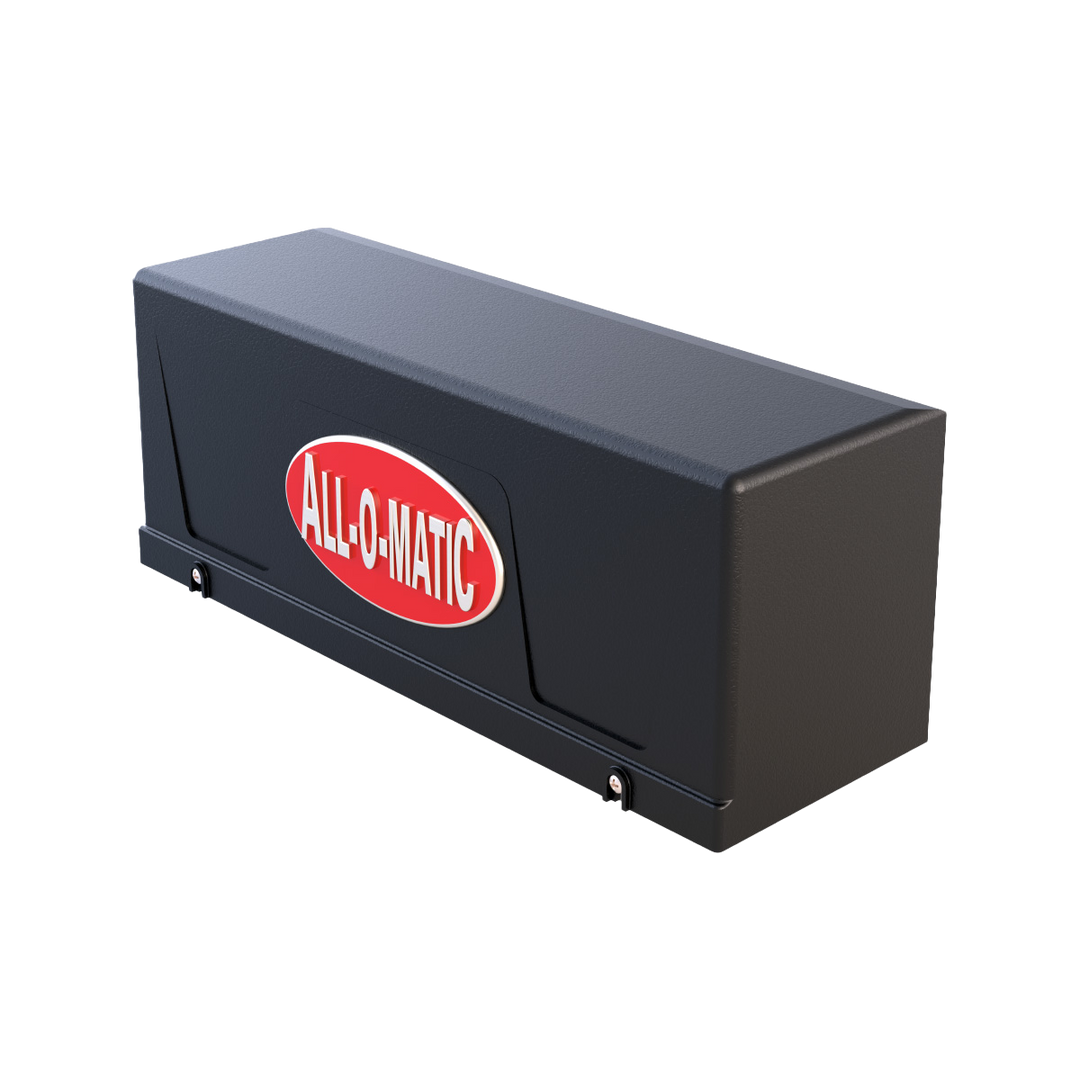

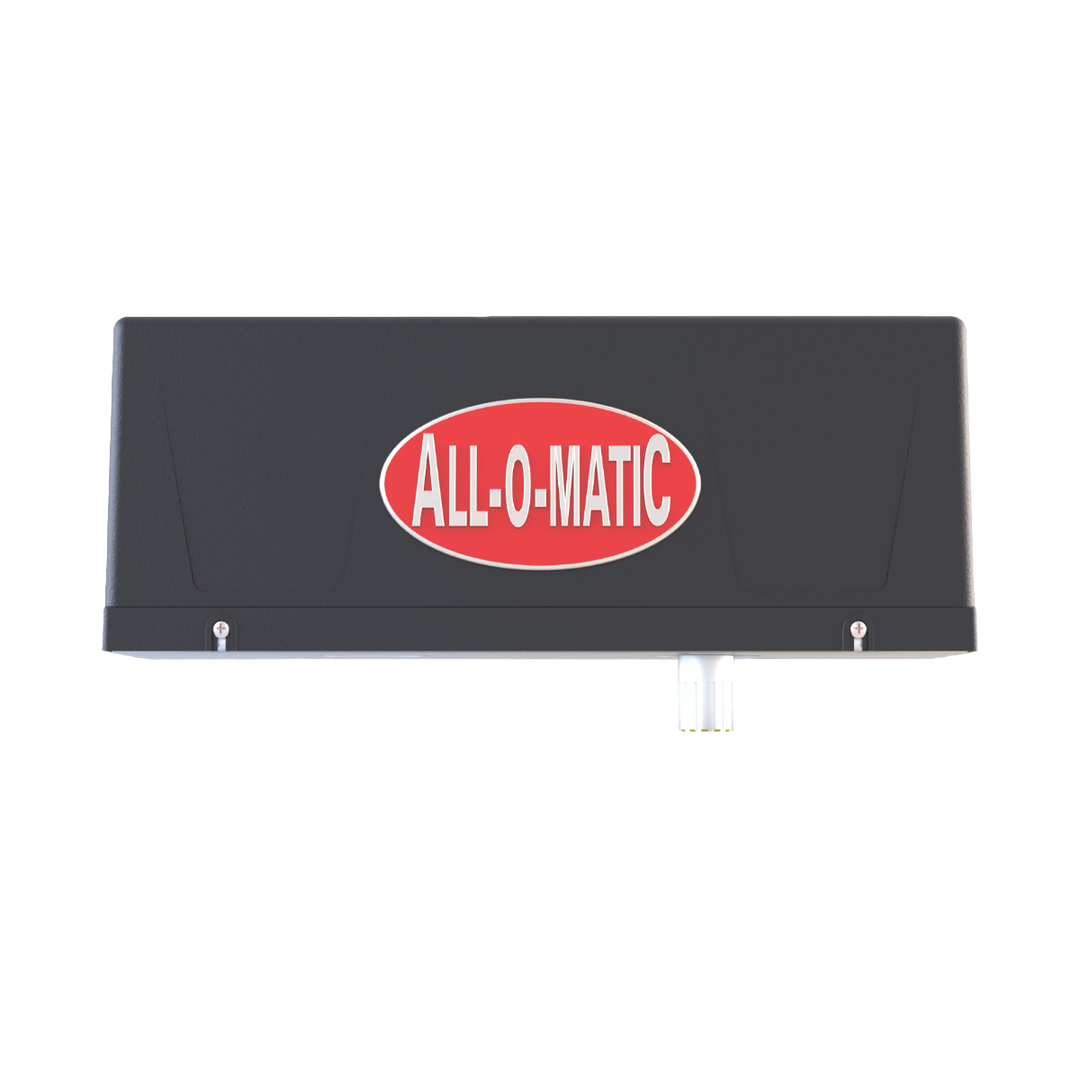

- Sleek dimensions: Operator D 5" × L 15" × H 5.75"
- Control box dimensions: H 16.750" × L 19.6875" × D 7.875"
- No-dig installation preserves landscaping and hardscaping
- Right or left-hand opening capability for installation flexibility
Intelligent Control System
- Advanced control board with programmable logic
- Pre-wired loop detector rack for simplified safety device installation
- One control board for single or dual gate operation
- Digital adjustments for precision operation tuning
- Enhanced charge controller optimized for solar applications
Convenient Operation
- Smooth, virtually silent gate movement
- Manual release key for emergency operation
- Integrated battery backup for uninterrupted access
- Adjustable opening speed (14-25 seconds per 90° operation)

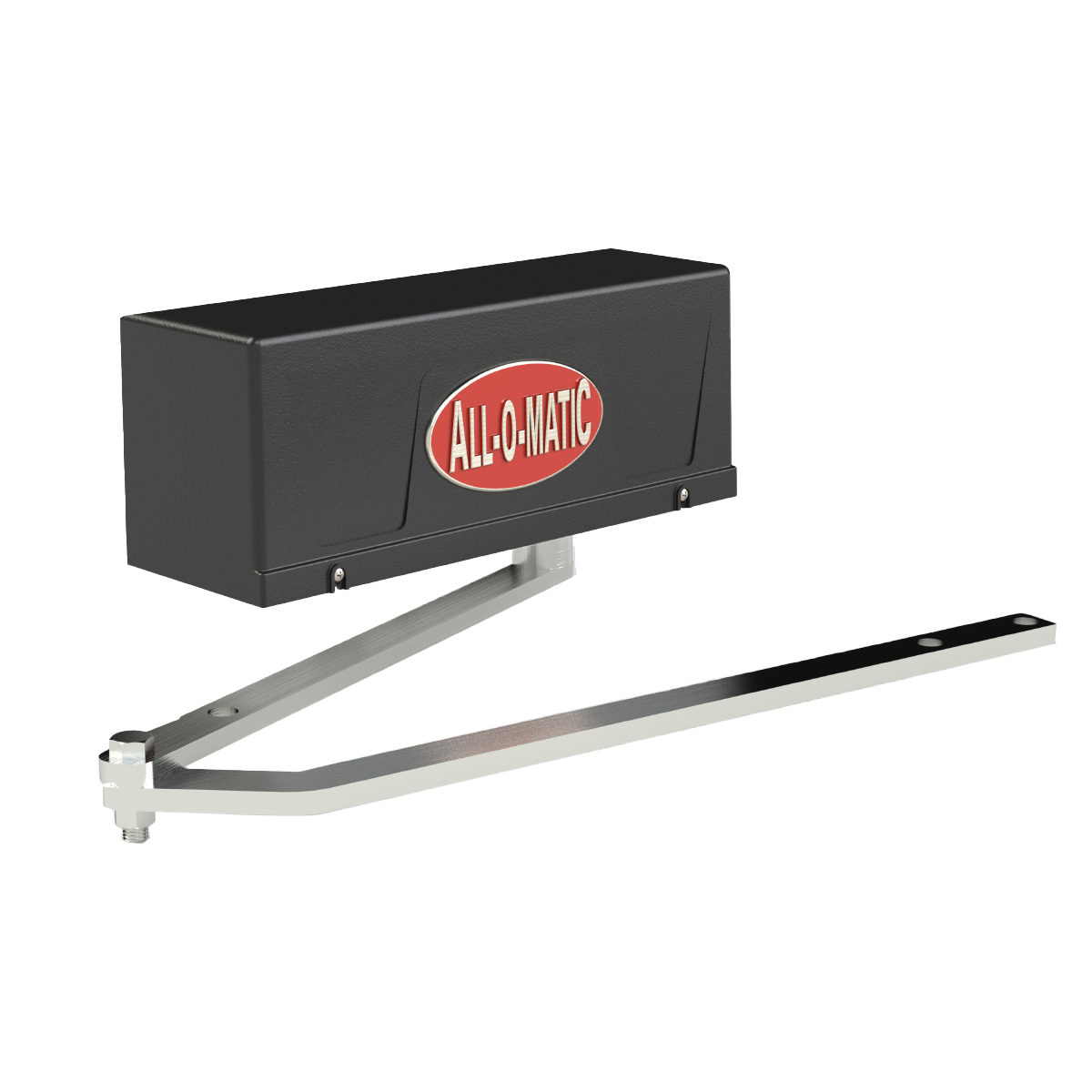

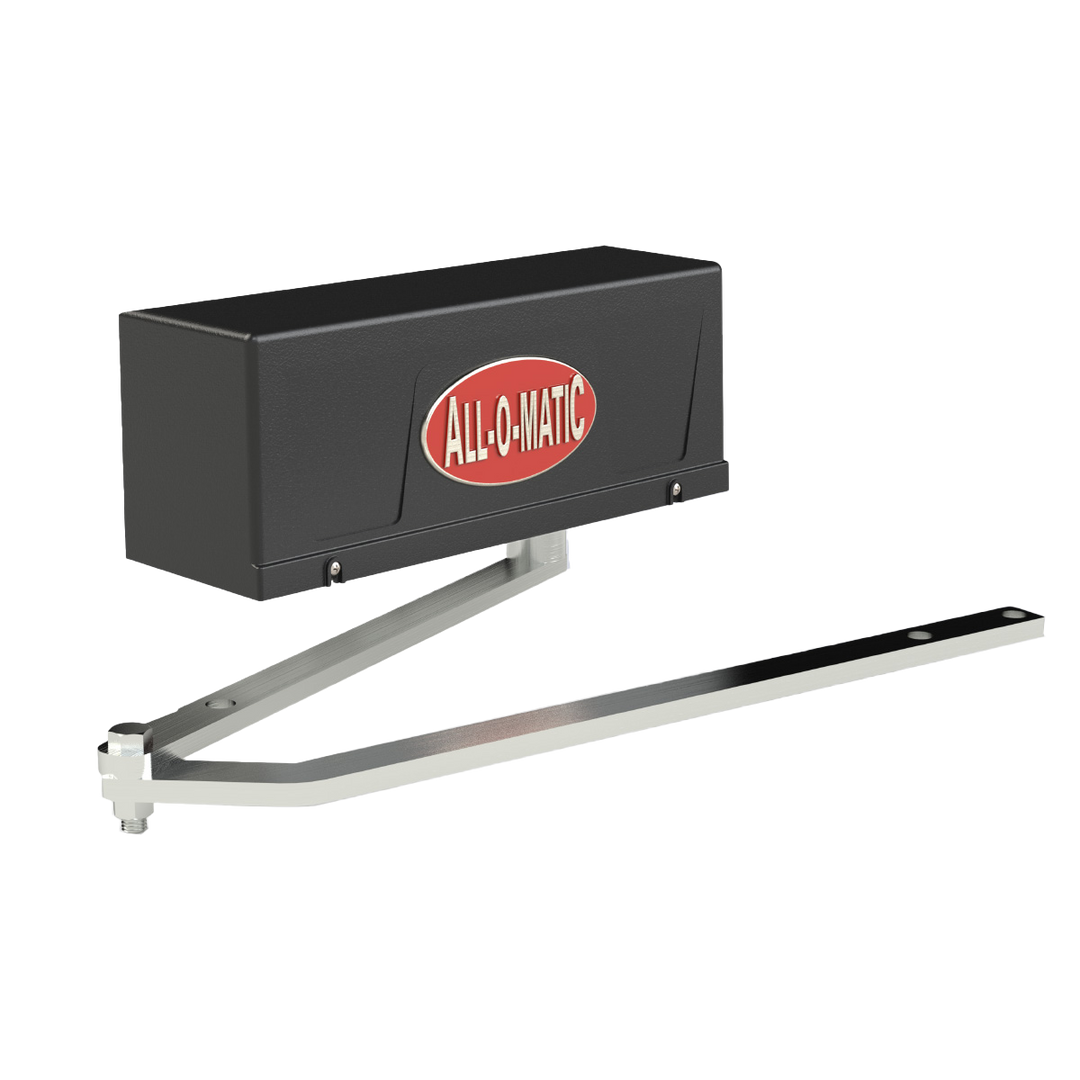

- Quick arm release for simplified maintenance
Versatile Power Options
- Standard 115/230 VAC single-phase input power
- 24 VDC solar panel compatibility (up to 80 watts)
- Integrated battery backup with (2) 7Ah 12VDC batteries
- Up to 250 backup cycles during power outages
- Ideal for most residential applications, including those with limited AC access
Specifications
Gate Capacity
- Maximum Gate Weight: 500 lbs.
- Maximum Gate Length: 8 feet
- Duty Cycle: 30 minutes (intermittent)
Power & Performance
- Motor: 24 VDC gearhead motor
- Gate Speed: Adjustable 14-25 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Battery Backup: Integrated, with (2) 7Ah 12VDC batteries
- Battery Backup Capacity: Up to 250 cycles
- Operating Temperature Range: -20°F to 160°F
Dimensions & Installation
- Operator Dimensions: D 5" × L 15" × H 5.75"
- Control Box Dimensions: H 16.750" × L 19.6875" × D 7.875"
- Operator Shipping Weight: 36 lbs. (includes arm)
- Control Box Shipping Weight: 42 lbs.
- Emergency Release: Manual release key
- Breaker Requirement: 20 amp dedicated
Safety & Compliance
- UL 325 2018 Compliant
- Built-in safety features and entrapment protection
Warranty: 3-year residential warranty included. Registration required within 30 days of purchase to activate full warranty coverage.
Note: For optimal performance and complete safety compliance, additional entrapment protection devices may be required and are sold separately. Compatible accessories include fire boxes, PRIME VD-1 loop detector, solar panels, and magnetic locks.
