ALL-O-MATIC Jamb Track Hardware for Overhead Tilt-Up Gates
ALL-O-MATIC is the premier manufacturer of jamb track hardware designed specifically for commercial overhead gates, also known as tilt-up or California gates. With five different hardware packages available, ALL-O-MATIC provides the right solution based on your gate's height, width, and weight requirements. Each hardware set is engineered for smooth operation, long-term reliability, and professional installation.
Professional-Grade Construction
- Heavy-duty components manufactured for commercial applications
- Precision-engineered parts ensure smooth gate operation
- Durable materials withstand continuous use in demanding environments
- Complete hardware packages include all required components
- Compatible with ALL-O-MATIC OH-200 AC and OH-200 DC PRO gate operators
Installation Flexibility
- Five hardware packages accommodate various gate dimensions and weights
- Available with different spring sizes (3", 4", and 5") based on gate requirements
- Left and right-hand configurations for any installation scenario
- Complete mounting hardware included with each package
- Comprehensive installation components for professional results
Available Models
-
SS-3: 3" Short Standard Set
- Maximum Gate Weight: 350 lbs.
- Maximum Gate Width: 19 feet
- Gate Height Range: 6'6" - 7'
- Spring Size: 3" diameter
- Ideal for smaller residential and light commercial applications
-
SL-3: 3" Regular Set
- Maximum Gate Weight: 350 lbs.
- Maximum Gate Width: 19 feet
- Gate Height Range: 7' - 7'6"
- Spring Size: 3" diameter
- Standard solution for medium-height residential and commercial gates
-
SJ-4: 4" Jumbo Set
- Maximum Gate Weight: 450 lbs.
- Maximum Gate Width: 22 feet
- Gate Height Range: 7' - 8'
- Spring Size: 4" diameter
- Enhanced capacity for wider commercial applications
-
HJ-5: 5" Heavy Jumbo Set
- Maximum Gate Weight: 550 lbs.
- Maximum Gate Width: 22 feet
- Gate Height Range: 7' - 8'
- Spring Size: 5" diameter
- Heavy-duty solution for substantial commercial gates
-
HJL-5: 5" Heavy Jumbo Long Set
- Maximum Gate Weight: 650 lbs.
- Maximum Gate Width: 22 feet
- Gate Height Range: 8' - 10'6"
- Spring Size: 5" diameter
- Maximum capacity for tall, heavy commercial applications
Specifications

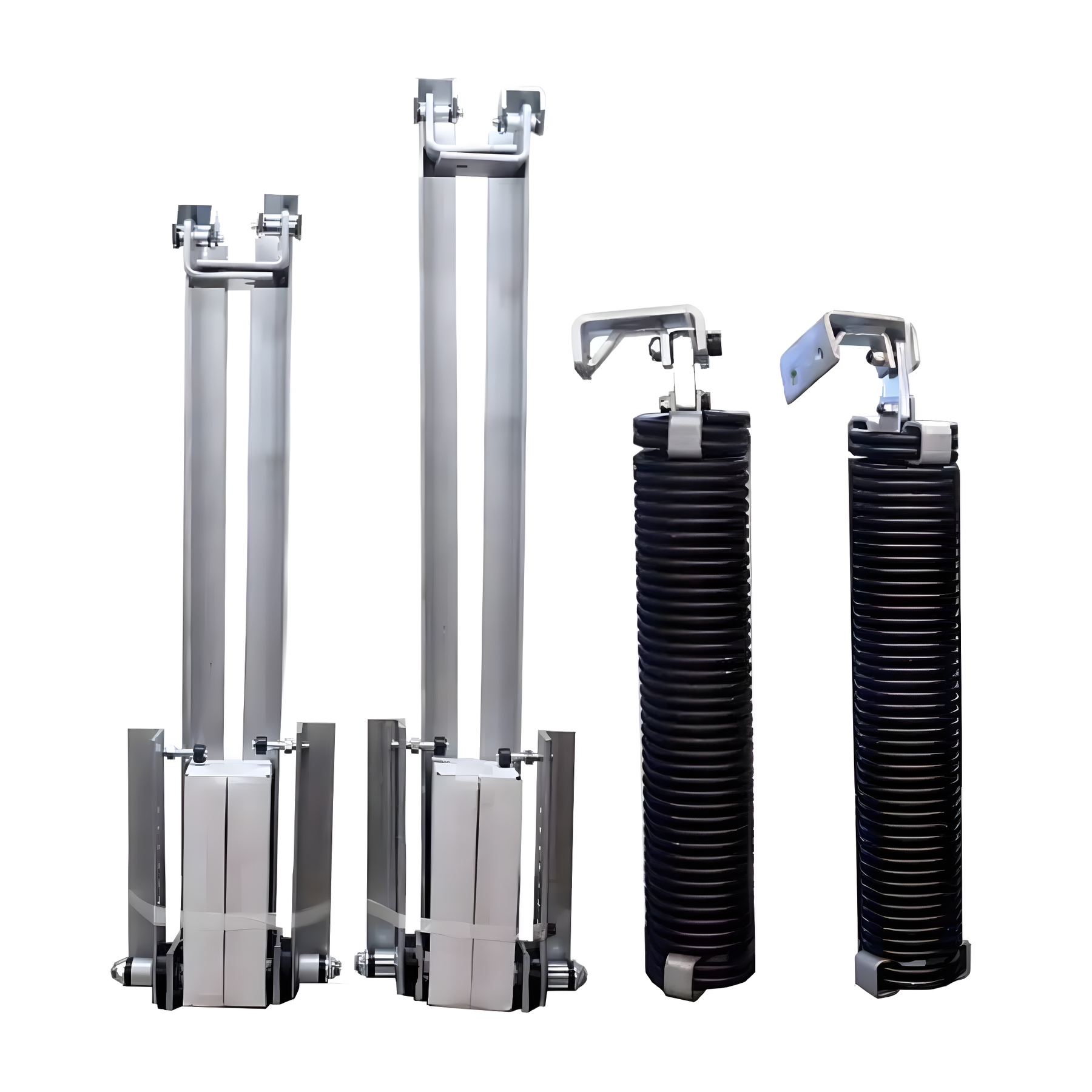

Components Included

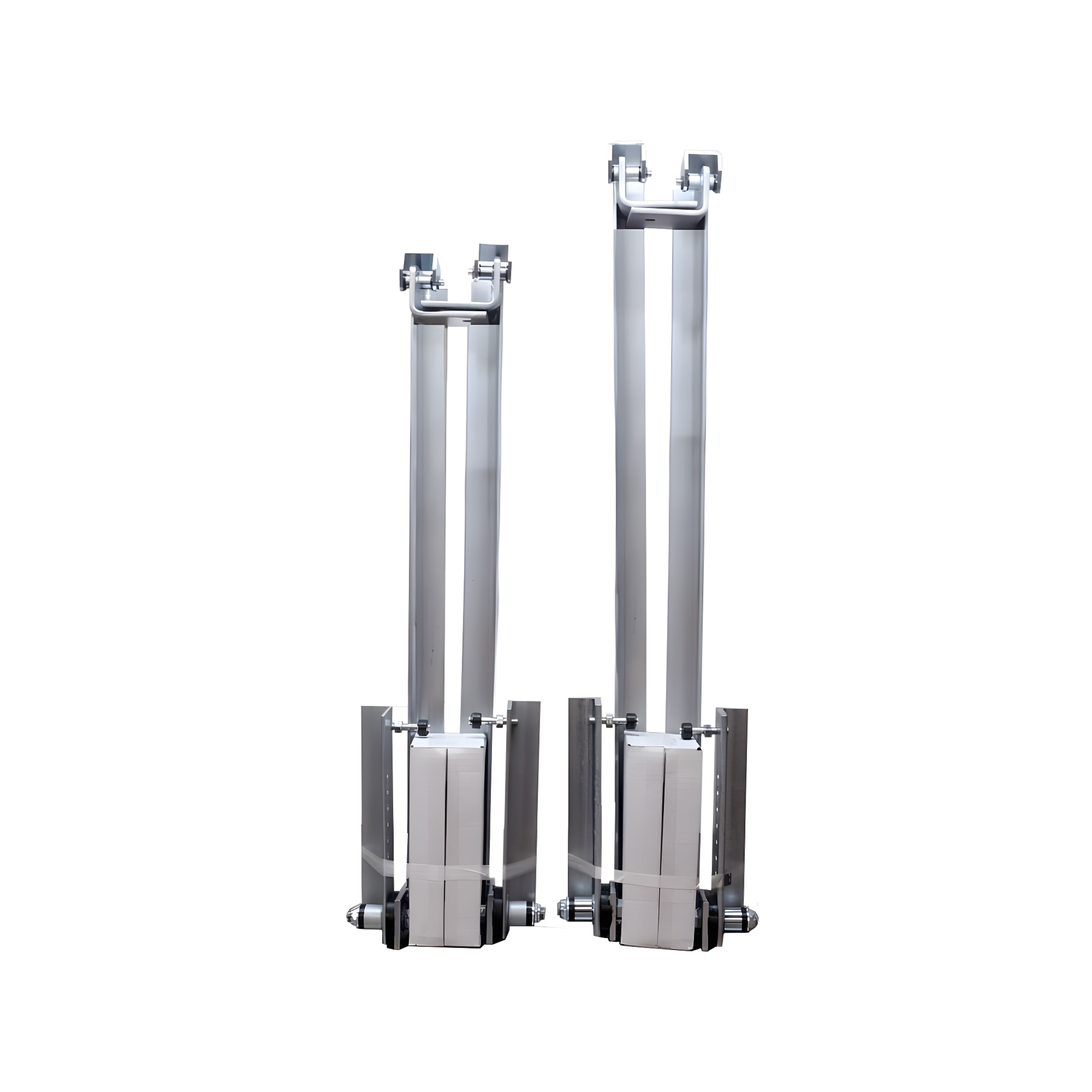

- Power Arms (Right and Left)
- Main Pivot Brackets (Right and Left)
- Lower Pivot Bracket and Components
- Kicker Roller Assembly
- Track Roller Assembly
- Main Spring Bracket
- Spring End Components

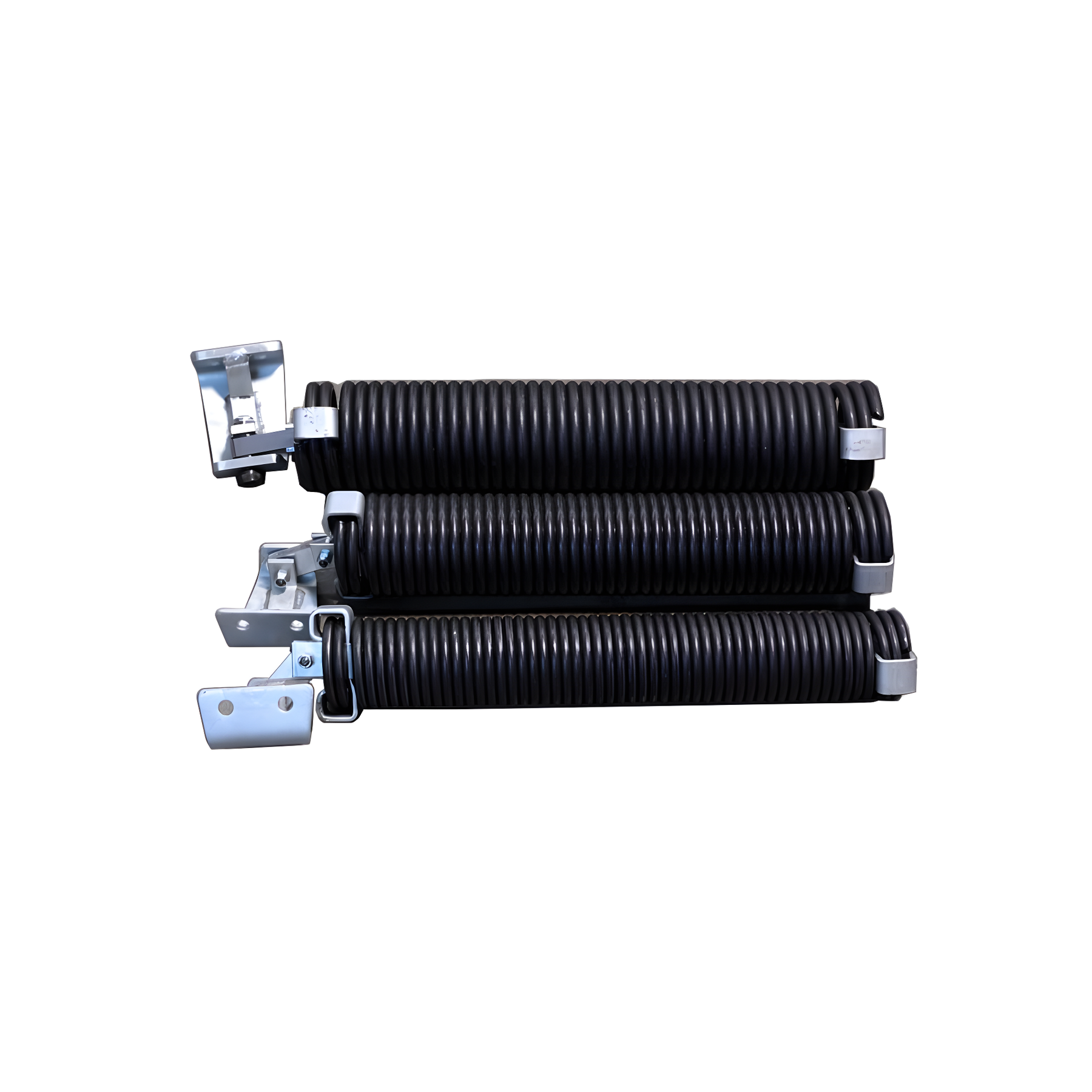

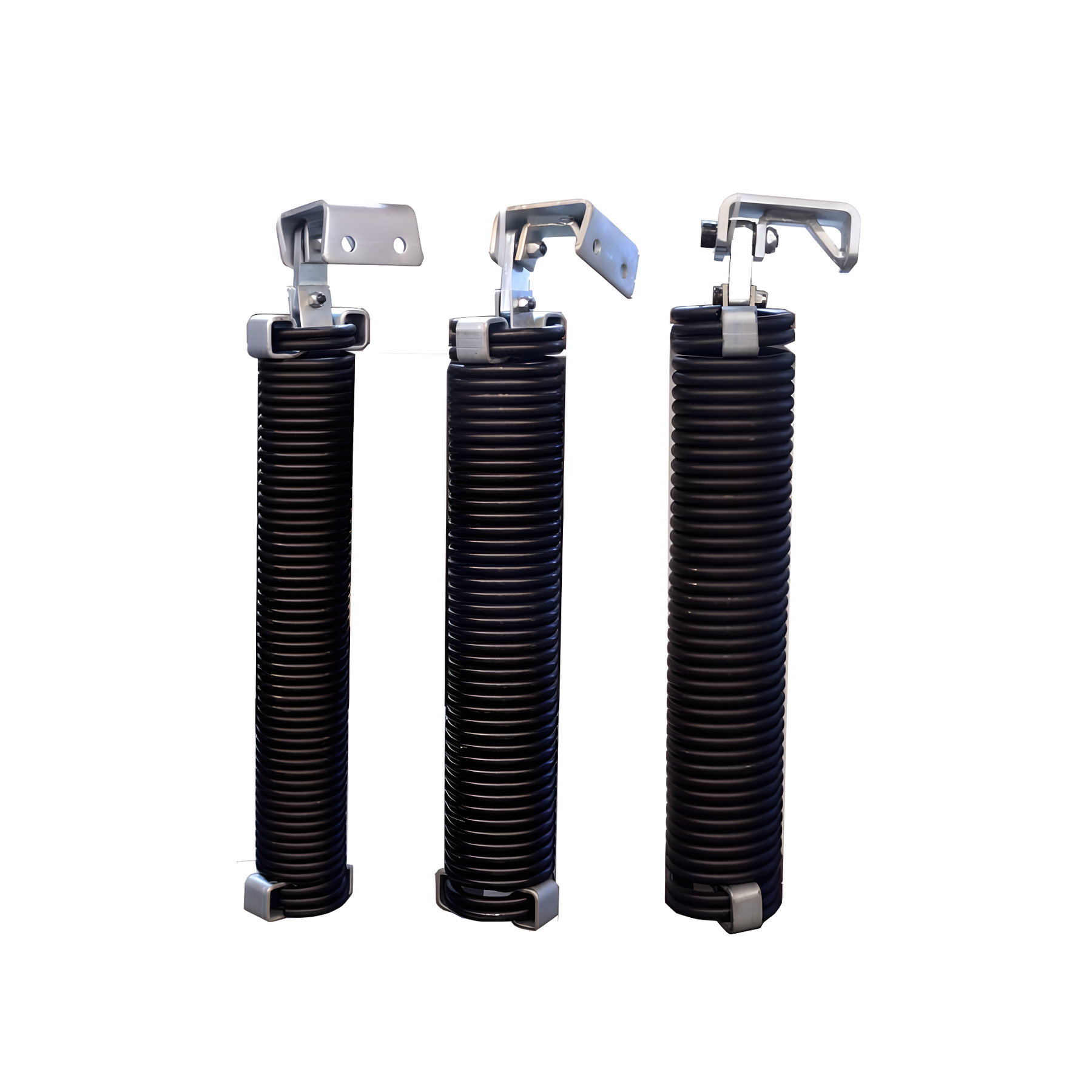

- Springs (size varies by model)
- Tracks (8' sections)

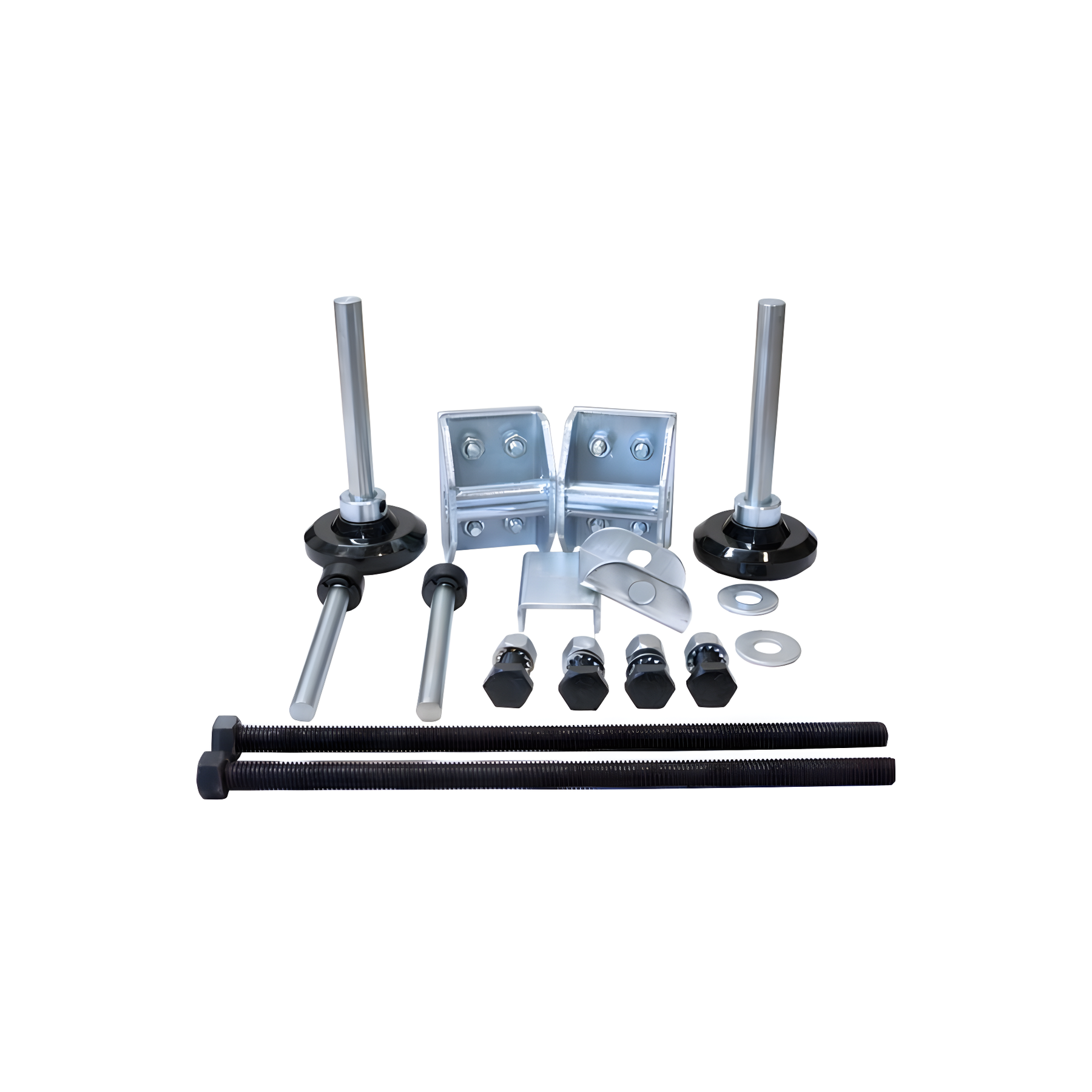

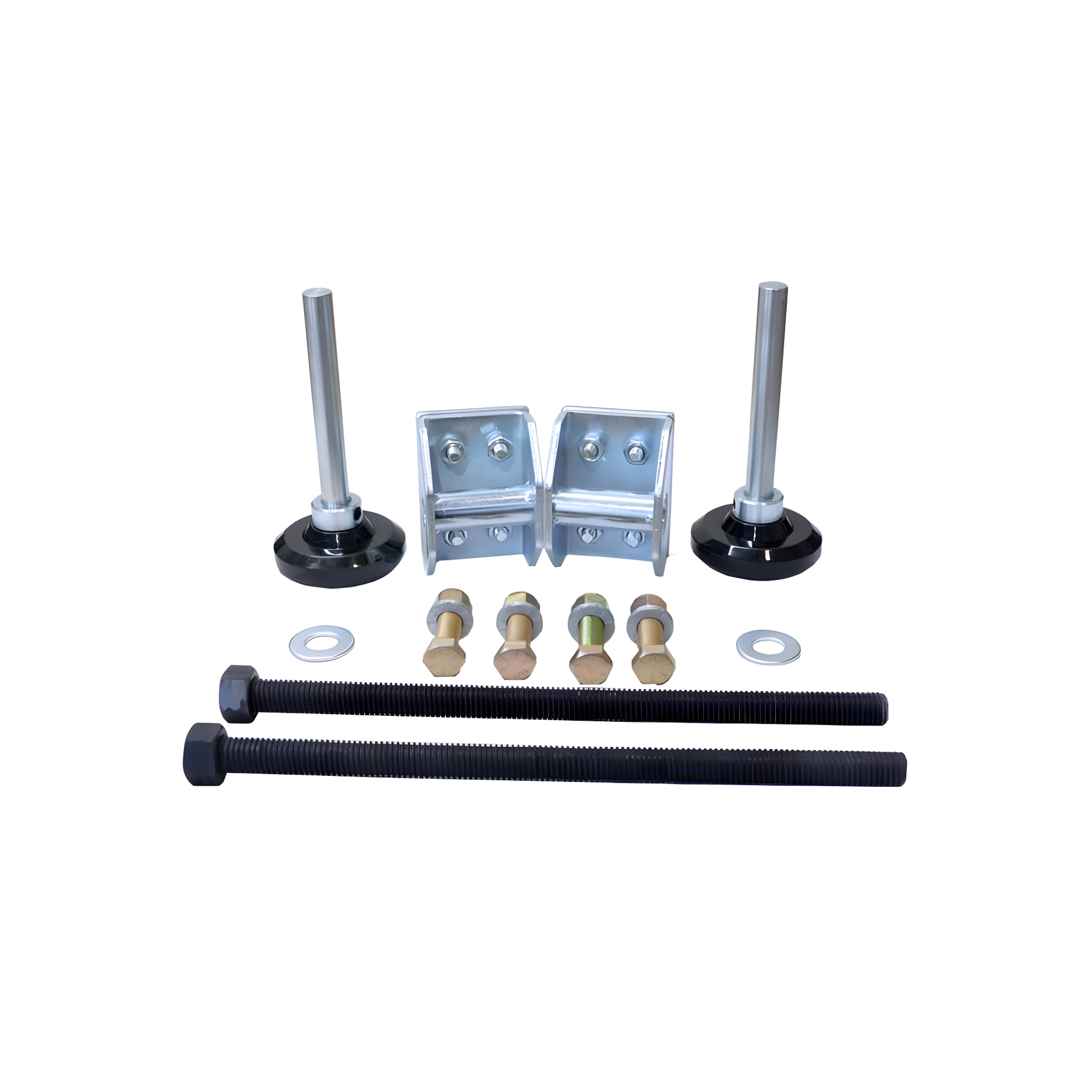

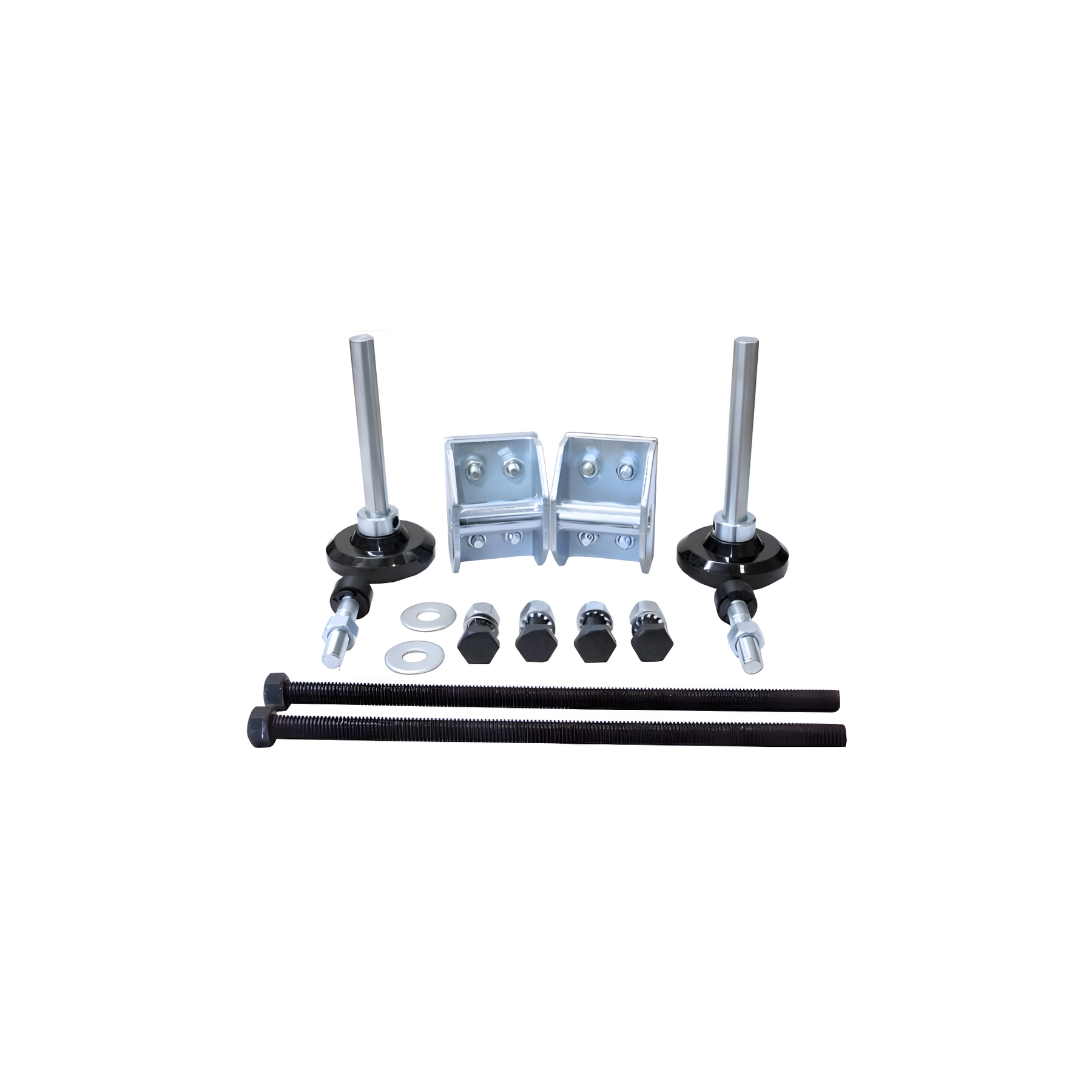

- All Required Hardware and Fasteners
Construction
- Heavy-duty steel components for strength and durability
- Precision-machined parts for smooth operation
- Sealed bearings require minimal maintenance
- Zinc-plated hardware for corrosion resistance
Installation Notes
- Professional installation by trained technicians recommended
- Left and right-hand reference is from outside looking in
- Proper training and experience required for safe installation
- Complete installation instructions provided
Warranty: Two-year limited warranty against defects in materials and workmanship. Any part or parts of hardware found to be defective within this period shall, at the manufacturer's option, be repaired or replaced free of charges, F.O.B. the factory.
Note: All jamb track hardware must be installed and maintained by technicians who are experienced and well-trained. If not experienced with this type of hardware, installation by a professional with more than five years of experience is strongly recommended. Training and installation is at your own risk.
