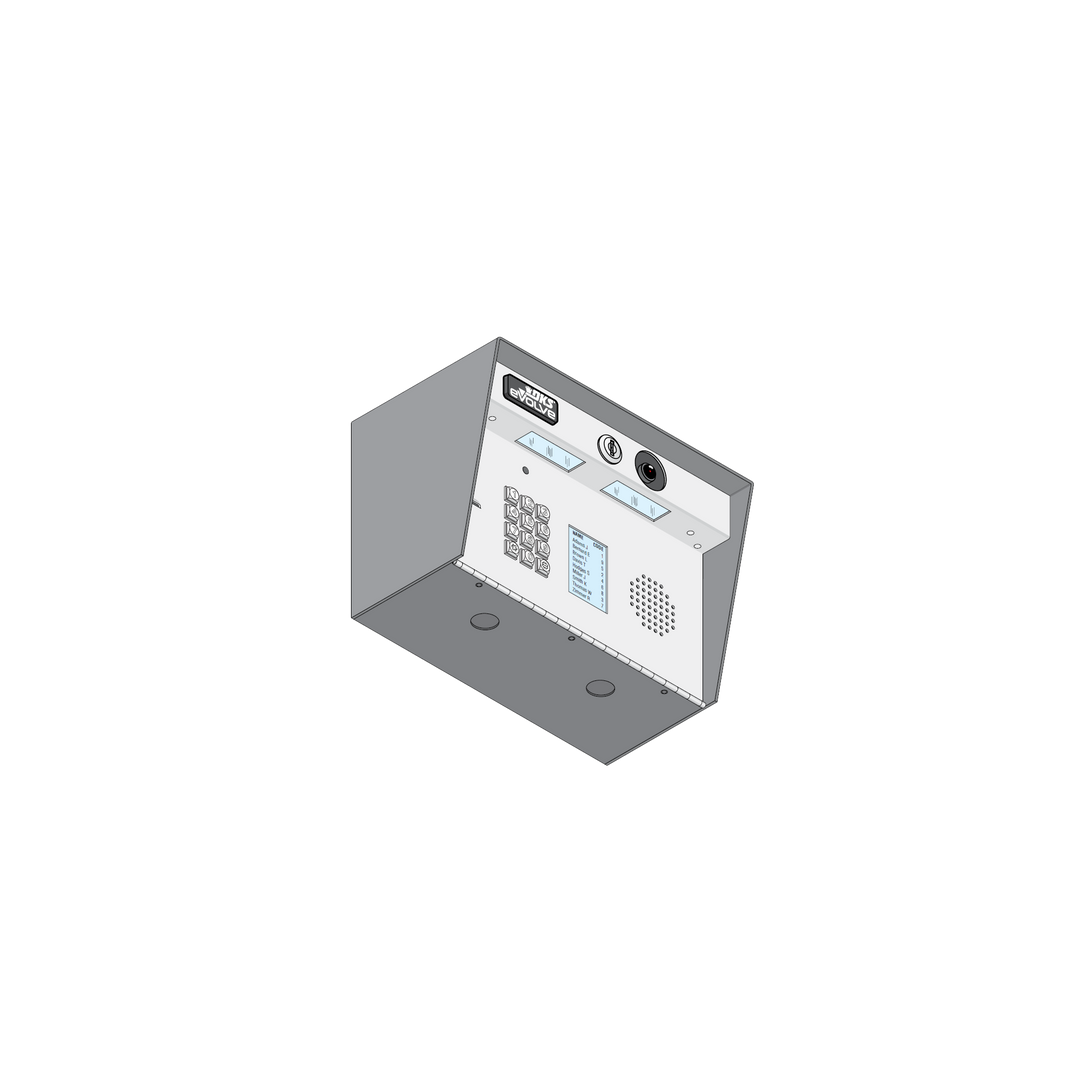

DoorKing 2108 eVolve Video Entry System

DoorKing 2108 eVolve Video Entry System with Integrated Directory

The DoorKing 2108 eVolve delivers advanced video entry technology with the convenience of a built-in paper directory for up to 12 names. This cloud-based residential access control system enables homeowners to see, speak with, and grant access to visitors from anywhere using their smartphone or any telephone. Featuring broadcast calling to up to four phones simultaneously and the ability to control three entry points, the 2108 eVolve combines traditional directory functionality with cutting-edge video communication technology.

Advanced Video & Voice Communication

• Built-in IP camera for live video streaming via DKS 2108 Video Calling app
• Crystal-clear voice communication with guests from any phone or smartphone
• Broadcast calling rings up to four designated phones simultaneously
• Grant or deny visitor access remotely with the touch of a button
• Video monitoring allows real-time viewing of gate area from smartphone

Integrated Directory System

• Built-in paper directory accommodates up to 12 resident names
• Traditional directory format familiar to visitors
• Easily updated and maintained directory listings
• Combines modern technology with conventional access methods
• Perfect for small residential communities and apartment complexes

Cloud-Based Management

• Browser-based control dashboard accessible from any internet-connected device
• Program and manage system settings from laptops, tablets, or smartphones
• Real-time cloud synchronization ensures immediate updates across all devices
• DKS eVolve Cloud platform handles all system programming and management
• Control system remotely from anywhere with internet connectivity

Flexible Connectivity Options

• Standard internet/ethernet connection for full system functionality
• Optional cellular connectivity (AT&T or T-Mobile) when internet unavailable
• Easy plug-and-play setup with existing internet services
• 12VDC backup power input for uninterrupted operation during outages
• Robust connectivity ensures reliable communication in all conditions

Comprehensive Access Control

• Control up to three separate entry points (gates, doors, pedestrian access)
• Store up to 40 phone numbers across 10 resident profiles
• Program up to 25 entry codes with 4 or 5-digit options
• Customizable schedules for Do Not Call, Hold Open, and Entry Code functions
• Independent relay strike times and custom entry point naming

Model Information

• 2108 eVolve Surface Mount with Directory (SKU: 2108-090):
  • Dimensions: 7.5"H x 11"W x 6.5"D (190.5mm x 279.4mm x 165.1mm)
  • Surface mount design for easy installation
  • Integrated paper directory for up to 12 names
  • Shipping weight: Approximately 15 lb (7 kg)

Specifications

System Capacity

• Access Points: Up to 3 controllable entry points
• Phone Numbers: Store up to 40 numbers (10 residents, 4 numbers each)
• Entry Codes: Up to 25 programmable codes (4 or 5 digits)
• Directory: Built-in paper directory for 12 names
• Simultaneous Calling: Broadcast to 4 phones at once

Electrical & Power

• Primary Power: 16 VAC (20 VA transformer included)
• Backup Power: 12 VDC backup power input
• Relay Output: Three (3) Form C relays, 1A maximum
• Operating Temperature: 10°F to 145°F (-12°C to 62°C)

Construction & Design

• Faceplate: Stainless steel with weather-resistant finish
• Sub-plate: Galvanized steel for enhanced durability
• Keypad: Back-lighted metal with clear visibility
• Call Button: Back-lighted metal push-to-call design
• Weight: Approximately 15 lb (7 kg) shipping weight

Connectivity Features

• Network Connection: User-provided internet connection required
• Cellular Option: Optional cellular kit available (additional fees apply)
• Cloud Service: Standard residential package registration required
• Certifications: FCC (US) DUF6VT-12874-OT-T, DOC (CAN) 1736 4528 A

Programming & Management

• DKS Programmer Browser Login for complete administrative control
• DKS 2108 Resident App for video calling and entry management
• Browser-based programming from any internet-connected device
• Real-time relay status monitoring and control
• Microphone and speaker volume control
• Customizable relay names and independent strike times

Advanced Features

• Do Not Call schedule programming
• Hold Open schedule for each relay
• Entry code scheduling with time-based access
• Relay status monitoring (Closed – Open – Held Open)
• Independent door and gate control functions

Application Suitability

• Single family residential properties
• Small multi-family residential complexes
• Apartment complexes and college residence halls
• Properties requiring traditional directory functionality
• Locations where visitor familiarity with directory systems is important

Safety & Compliance

• FCC Certification: DUF6VT-12874-OT-T
• DOC Canada Certification: 1736 4528 A
• Environmental Rating: Outdoor installation capable
• Operating Range: -12°C to 62°C (10°F to 145°F)
• Cloud-based system with standard monthly service fee

Note: The 2108 eVolve requires a monthly cloud service subscription for full functionality. Internet connection is standard, with cellular connectivity available as an option. The DKS 2108 Video Calling app is required for video calling features. Professional installation recommended for optimal performance and integration.
