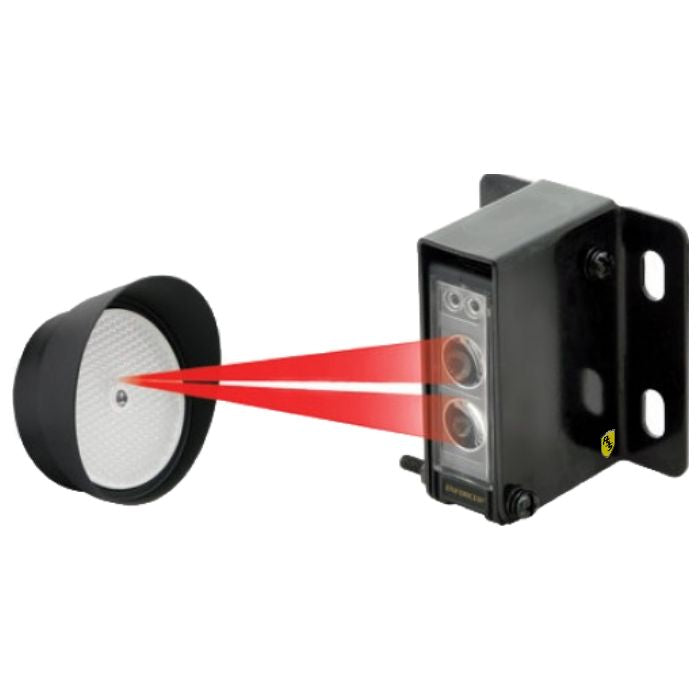

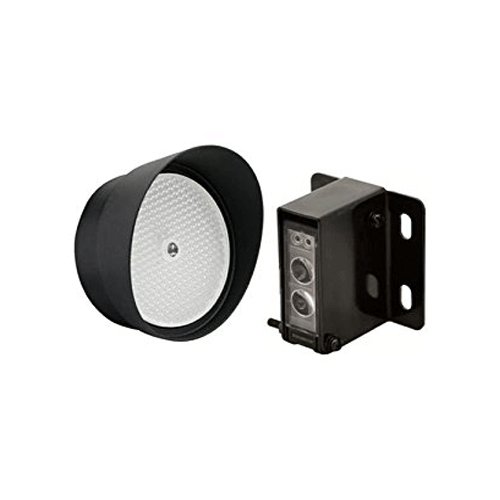

Enforcer E-936-S45RRGQ Monitored Photo Beam with Reflector

PSS is always concerned with your safety. Use this RRGQ model to protect your property and those who come to visit. The Retro-Reflective Photoelectric Beam Sensor E-936-S45RRGQ has a range of 45ft. (14m) and uses 12~250 VAC/VDC power not to mention it is made of weatherproof (IP 66) construction for indoor/outdoor usage. Included is 3-inch round reflector and hood.

Pre-wired 6ft (2m) Cord. Bracket and mounting hardware included. Includes two sensor mounting brackets. Adjustable sensing distance and response time - 5~100ms. Typical Applications Sensor for garage doors, outdoor gates or overhead doors. Sensor for industrial automation to detect objects on manufacturing line. Entry detection for store fronts. Assist in measuring parking distance.

Features

• Range: 45ft (14m)
• Weatherproof (IP66) construction for indoor/outdoor use
• Pre-wired 6ft (1.8m) cord
• Bracket and mounting hardware included for both sensor and reflector
• Adjustable sensing range
• Compact size
• Monitoring method: N.C., 10kΩ resistor

Specifications

• Type: Retro Reflective Photoelectric Beam Sensor
• Current Draw: Standby- 70mA@12VDC, Active- 55mA@12VDC
• Sensing Range: 0.5′ to 45′ (0.2 – 14m)
• Operating Voltage: 12-30VDC/AC 60Hz, 100mA
• Reaction time: 10mS
• Light Source: IR LED
• LEDs: Red = Power on
• LEDs: Yellow = Alignment
• Alarm Output: SPDT Relay Output (NO/NC/COM)
• Switching Capacity: 2A@30VAC/VDC
• Operating Temperature; -4º~131º F (-20º~55º C)
• Enclosure: IP66 Waterproof
• Mounting Brackets: Included
