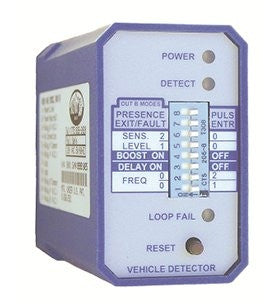

Reno BXC8 Series Compact Loop Detector 240VAC

Harness Required, see Reno Harness

Highlights

Dual Relay Loop Detector 240VAC
Delay Relay Outputs:
Output A: Limited Presence, True Presence TM
Output B: Presence (Duplicates Output A), Pulse-on-Entry, Pulse-on-Exit, Fault Output
Delay Outputs A & B for two seconds
Eight levels of sensitivity selectable from the front panel rotary switch
External DIP switches
Sensitivity Boost for applications where high-bed vehicles might be encountered
Detect Memory feature maintains detection during momentary power interruptions of up to two seconds
Fail LED indicates current loop failures or loop failures that have occurred
Four loop frequencies selectable from the front panel
Super bright LED indicators for power, detect, and loop fail
11-pin Amphenol connector
Fail-Safe or Fail-Secure versions available
2.50” High x 1.55” Wide x 3.50” Deep
