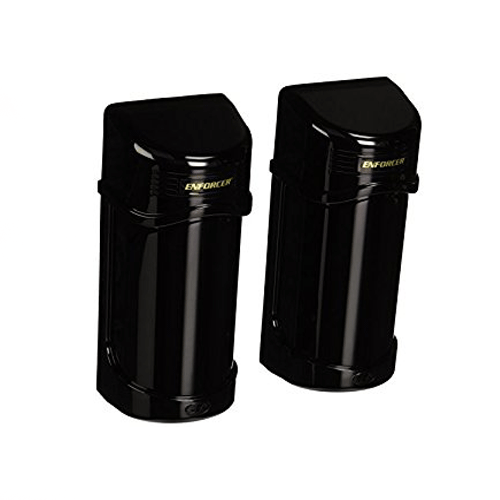

ENFORCER Twin Photobeam Detectors with Laser Beam Alignment

E-960-D90Q is non-monitored

Product Features

• Built-in laser beam alignment system speeds accurate, reliable positioning.
• Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
• Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
• Weatherproof, sunlight-filtering case for indoor & outdoor use.
• Anti-frost system so that beam functions even in extreme conditions.
• Automatic input power filtering with special noise rejection circuitry.
• NC/NO alarm output.
• N.C. tamper circuit included.
• Non-polarized power inputs.
• Quick, easy installation with built-in laser beam alignment system.
• Interruption time adjustable for nearly all situations.

Product Specifications

• Power 11~24VAC/VDC(Non-polarity)
• Detection method Simultaneous break of 2 beams
• Interrupt speed* 50msec~700msec (variable)
• Alarm output NO./NC. relay, 1A@120VAC
• Tamper output NC. switch, 1A@120VAC
• Alarm LED Red LED (Receiver) ON: When an alarm is initiated
• Tuning LED Yellow LED (Receiver) ON: When alignment is successful
• Operation LED Green LED (transmitter and receiver) ON: When power is applied.
• Laser wavelength 650nm.
• Laser output power 5mW.
• Alignment angle Horizontal (+/-)90º, Vertical: (+/-)5º
• Operating temperature -13º~+131º F (-25º~+55º C)
• Case PC Resin
