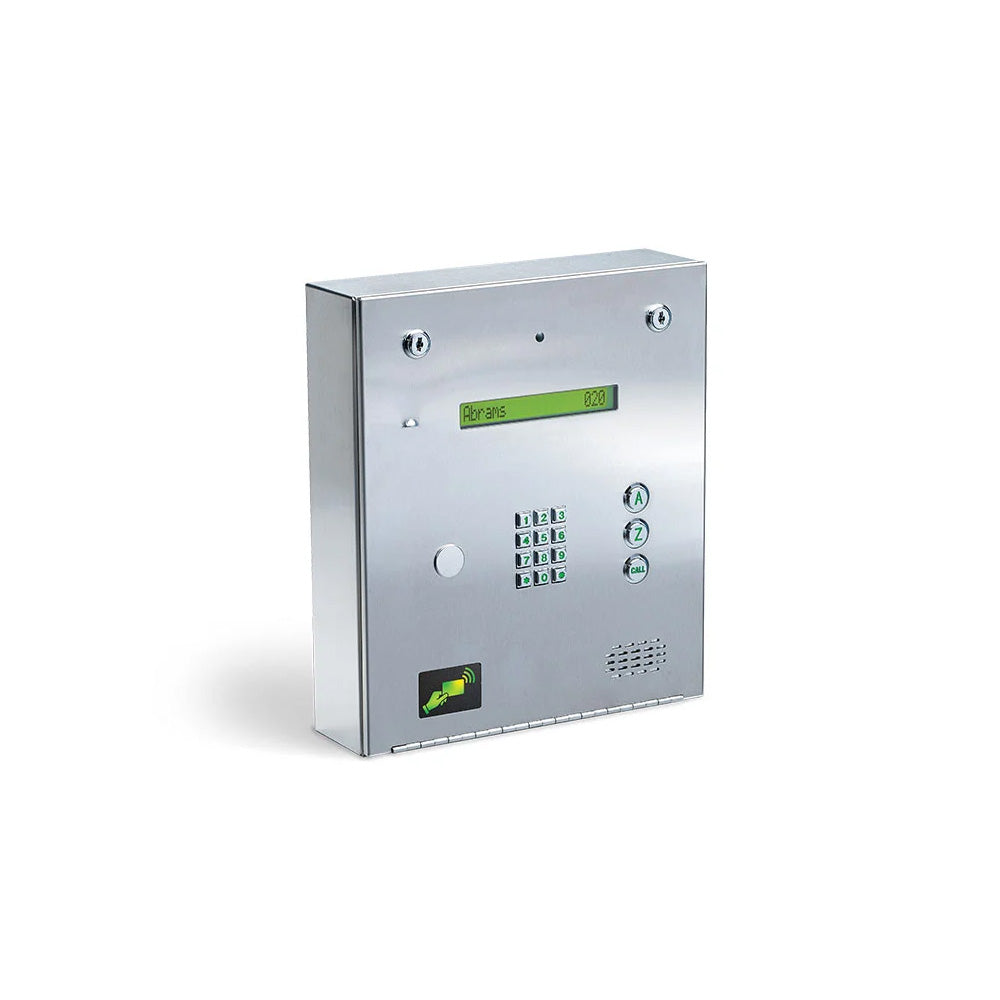

DoorKing 1834 90 Series Telephone Entry System

DoorKing 1834 90 Series Telephone Entry System

The DoorKing 1834 90 Series is the ideal telephone entry solution for properties that require reliable visitor communication without integrated access control. This streamlined system excels in apartment complexes, gated communities, and commercial buildings where telephone entry is the primary need or where a separate access control system is already in place. The enhanced 90 Series housing provides superior weather protection and easy installation of optional accessories, while the intuitive interface ensures effortless operation for both residents and visitors.

Simplified Telephone Entry

• Single-line LCD display with large 1/2-inch characters
• Stores up to 3,000 telephone numbers and names
• Personalized scrolling message when system is idle
• True full-duplex communication for clear conversations
• One-touch CALL button for easy visitor operation
• Large A and Z scroll buttons for quick directory navigation

Enhanced 90 Series Design

• Streamlined one-box housing with modern appearance
• Enhanced locking and weather sealing protection
• Dual locks and tamper alert switch for security
• Easy internal installation of optional components
• LED-lit keypad and buttons for all-weather visibility
• Stainless steel faceplate with galvanized steel sub-plate

Flexible Connection Options

• Multiple communication methods: Cellular, VoIP, or POTS
• DKS cellular service for locations without internet
• TCP/IP adapter compatibility for internet connections
• Traditional POTS line support where available
• Live streaming and real-time activity monitoring

Programming and Management

• Cloud Account Manager:
  • Browser-based programming from any internet device
  • Real-time updates shared across administrators
  • No software installation required
  • Access from laptops, tablets, or smartphones
• Desktop Account Manager:
  • Traditional Windows-based programming software
  • Complete database management capabilities
  • Transaction analysis and reporting tools
  • Import/export functionality

Optional Internal Accessories

• Card Reader:
  • Can be mounted internally for aesthetics
  • Requires separate access control system connection
  • Not integrated with 1834 system functions
• High-Resolution Camera:
  • Color camera kit available
  • Internal mounting capability
  • Additional CCTV equipment may be required
• TCP/IP Adapter:
  • Enables internet and VoIP connections
  • Eliminates need for DKS subscription services
  • Third-party service compatibility

Technical Specifications

System Capacity

• Phone Numbers: Up to 3,000 with names (15 characters max)
• Area Codes: Stores up to 255 area codes
• Entry Codes: Up to 3,000 (4-digit programmable)
• Access Points: Controls 2 hardwired relays
• Transaction Buffer: 8,000 event storage capacity
• Hold Open Zones: 8 programmable time zones

Communication Features

• Full Duplex: True full-duplex communication
• Directory Display: Single-line super-twist LCD
• Character Size: Large 1/2-inch characters for easy reading
• Directory Codes: 1-4 digit programmable codes
• Dialing Capability: 10 and 11-digit dialing
• Live Monitoring: Real-time activity streaming

Electrical Specifications

• Power Supply: 16 VAC, 20 VA transformer included
• Relays: Two Form C dry contact relays
• Memory: EEPROM for reliable data retention
• Compliance: UL 294 compliant, ETL listed
• FCC: DUF6VT-12874-OT-T
• DOC: 1736 4528 A

Environmental and Physical

• Operating Temperature: 10°F to 145°F (-12°C to 62°C)
• Dimensions: 14.75"H x 12.75"W x 3.75"D (375 x 324 x 95 mm)
• Weight: Approximately 15-20 lb (6.8-9 kg)
• Housing: Enhanced 90 Series weather-sealed enclosure
• Faceplate: Stainless steel with galvanized steel sub-plate

Connection Methods

• Cellular 4G-LTE:
  • AT&T service with DKS cellular adapter (1800-080)
  • Ideal for remote locations
  • Subscription required for service
• VoIP/Internet:
  • TCP/IP adapter (1830-185 or 1830-186)
  • Use existing internet connection
  • Support for third-party VoIP providers
• POTS:
  • Traditional telephone line connection
  • Programming limitations apply
  • Modem compatibility not guaranteed

Standard Features

• Large easy-to-use A and Z scroll buttons
• One-touch CALL button for visitor convenience
• Built-in single-line LCD directory display
• LED lighting for keypad and buttons
• Built-in clock/calendar with holiday scheduling
• Database import/export capability
• Hold open time zones for automated access
• Built-in postal lock provision

Optional Accessories

• 1814-200 Stainless Steel Flush Mount Kit
• 1814-180 Stainless Steel Hood or 1814-185 Black Hood
• 2600-584 Heater Kit (recommended below 35°F)
• 1807-012 ADA Compliant Handset Kit
• High-resolution color camera kit
• TCP/IP adapter for internet connectivity

Important Notes

• The 1834 has no integrated card reader input
• Card readers installed in the cabinet require separate access control system
• For integrated card reader functionality, consider the 1835 or 1837 models
• Cloud programming included with DKS connection subscriptions
• Does not support device codes for access control integration

Applications: Large multi-family residential buildings, apartment complexes, college residence halls, gated communities, commercial buildings, industrial sites with separate access control systems, self-storage facilities, and parking management systems.

Perfect for: Properties requiring telephone entry only, locations with existing access control systems, applications where card reader integration is handled separately, and installations prioritizing communication over access control integration.
