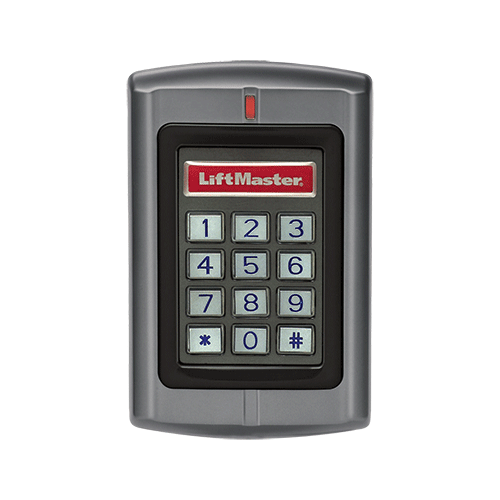

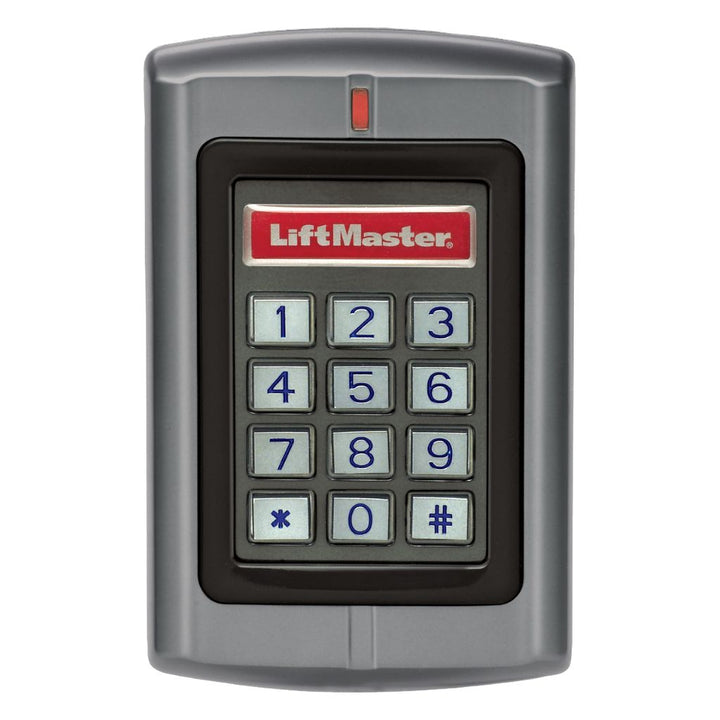

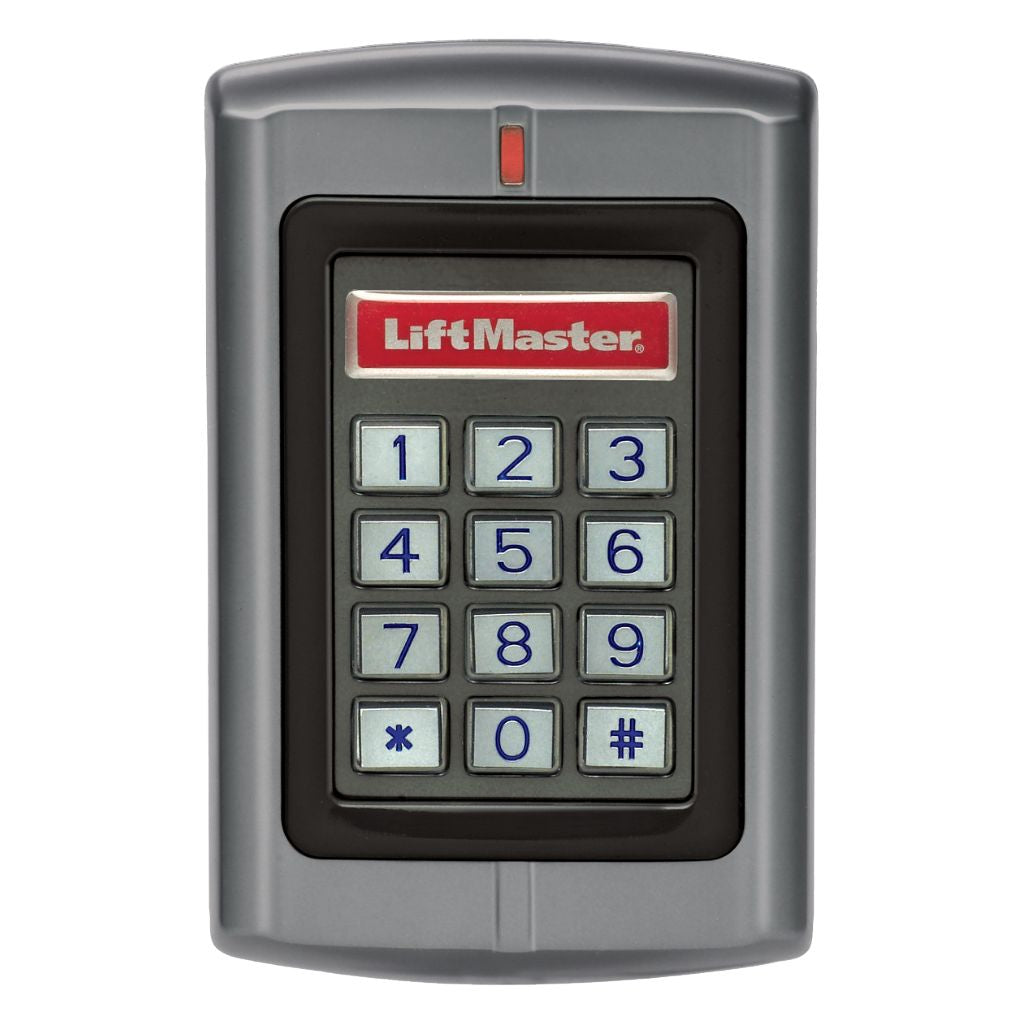

Liftmaster KPR2000 Keypad and Proximity Reader

The KPR2000 is a feature-rich Keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both residential and commercial applications. A secure and vandal-resistant enclosure with a gray powder coated finish creates an upscale and stylish appearance. Cool blue back lighting of the keys assures day or night visibility. The KPR2000 supports a maximum of 2,000 users in multiple access configurations (Card Only, Card or 4 to 8 Digit PIN, or Card + PIN). Supports industry standard 26-bit Wiegand proximity card format, but can also be programmed to communicate with 26-34-bit Wiegand input/control devices.

Specs:

USER CAPACITY: 2000 User ID’s with cards and/or pins
OPERATING VOLTAGE: 12 ~ 24 Vdc or 12 ~ 18 Vac
CURRENT DRAW: ~ 50mA idle; ~ 80mA active
PROXIMITY CARD READER HID: 26 and 30-bit Wiegand Format
ONBOARD PROXIMITY READER: Industry standard 125 kHz
READ RANGE: - PROXIMITY 1 in. - 2.5 in
RELAY ONE: ( NO, NC, Common)
ADJUSTABLE RELAY OUTPUT TIME: 1 - 99 seconds (5 second default)
ADJUSTABLE AUXILIARY ALARM OUTPUT TIME: 0 - 3 Minutes ( 1 minute default)
LOCK OUTPUT LOAD: 2 Amp Maximum
AUXILIARY ALARM OUTPUT LOAD: 10 Amp Maximum
WEATHERIZATION: Indoor/Outdoor Applications (meets or exceeds IP68)
OPERATING TEMP: -20° to 60° C, or -4° to 140° F
OPERATING HUMIDITY: 10% to 90% Non-condensing
ENCLOSURE: Zinc-alloy.

Features:

The KPR2000: supports a maximum of 2,000 users in multiple access configurations (card only, 4 to 6 digit PIN only, or a combination of card and PIN). Supports HID 26 and 30-bit Wiegand proximity card formats
Designed for outdoor environments: with a sealed, weather proof design allowing you to easily mount anywhere
Functions: as a Stand-Alone Controller or in Pass-Through Mode (Wiegand Keypad, Wiegand Proximity Credentials, ASCII Keypad)
Latch Mode: allows you to hold open a door or gate for an extended period of time
Rapid Programming and Block Enrollment capability: “Add” and “Delete” program cards included
Programmable Output Relay: with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike or Solenoid Lock
Capable of networking: two KPR2000s, PPWR to the KPR2000 or to most Access Control Systems
