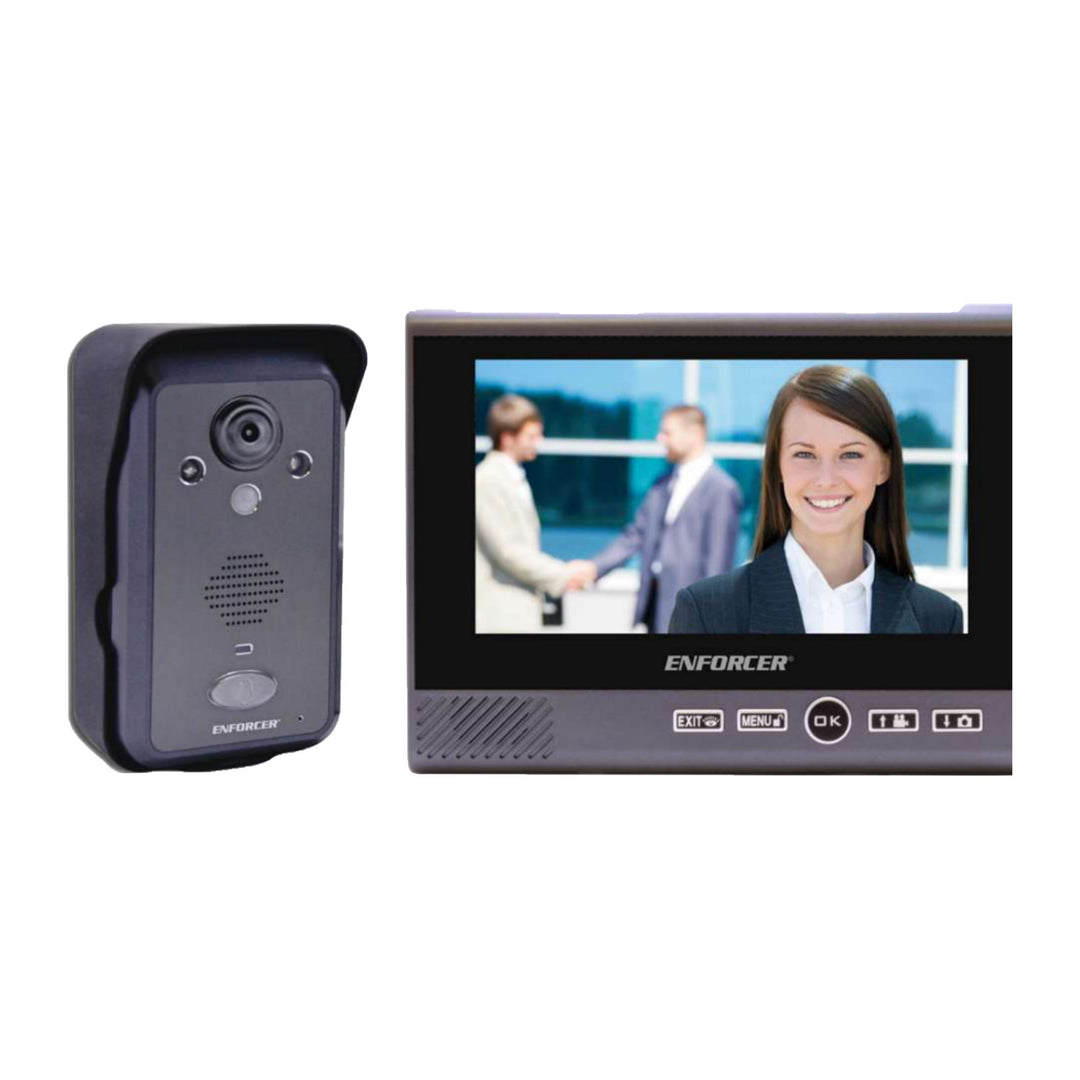

Seco-Larm DP-266-1C7Q Wireless Video Door Intercom

The ENFORCER Wireless Video Door Phone is a convenient and secure way to monitor and control an entryway, such as a door or gate, from up to 492 feet (150 meters)* away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight, wireless LCD monitors† to see who is requesting entry, speak with the caller, take a photo, and decide whether to grant entry. The video door phone can be expanded with up to two additional monitors and one additional camera. If multiple monitors are set up, then the system can also be used as an intercom system between each monitor.

*Line-of-sight range. Actual range may vary depending on the installation and operating environment.

Features

• Wireless operation – camera and monitor can operate from up to 492ft (150m)* away
• Remotely and securely talk to visitors and unlock doors or gates via the monitor
• Monitor can be carried around the premises while talking to the visitor
• Connect up to two additional monitors and one additional camera†
• Intercom calling between paired monitors†
• Camera has built-in IR LEDs for nighttime use
• Camera powered by 9~16 VAC/5~16 VDC
• Camera includes a built-in PIR sensor that activates the camera and takes photos of the visitor when they approach
• Monitor includes a kickstand
• Monitor front door at any time
• Egress input
• 170° wide field of view
• Adjustable camera pan and tilt angle—up to 20° from centerline in any direction—to allow for mounting variations

Monitor Specifications

• IP Rating     Camera Only: IP55 Weatherproof
• Type     Color camera
• Chip     CMOS
• Resolution     640 TV Lines
• Lens     2mm
• Viewing Angle     Up to 20° any direction
• Operating Voltage     9~16 VAC / 5~16 VDC
• Relock Delay     3/6/8 Seconds
• Relay Output     3A@24VAC/24VDC
• Current Draw     Active 300mA@12VDC Standby 15mA@12VDC
• Battery Life     Active ~7 Hours Standby ~60 Days
• Dimensions     3 1/8″x 5 11/16″x1 15/16″ (80x144x50 mm)
• Operating Temperature     14°~122° F (-10°~50° C)

Camera Specifications

• Type     Color camera
• Chip     CMOS
• Resolution     640 TV Lines
• Lens     2mm
• Field of view     170°
• Camera angle adjustment     Up to 20° any direction
• Operating voltage     9~16 VAC / 5~16 VDC
• Relock delay     3/6/8 Seconds
• Relay output     3A@24VAC/24VDC
• Current draw     Active: 300mA@12VDC, Standby: 15mA@12VDC
• Battery life     Active: ~7 hours, Standby: ~60 Days
• IR LED Range     5′ (1.5m)
• IR LED Frequency     940nm
• PIR Detection range     9′ (3m)
• PIR Detection angle     60°
• Dimensions (with bracket)     3-1/8″x5-11/16″x1-15/16″(80x144x50 mm)
• Operating temperature     14°~122° F (-10°~50° C)
