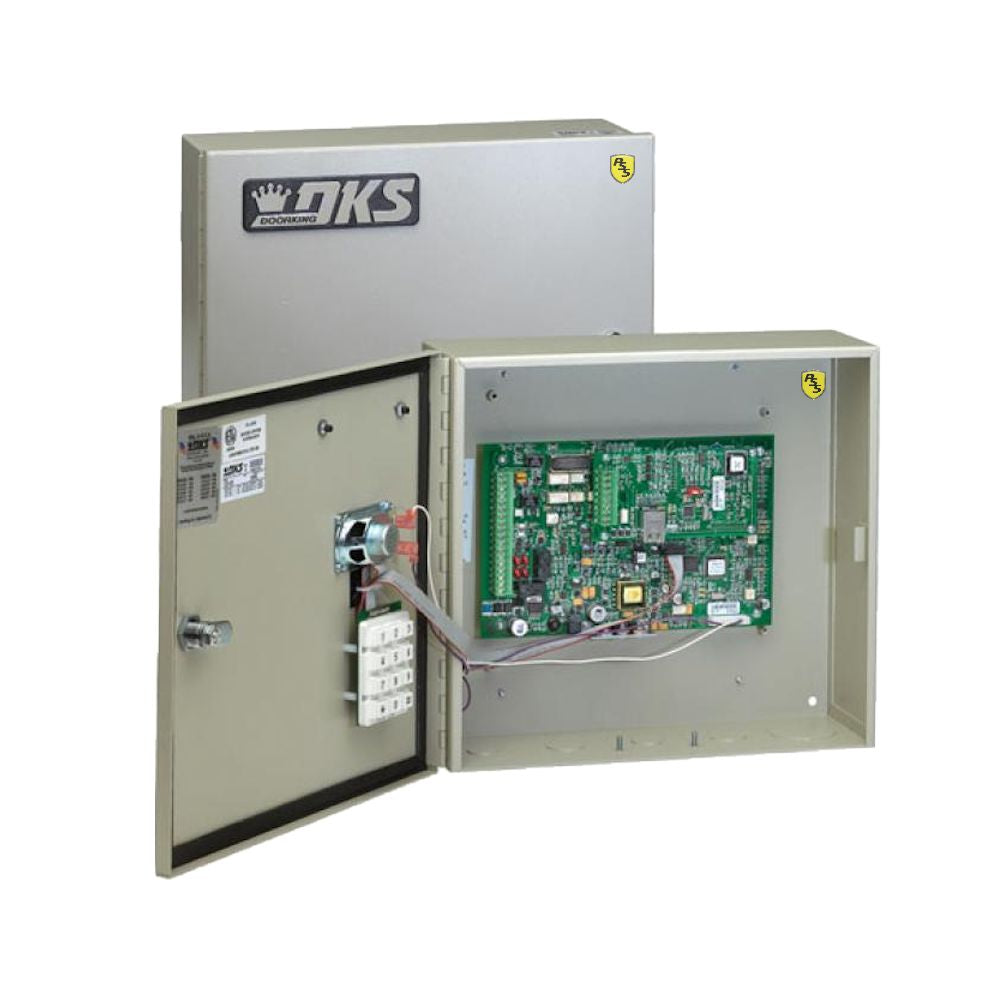

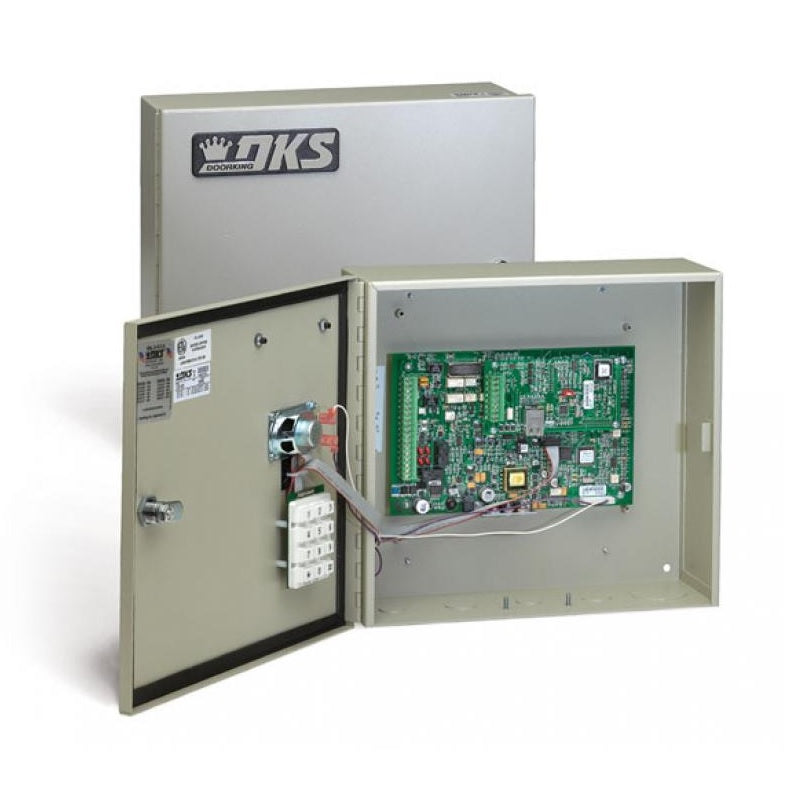

DoorKing 1838-081 Access Controller with 3000 Memory
Want to see who comes in and out and at what time? want to control a few entry points? This 1838-081 multi-door access controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The DKS 1838-081 is a 2-door controller that easily expands to control up to 24 doors with tracker expansion boards. The DKS 1830-081 unit allows Voice and Data connection over either Cellular, internet, or POTS. DoorKing offers easy ways to connect fast using the DKS turnkey connection services.
Features
The 1838 Access Controller can be connected for voice (where applicable) and programming by any of these methods:
- DKS Cellular Option™ – 4G-LTE service (note 1)
- DKS Internet Options™ – VoIP service (note 2)
- DKS IM Server Modem™ – POTS Plain Old Telephone Service (note 3)
Note 1: Requires DKS Cellular Option™ subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires DKS Internet Options™ subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using DKS IM Server Modem™ subscription (required).
- Live Streaming.
- Live Transactions
- Built-in programming keypad.
- Interfaces with 2 card readers - expandable to 24 with tracker expansion board(s)
- Anti-pass back.
- 8000 event transaction buffer.
- 31 Security (permission) levels.
- Database import/export capability.
- Built-in clock/calendar.
- Holiday schedule.
- Hold open time zones.
- Entry code time zones.
- Postal lock input.
Specifications
- Stores up to 3000 user names.
- Stores up to 255 area codes.
- Transaction buffer stores last 8000 events.
- Stores up to 8000 access card codes - dependent on system memory.
- 31 security (permission) levels, 29 programmable with 4 time zones each.
- 8 hold open time zones.
- Three anti-pass back configurations: passive, active and trap.
- Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
- Expandable (note 2) to control up to 24 entry points.
- 4-digit entry codes, one for each telephone number.
- 3 form "C" dry contact relays.
- EEPROM memory.
- Two 16 VAC, 20 VA power transformers supplied.
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4528 A
- Compliant with UL 294. ETL listed.
- Dimensions: 10.25"H x 12.25"W x 4.25"D.
Options
- Memory size: 3000
- Tracker expansion boards.
- Elevator control boards.
