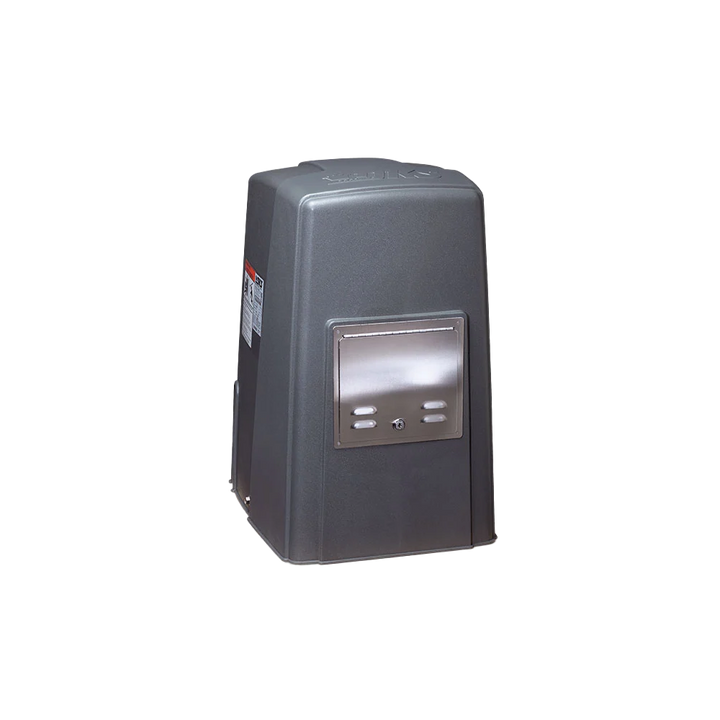

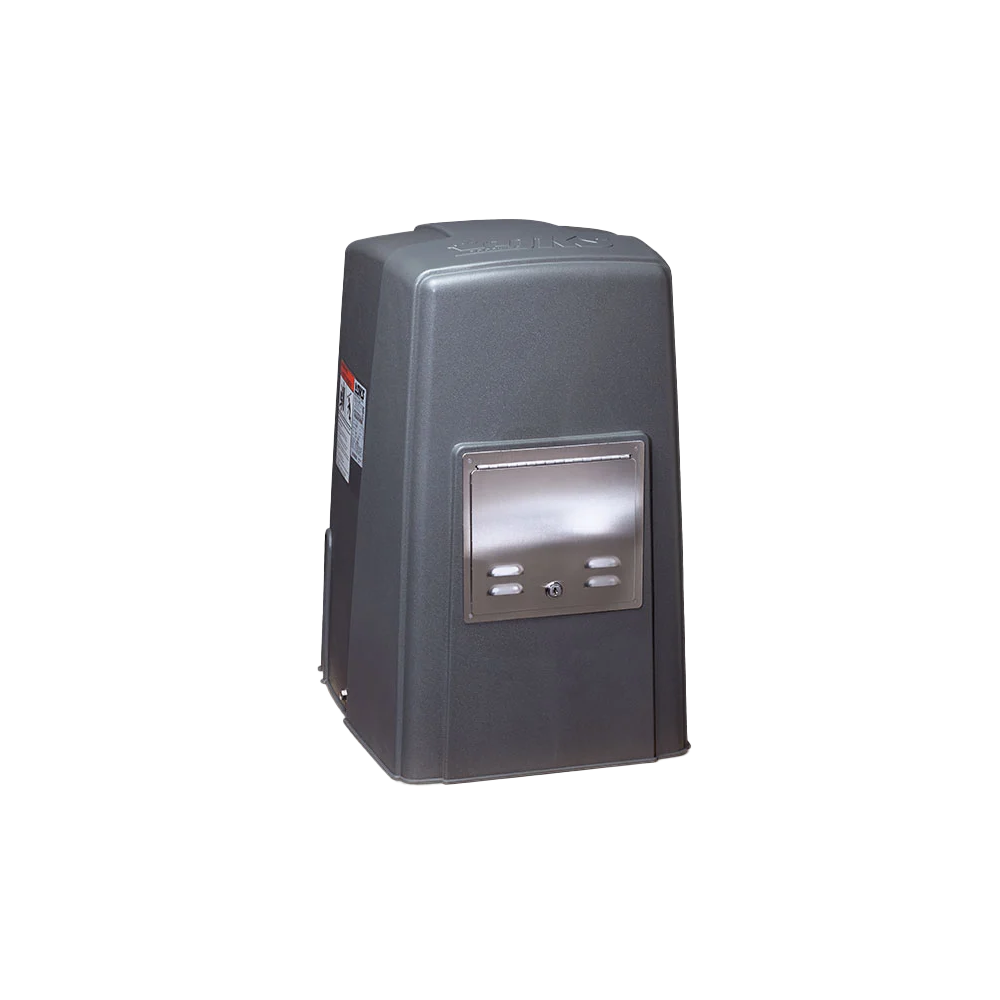

DoorKing 9024 DC Slide Gate Operator with Battery Backup
The DoorKing 9024 DC Slide Gate Operator provides reliable performance with versatile power options in a compact design suitable for residential and commercial applications. This powerful operator keeps running when AC power is lost thanks to built-in battery backup, and is available in both AC-powered (9024-380) and solar-powered (9024-381) configurations. With its heavy-duty construction and advanced features, the 9024 delivers dependable gate automation for virtually any location.
Uninterrupted Operation
- Built-in battery backup provides operation during power outages
- AC model includes two 7.2 Ah batteries (approximately 40 cycles)
- Solar model features efficient 0.0 Amp SBPD circuit for extended battery life
- Optional 18 Ah batteries extend backup capacity to approximately 150 cycles
- Ideal for remote locations where continuous operation is critical
Powerful Performance
- 1/2 HP Quadra Drive DC motor for long-lasting operation
- Handles gates up to 40 feet long and 1,000 pounds in weight
- Operating speed of approximately 1 foot per second
- Belt-driven 30:1 gear reduction system in continuous oil bath
- Heavy-duty steel frame provides strength and quiet operation
Advanced Control Features
- Easy-adjustable chain-driven limit nuts for precise gate control
- Auto-close timer (1-30 seconds)
- Anti-tailgating feature for enhanced security
- Built-in DC power shut-off switch
- Battery protection circuit
- Gate Tracker™ reporting capability for access control integration
Available Models
-
AC-Powered Model:
- SKU: 9024-380
- Input Power: 115/230 VAC (switch selectable), 1.8A/0.9A
- Includes two 7.2 Ah batteries (standard)
- Continuous operation with AC source power
- 115 VAC convenience outlets
- AC power shut-off switch
- Optional 18 Ah batteries for extended backup
-
Solar-Powered Model:
- SKU: 9024-381
- Input Power: 24 VDC, 8.0A
- Includes two 7.2 Ah batteries (standard)
- 0.0 Amp SBPD (Patent Pending) circuit to maximize battery life
- Compatible with DKS solar kit or your own solar panel system
- Ideal for remote locations without AC power access
Specifications
Gate Capacity
- Maximum Gate Width: 40 feet (12.2 m)
- Maximum Gate Weight: 1,000 pounds (453.6 kg)
- Operating Speed: Approximately 1 foot per second (30.5 cm/sec)
Construction
- Frame: 3/16" steel with corrosion protection
- Cover: 1/4" polypropylene
- Drive System: Belt-driven 30:1 gear reduction in continuous oil bath
- Chain: Unit includes 20 feet of #40 roller chain
- Dimensions: 16.75"W x 28"H x 19"D (42.5cm W x 71cm H x 48.3cm D)
- Shipping Weight: 130-150 lb (59-68 kg)
Electrical Features
- Easy-adjustable chain-driven limit nuts
- Auto-close timer (1-30 seconds)
- Selectable loop/reverse input function (stop or reverse)
- Anti-tailgating feature
- Standard normally closed stop circuit
- Built-in DC power shut-off switch
- Battery protection circuit
- Ports for plug-in open and reverse loop detectors (DKS detectors only)
Safety & Compliance
- Requires Type B1 or Type B2 entrapment protection devices in each direction of travel
- Operating Temperature: -10°F to 140°F (-23°C to 62°C)
- Thermostatically controlled heater kit available for freezing temperatures (AC model only)
- Compliant with UL 325 and 991 standards
- ETL Listed
- Suitable for Class I, II, III, and IV applications
Optional Accessories
- Heater kit for cold weather environments (AC model only)
- Steel base plate for post mounting
- 18 Ah batteries (AC model only)
- Solar Kit (includes two 18 Ah batteries and 10 Watt, 24 VDC solar panel)
Note: For operation below freezing temperatures, a thermostatically controlled heater kit is required to prevent batteries from freezing. Heater kit can only be used with AC powered operators. All operators require entrapment protection devices to function. Five-year limited warranty included.
