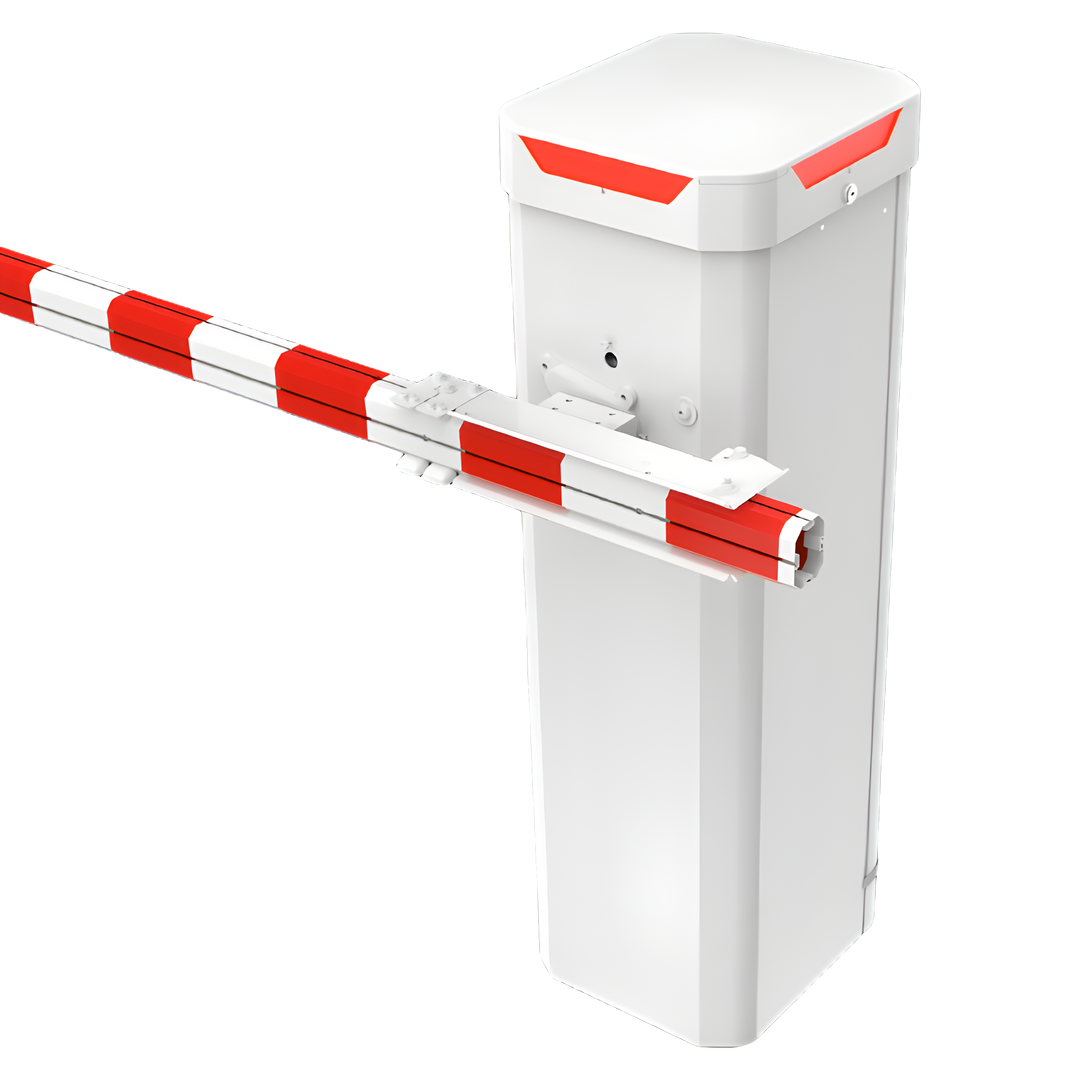

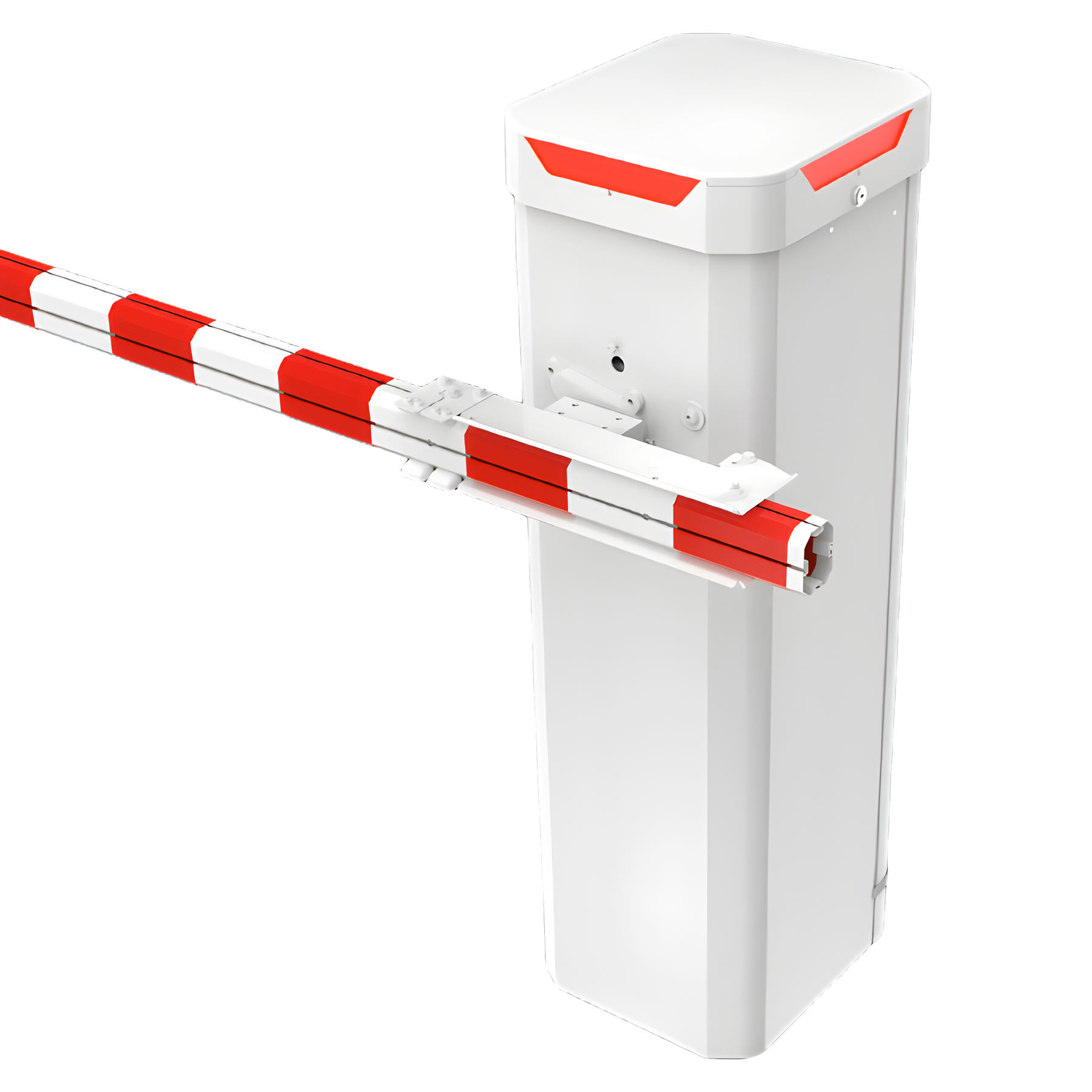

LiftMaster TECHNA CBG24DCW/CBG24DCG Commercial DC Barrier Gate Operator - White or Dark Grey
The LiftMaster TECHNA CBG24DC Commercial Barrier Gate Operator delivers exceptional performance with lightning-fast 2.5-second open/close times for smooth traffic flow management. This next-generation barrier system features a brushless 24V DC motor with direct drive technology, offering continuous-duty operation for demanding commercial and community applications. Available in sleek white (CBG24DCW) or sophisticated dark grey (CBG24DCG), this operator provides both aesthetic flexibility and robust functionality for controlling vehicle access in residential communities, commercial properties, and distribution facilities.
High-Speed Performance
- Ultra-fast 2.5-second open/close time for improved traffic flow
- 24V DC brushless motor with soft start/stop function for smooth operation
- Continuous duty rating for high-traffic environments
- Handles arms up to 14 feet in length
- Certified for UL Usage Class I, II, III, and IV applications
Intelligent Control System
- Color LCD display with intuitive 4-button interface
- Electronic limits easily programmed via LCD interface

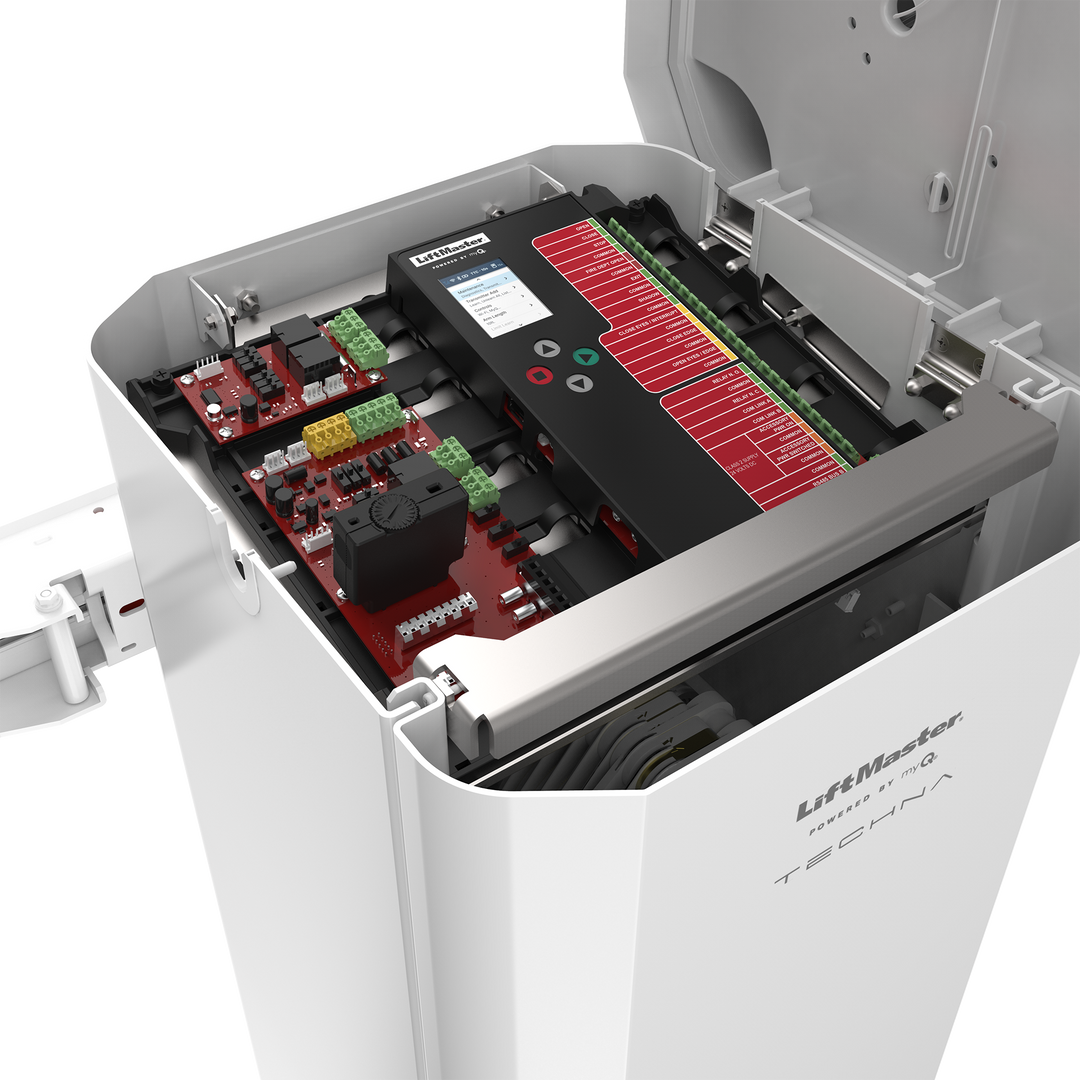

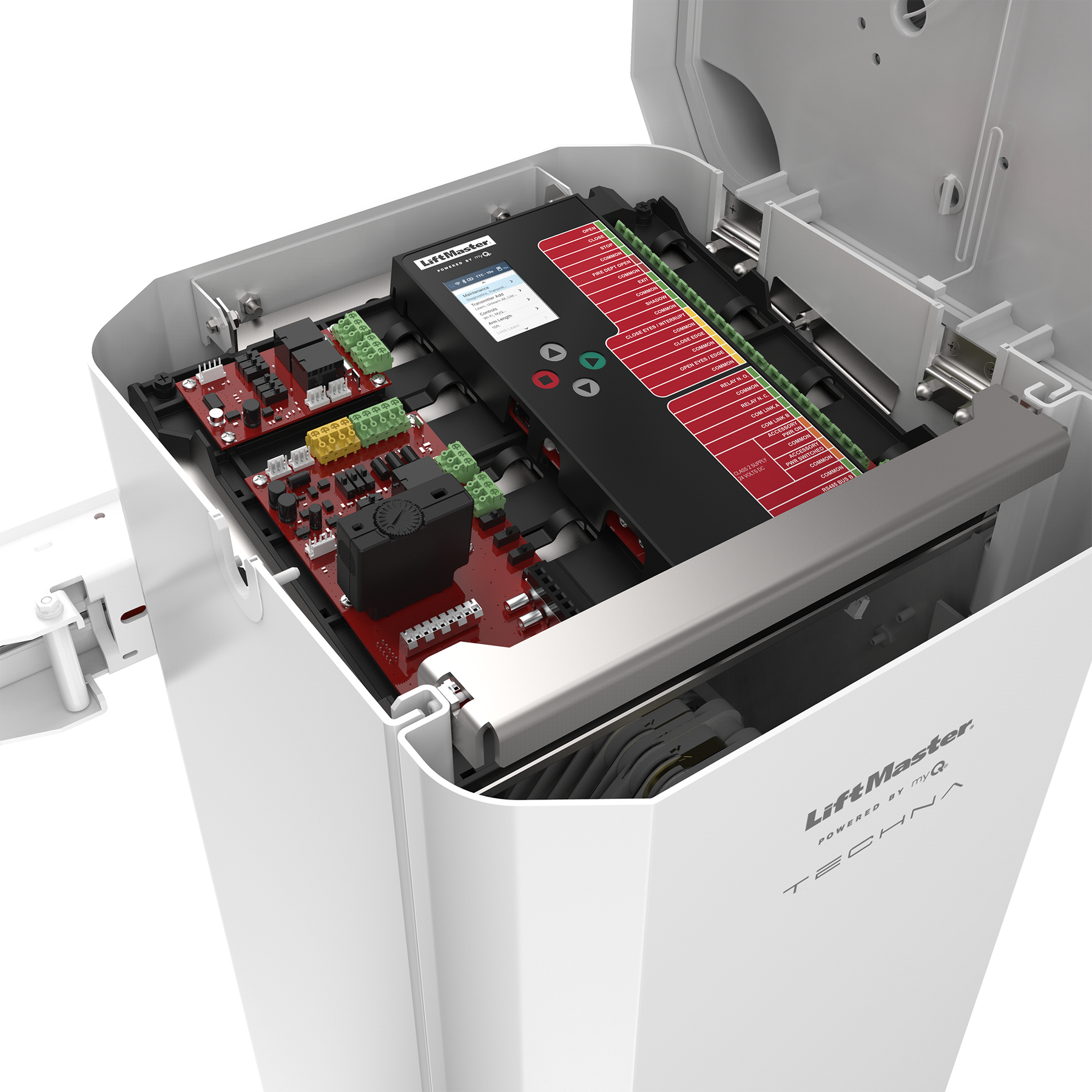

- DC Logic Circuit Board with advanced programming capabilities
- 5 programmable relays (one main board, four auxiliary boards)
- Local log of 50 events correlated to cycle number (unlimited with myQ connection)
Enhanced Safety Features
- Breakaway arm technology minimizes damage from strikes
- Integrated red/green LED tower lighting for clear visual signals
- Fire department compliant design
- Standard battery backup ensures operation during power outages
- Optional wireless edge kit for enhanced pedestrian safety
Durable Construction
- 10-gauge aluminum housing powder-coated for maximum corrosion resistance
- 303.5:1 direct drive gear reduction for reliable performance
- Internal spring counterbalance system eliminates need for external counterweights

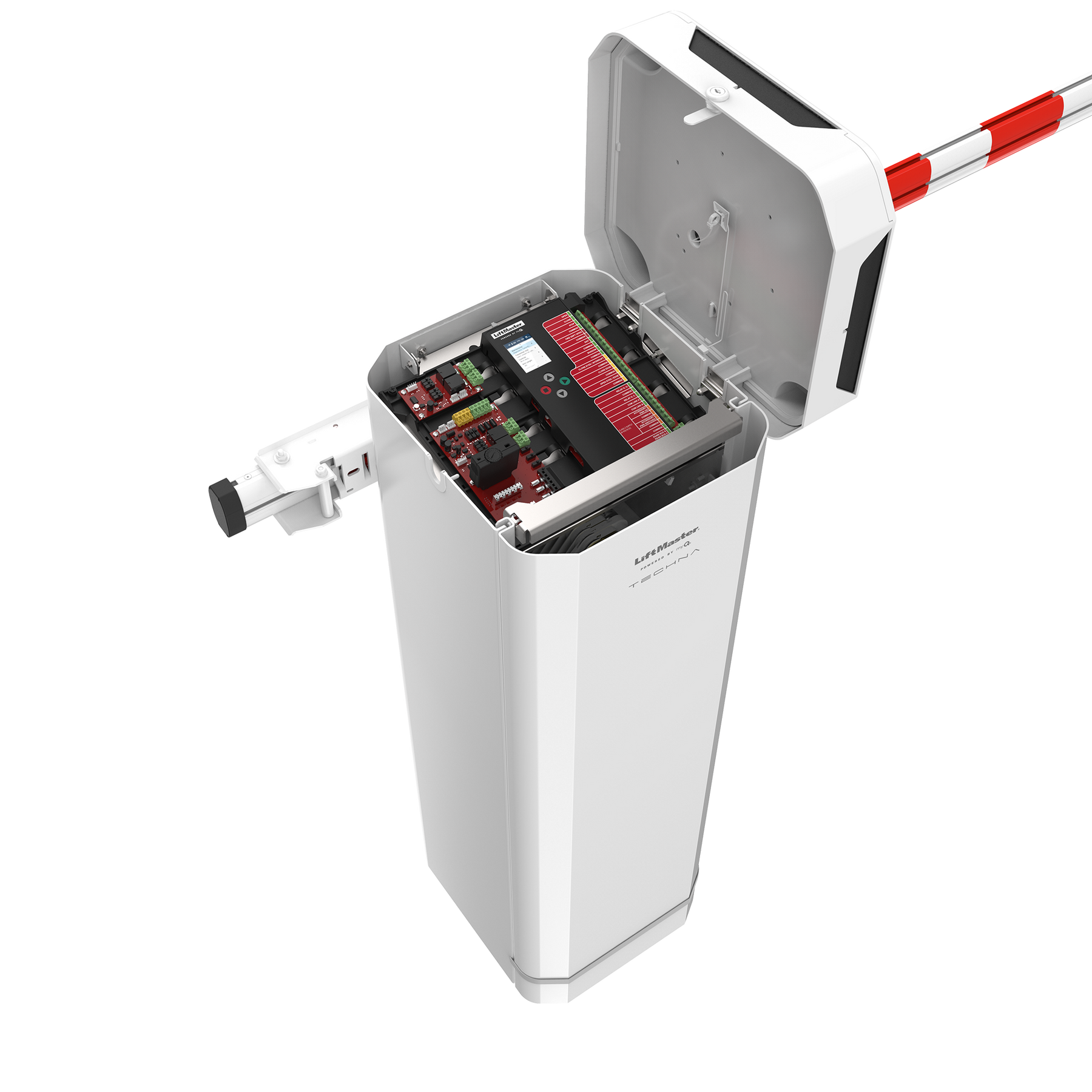

- Removable front cover and hinged lid with lock for secure, easy maintenance
- Rated for temperatures from -4°F to 140°F (-40°F with optional heater)

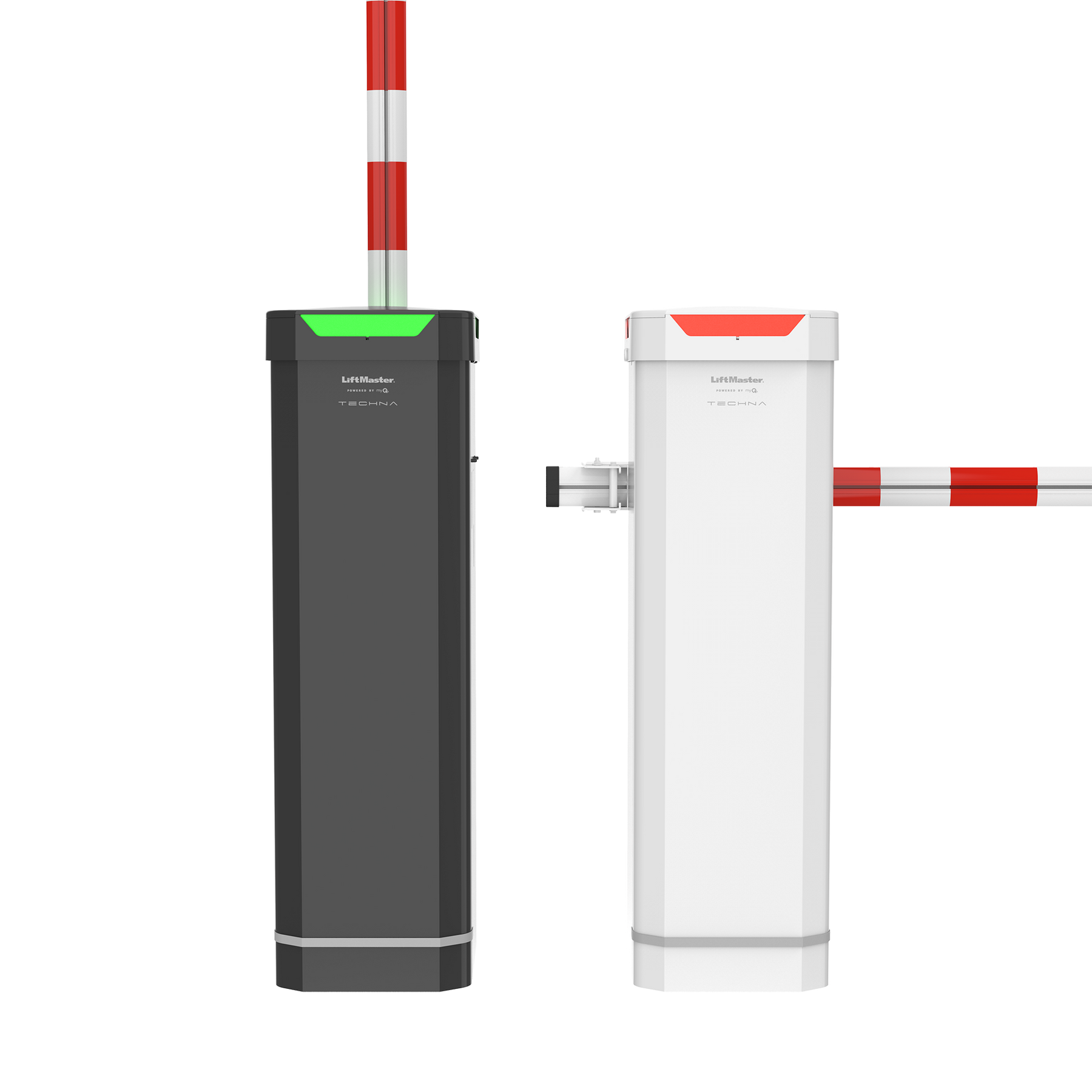

Available Models
-
White Cabinet Design:
- SKU: CBG24DCW
- Clean, modern aesthetic for upscale properties
- Highly visible in various lighting conditions
- Aluminum construction with durable powder coating
-

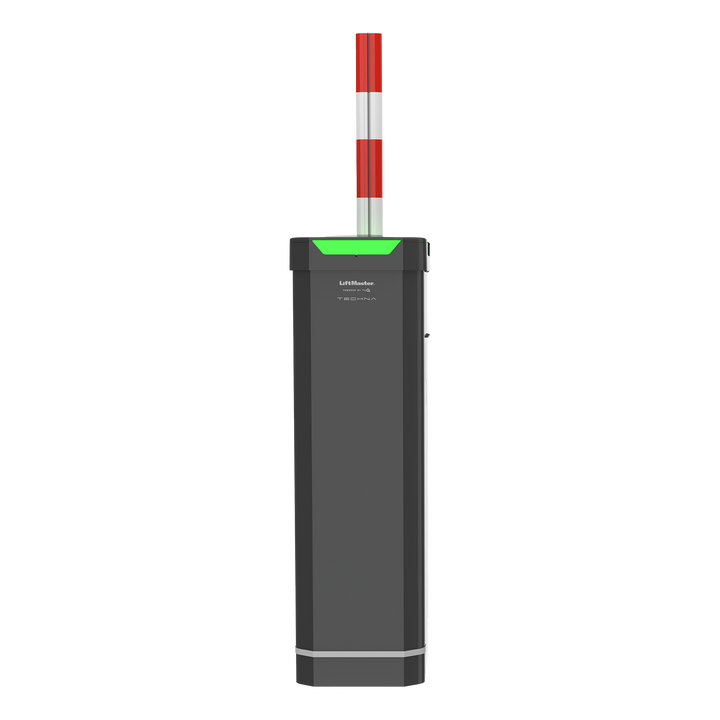

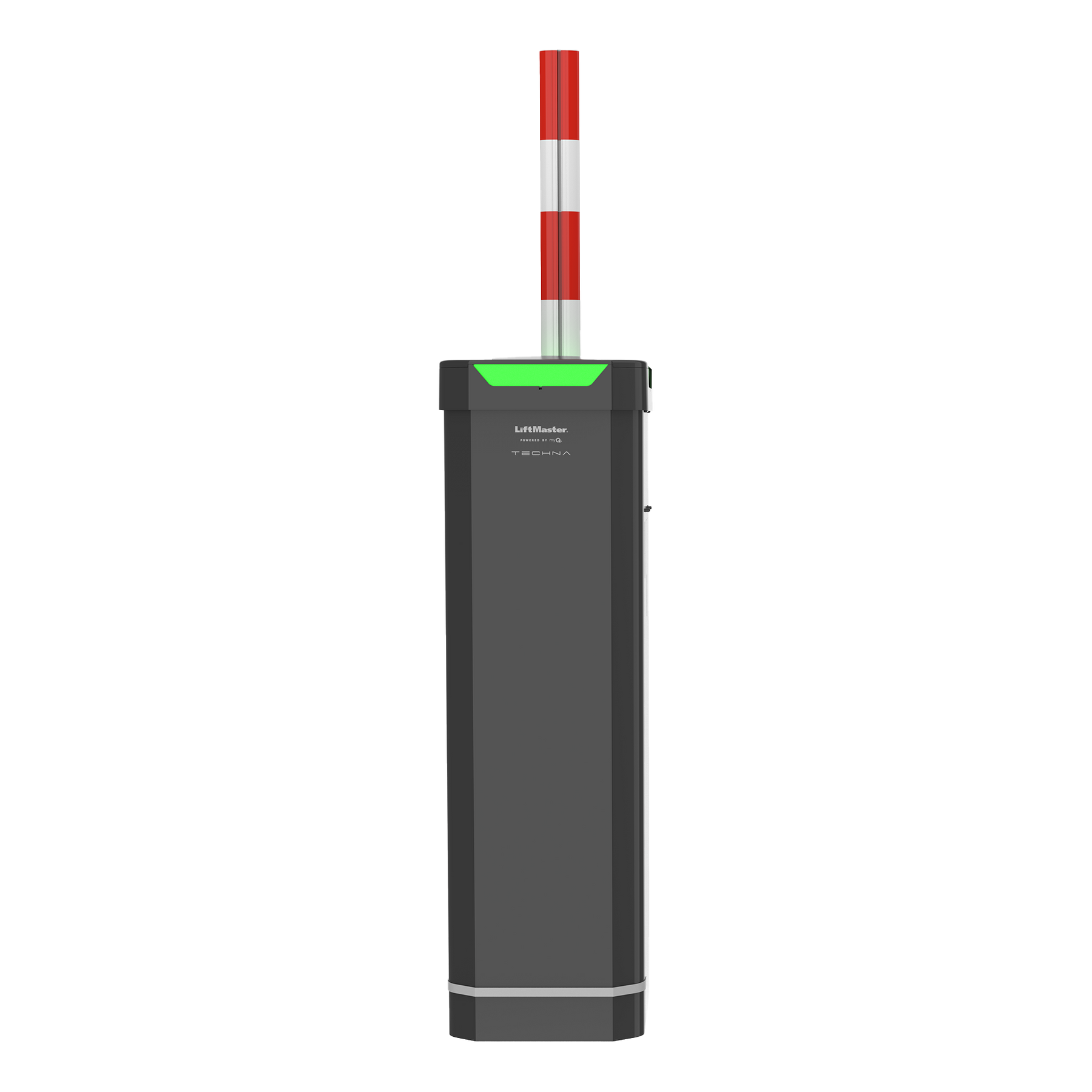

Dark Grey Cabinet Design:
- SKU: CBG24DCG
- Professional, understated appearance
- Reduces visibility of dirt and dust
- Aluminum construction with durable powder coating
Specifications
Gate Capacity
- Maximum Lane Coverage: 14 feet
- Operating Time: 2.5 seconds open/close
- Duty Cycle: Continuous operation
Electrical
- Motor: 24V DC brushless with soft start/stop function
- Input Power: 120VAC/230VAC 1PH
- Optional 3PHCONV kit available for 208VAC/230VAC/460VAC/575VAC input
- Accessory Power: 24VDC, 1A auxiliary output (switched and unswitched)
- Standard Battery Backup: 2 x 12V 7Ah batteries (approximately 100 cycles)
- Optional 33Ah batteries available for extended backup runtime
Construction
- Cabinet Material: 10-gauge aluminum with powder coating
- Tower Lighting: Integrated red/green LED lights programmable via operator display
- Gear Reduction: 303.5:1 direct drive with oil bath gearbox
- Internal Counterbalance: Spring system eliminates need for external counterweights
- Dimensions: 14.8"W x 66.2"H x 18.9"D
Connectivity & Controls
- Display: High-resolution backlit color LCD
- Programming: Visual interface via DC Logic Board's LCD screen
- Radio Receiver: LiftMaster Security+ 2.0, 3-channel receiver (up to 64 remote controls)
- Wireless Pairing: Connect/pair with TECHNA operators and LiftMaster Access Control systems over 900MHz
- Diagnostic Capabilities: Local log of 50 events, unlimited when connected to myQ Facility
- Network Connectivity: Integrated Wi-Fi and Ethernet
Environmental
- Standard Operating Temperature: -4°F (-20°C) to 140°F (60°C)
- With Optional Heater: -40°F (-40°C) to 140°F (60°C)
- Arm Wind Rating: Up to 60mph
Arm Selection
-
Standard Arms:
- LiftMaster BGARM10: 10ft Functional Length Arm
- LiftMaster BGARM14: 14ft Functional Length Arm
-
LED Arms:
- LiftMaster BGARM10LED: 10ft Functional Length Arm with programmable LED lighting
- LiftMaster BGARM14LED: 14ft Functional Length Arm with programmable LED lighting
Recommended Accessories
- LiftMaster HTR: Heater kit for low temperature environments
- LiftMaster BGALARM: Audible pedestrian warning system
- LiftMaster LOOPDETLM: Plug-in loop detector for vehicle presence sensing
- LiftMaster A12330SGLPK: 33Ah battery upgrade for extended backup time
- LiftMaster SP10W12V/SP20W12V: Solar panel kits for installation without AC power
- LiftMaster LMWEKITU: Wireless edge kit for enhanced pedestrian safety
Note: Two-year warranty included. Arms are sold separately and ship in modular sections for easier transportation and installation. Only LiftMaster arms are UL certified for use with this operator.
