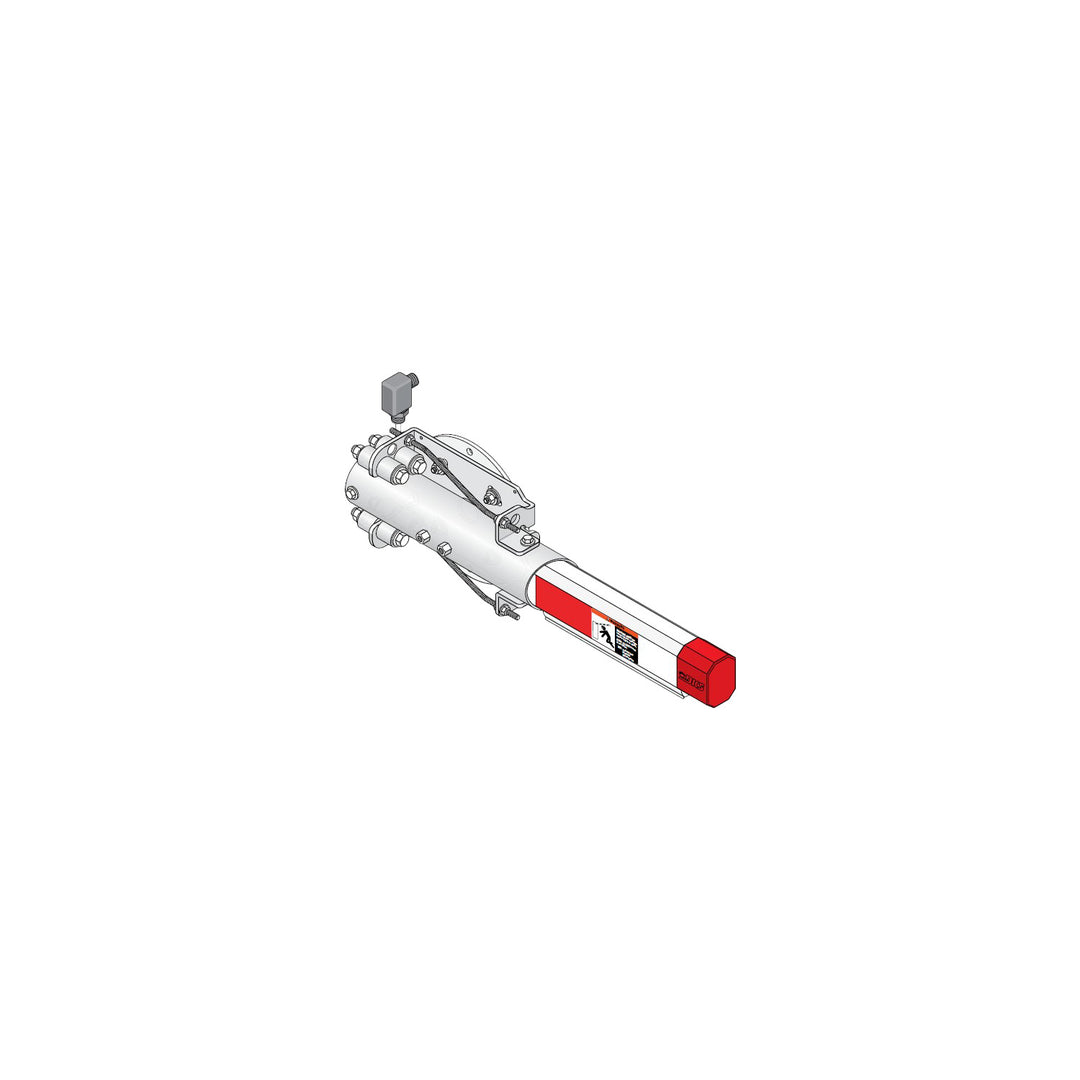

DoorKing 1601 Octagonal Aluminum Breakaway Arm Kit with Reversing Edge

DoorKing Octagonal Aluminum Breakaway Arm Kit with Reversing Edge

This advanced safety kit combines premium octagonal aluminum arms with both breakaway functionality and reversing edge technology for your DoorKing 1601 Parking Gate Operator. Designed with comprehensive protection in mind, this all-in-one solution features dual safety mechanisms: automatic reversal upon contact with obstacles and breakaway capability for more significant impacts. Choose between one-piece or two-piece arm configurations to best suit your shipping and installation requirements.

Key Features

• Complete solution with octagonal breakaway arm, hardware, and reversing edge sensor
• Premium octagonal aluminum construction for enhanced visibility and durability
• Dual safety system: reversing edge technology plus breakaway functionality
• Reversing edge automatically reverses arm upon contact with obstacles
• Breakaway capability allows arm to swing away during more significant impacts
• Easy reset - arm simply snaps back into place after breakaway
• 14-foot arm length suitable for standard traffic lanes
• All necessary mounting hardware included for straightforward installation
• Available in one-piece or two-piece arm options

Available Options

• 14 Ft One-Piece Octagonal Breakaway Arm Kit with Reversing Edge
  • SKU: 1601-555-BRK-REVKT
  • Includes: One-Piece Octagonal Aluminum Arm (1601-555)
  • Includes: Breakaway Hardware Kit (8080-295, formerly 1601-295)
  • Includes: Reversing Edge Sensor (8080-080)
  • Single-piece construction for streamlined appearance
  • Same durability as two-piece when installed
  • IMPORTANT SHIPPING NOTICE: Due to the length exceeding 8 feet, this option incurs significantly higher shipping costs

• 14 Ft Two-Piece Octagonal Breakaway Arm Kit with Reversing Edge
  • SKU: 1601-567-BRK-REVKT
  • Includes: Two-Piece Octagonal Aluminum Arm (1601-567)
  • Includes: Breakaway Hardware Kit (8080-295, formerly 1601-295)
  • Includes: Reversing Edge Sensor (8080-080)
  • Sectional design for easier transportation and handling
  • Simple assembly at installation site
  • RECOMMENDED OPTION: Significantly reduced shipping costs compared to one-piece model

Specifications

Arm Specifications

• Material: Octagonal Aluminum
• Length: 14 Ft (4.3m)
• Available in One-piece (1601-555) or Two-piece (1601-567) construction
• Compatible with plastic arm cover (included with operator)
• Distinctive octagonal profile for enhanced visibility

Breakaway Hardware Features

• Allows arm to swing out of the way upon significant impact
• Simple reset mechanism - arm snaps easily back into place
• Can be configured for breakaway from either side of the cabinet
• All required fasteners and securing hardware included
• Designed to prevent costly arm replacements

Reversing Edge Features

• Pressure-sensitive edge technology detects contact with obstacles
• Triggers immediate arm reversal upon activation
• Weather-resistant construction for reliable outdoor operation
• Pre-wired for integration with gate operator controls
• Provides secondary entrapment protection

Compatibility

• Designed for DoorKing 1601 Parking Gate Operators
• Compatible with models 1601-380, 1601-381, 1601-480, and 1601-481
• For open areas with open vertical clearance
• Can be mounted on either left or right side of roadway

Installation Requirements

• All necessary hardware included in this complete kit
• Professional installation recommended
• Basic electrical and mechanical skills required
• Must be properly connected to operator control board

Available Accessories

• High Wind Bracket Kit (P/N 1601-297) - recommended for areas with strong winds

Note: This advanced safety kit offers dual protection mechanisms for maximum safety and damage prevention. The reversing edge provides protection against minor contacts, while the breakaway functionality offers protection against more significant impacts. For complete barrier gate safety, DoorKing requires the use of appropriate primary safety devices such as in-ground loops or photocells. Always follow manufacturer installation guidelines and safety recommendations to ensure proper system operation and compliance with safety standards.
