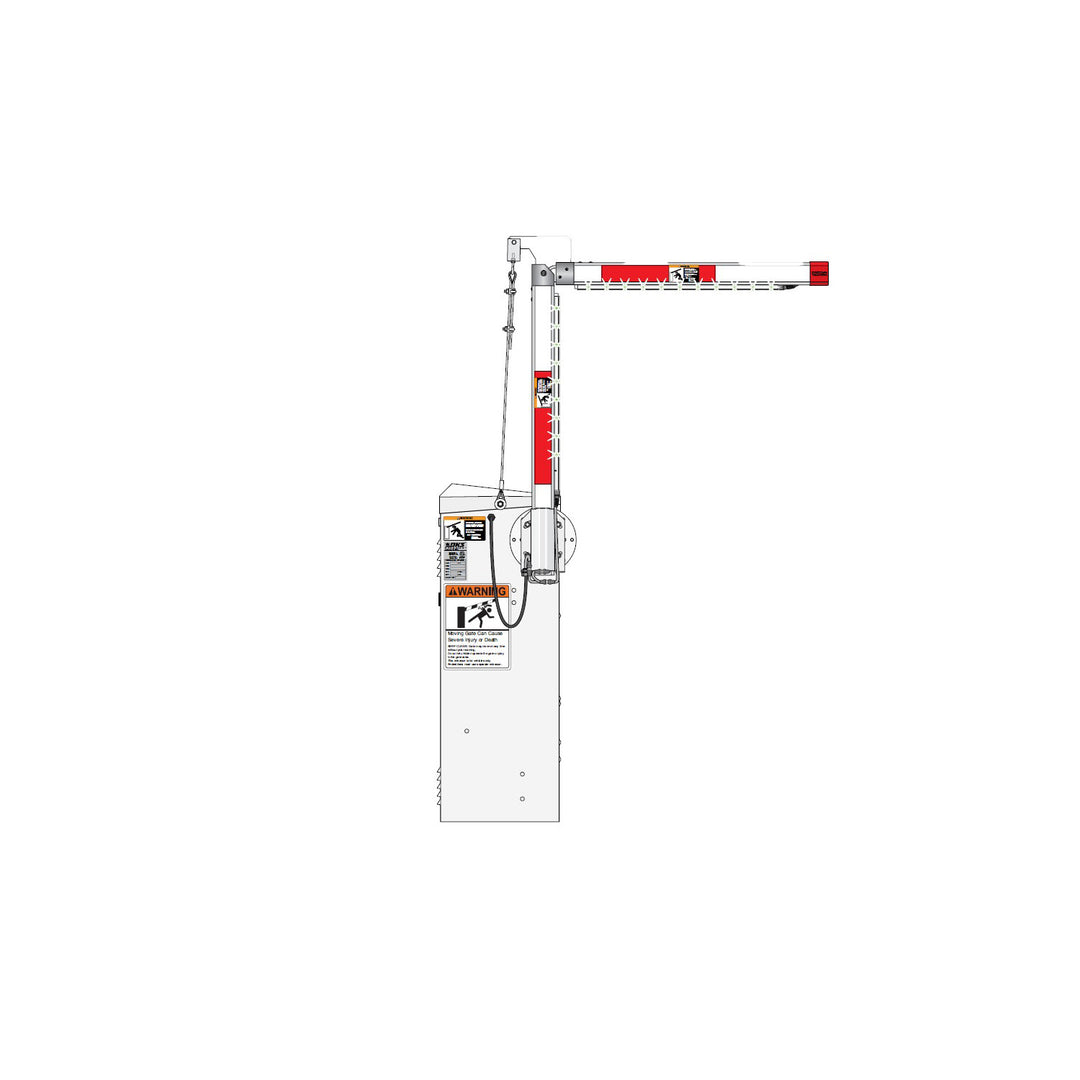

DoorKing 1601 Octagonal Folding Arm Complete Kit with LED Reversing Edge

DoorKing Octagonal Folding Arm Complete Kit with LED Reversing Edge

This comprehensive kit provides the ultimate solution for parking facilities with height restrictions or low ceiling clearance. Combining a 12-foot folding octagonal arm with all necessary hardware, dual LED reversing edges, and protective rubber bumper, this complete package offers advanced safety features and enhanced visibility in a space-saving design. Perfect for parking garages, underground facilities, and other locations with vertical space limitations, this kit includes everything needed for a professional installation with maximum functionality.

Key Features

• Complete solution with folding arm, hardware, LED reversing edges, and rubber bumper
• Specialized folding design for installations with limited vertical clearance
• Premium octagonal aluminum construction for enhanced visibility and durability
• Dual LED reversing edge sensors with red/green status indicators
• 12-foot length ideal for standard traffic lanes
• Integrated LED lighting for improved visibility day and night
• Automatic color change: red when barrier is down, green when up
• Contact-sensitive reversing edge for additional safety
• Rubber bumper protection to reduce wear and impact noise
• All necessary hardware included for complete installation

Kit Components

• Folding Arm and Hardware
  • Two 6ft Folding Octagon Arms (P/N 1601-812)
  • Arm Hardware Kit (P/N 1601-242)
  • Creates 12ft total folding length when assembled
  • Articulated design for operation in limited vertical spaces

• Safety and Protection Components
  • Two Reverse Edge + Red/Green LED Sensors (P/N 1601-822)
  • Rubber Bumper (P/N 8080-089)
  • All necessary mounting hardware included
  • Complete wiring and connection components

Specifications

Arm Specifications

• Material: Octagonal Aluminum with Folding Mechanism
• Extended Length: 12 Ft (3.6m)
• Construction: Two 6ft sections with articulated joint
• Folding Design: Articulated for low-clearance applications
• Distinctive octagonal profile for enhanced visibility

Folding Mechanism

• Precision-engineered hinge system
• Arm folds as it raises to accommodate restricted vertical space
• Automatic folding action integrated with gate operation
• Maintains rigid position when fully extended
• Designed for smooth, reliable performance

LED Reversing Edge Features

• Two reversing edge units included for complete coverage
• Integrated LED lighting system with automatic color changes
• Red LEDs illuminate when barrier is in down/closed position
• Green LEDs illuminate when barrier is in up/open position
• Pressure-sensitive edge technology detects contact with obstacles
• Triggers immediate arm reversal upon activation
• Weather-resistant construction for reliable outdoor operation

Rubber Bumper Specifications

• Durable weather-resistant rubber construction
• Absorbs impact when the arm lowers
• Protects both the barrier arm and gate housing
• Reduces operational noise
• Simple push-on installation

Compatibility

• Designed for DoorKing 1601 Parking Gate Operators
• Compatible with models 1601-380, 1601-381, 1601-480, and 1601-481
• For low-ceiling areas with limited vertical clearance
• Can be mounted on either left or right side of roadway

Installation Requirements

• All necessary hardware included in this complete kit
• Professional installation strongly recommended
• Requires careful adjustment for proper folding action
• Basic electrical and mechanical skills required
• Must be properly connected to operator control board
• Periodic inspection of folding mechanism recommended

Note: This premium folding arm kit offers advanced safety features and visibility for restricted-height installations. The combination of LED lighting, reversing edge technology, and articulated design provides an ideal solution for challenging environments with vertical space limitations. For complete barrier gate safety, DoorKing recommends using appropriate primary safety devices such as in-ground loops or photocells in addition to the reversing edge sensors included in this kit. Always follow manufacturer installation guidelines and safety recommendations to ensure proper system operation and compliance with safety standards.
